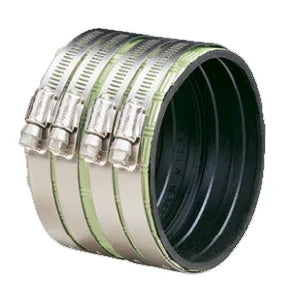

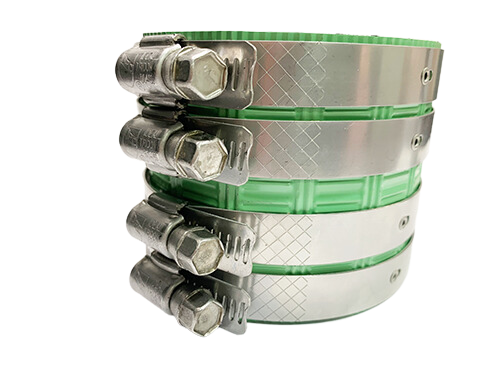

Ideal Industries 6218H8G Super Heavy Duty Green Shield No-Hub Couplings

Product Description

The IDEAL INDUSTRIES 6218H8G Super Heavy Duty Green Shield® No-Hub Couplings are a quality line of heavy-duty couplings designed for structural reinforcement and higher sealing pressures. They feature a wider footprint on the joint and an increased number of high-torque capacity clamps, adding structural rigidity and enhanced sealing pressure.

• Quality line of Heavy Duty couplings
• Structural reinforcement and higher sealing pressures are required
• Wider footprint on the joint

Product Highlights

These couplings provide structural rigidity and enhanced sealing pressure, ideal for applications requiring an added safety margin against leakage. Fully certified to ASTM C1540, ASTM C564 and FM 1680 (Class 1 and 2), and carries IAPMO, and Canadian Standards Association certification.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6218H8G

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• No. of Clamps Per Coupling: 4
