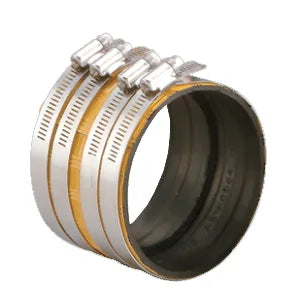

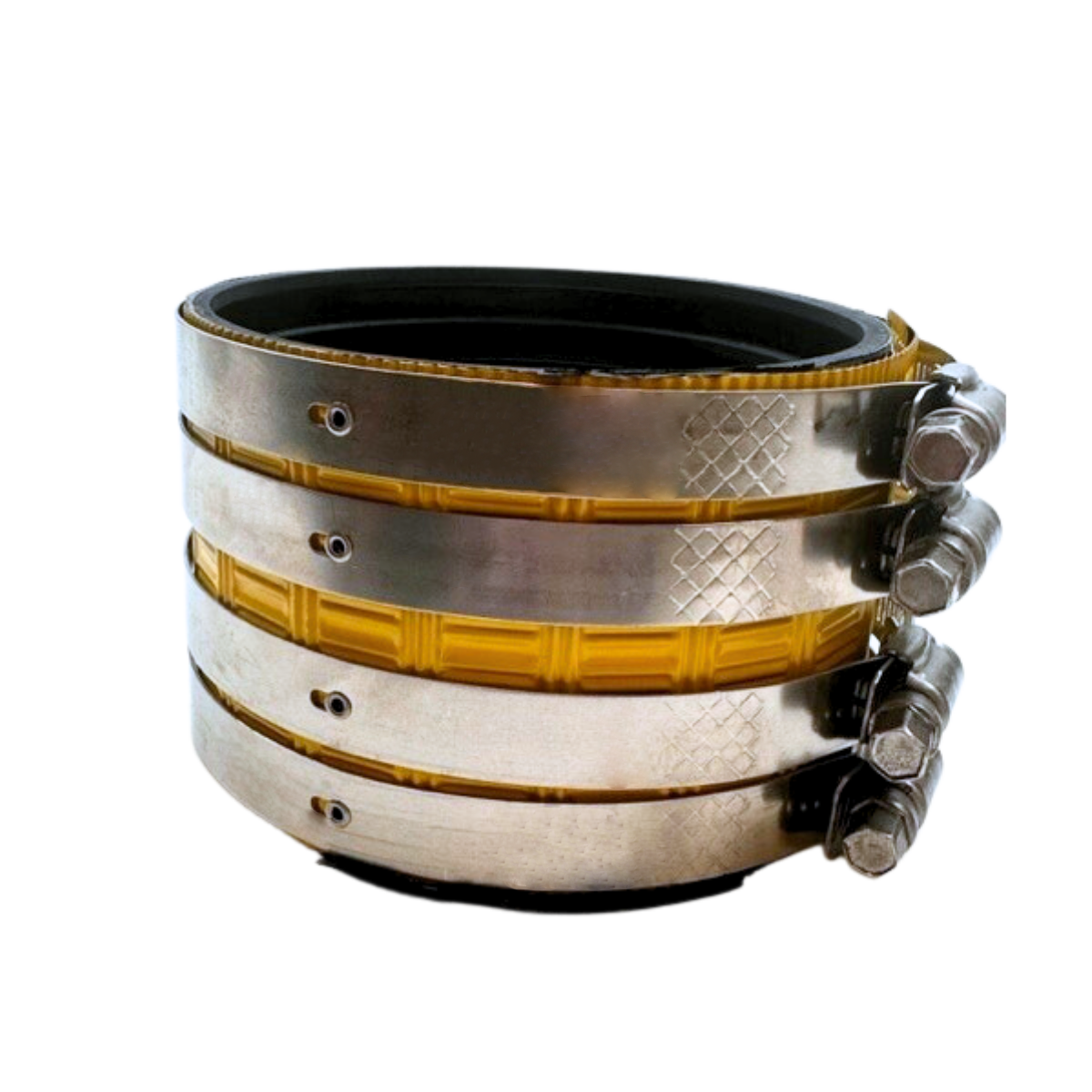

Ideal Industries 6217Y8G Heavy Duty No-Hub Coupling

Product Description

The Ideal Tridon 6217Y8G Heavy Duty No-Hub Coupling provides performance at a lower price point. It is made in the USA and fully compliant with ASTM 564, ASTM C1540, and FM1680 (Class 1 and 2). Carries IAPMO and Canadian Std Association certifications. Installs at 80 in.-lbs with a 5/16", hex-head screw.

• Provides performance of a super heavy-duty coupling at a lower price.
• Uses a 5/16” hex head screw
• Made in USA

Product Highlights

The Ideal Tridon Heavy Duty No-Hub Coupling provides reliable performance and is compliant with industry standards.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6217Y8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 304 SS
• Band Material: 301 SS
• Housing Material: 304 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 80 in-lbs
• Ultimate Torque: 100 in-lbs
• Vendor: Ideal
• Coupling Type: Clamps
• Coupling Category: No-Hub Couplings
• Size (in.): 1-1/2
• Part No.: 6217Y8G
• No. of Clamps Per Coupling: 4
