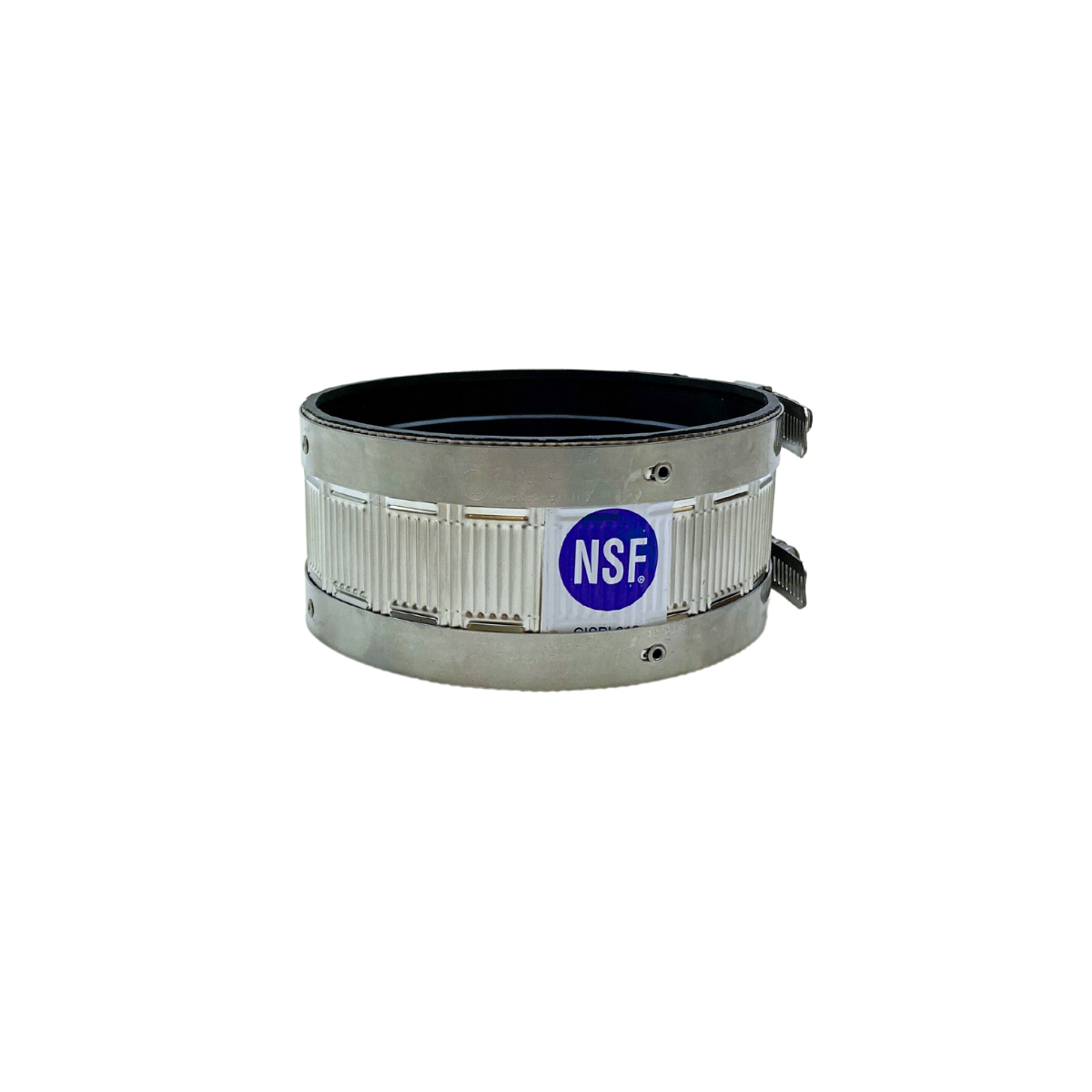

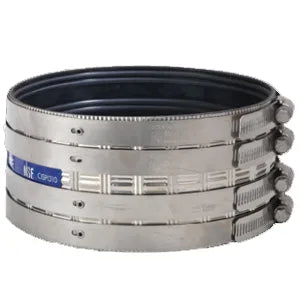

Ideal Industries 6217M8G Standard Duty No-Hub Coupling

Product Description

The IDEAL INDUSTRIES 6217M8G is a standard duty no-hub coupling, made in the USA. This coupling serves as a cost-effective alternative where structural reinforcement isn't a primary concern. It connects no-hub cast iron pipe and is fully compliant with ASTM 564, CISPI 310, and ASTM C1277 standards.

• Made in USA
• High quality low cost alternative
• In full compliance with ASTM 564, CISPI 310 and ASTM C1277

Product Highlights

This coupling is certified by IAPMO, Canadian Standards Association, and NSF, ensuring quality and compliance.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 6217M8G
• Country of Origin: USA

Technical Specifications

• Shield Material: 301 SS
• Band Material: 301 SS
• Housing Material: 301 SS
• Screw Material: 305 SS
• Eyelet Material: 300 SS
• Gasket Material: ASTM C564 Compliant
• Installation Torque: 60 in-lbs
• Ultimate Torque: 75 in-lbs
