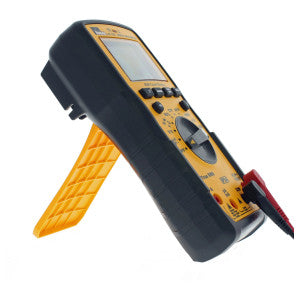

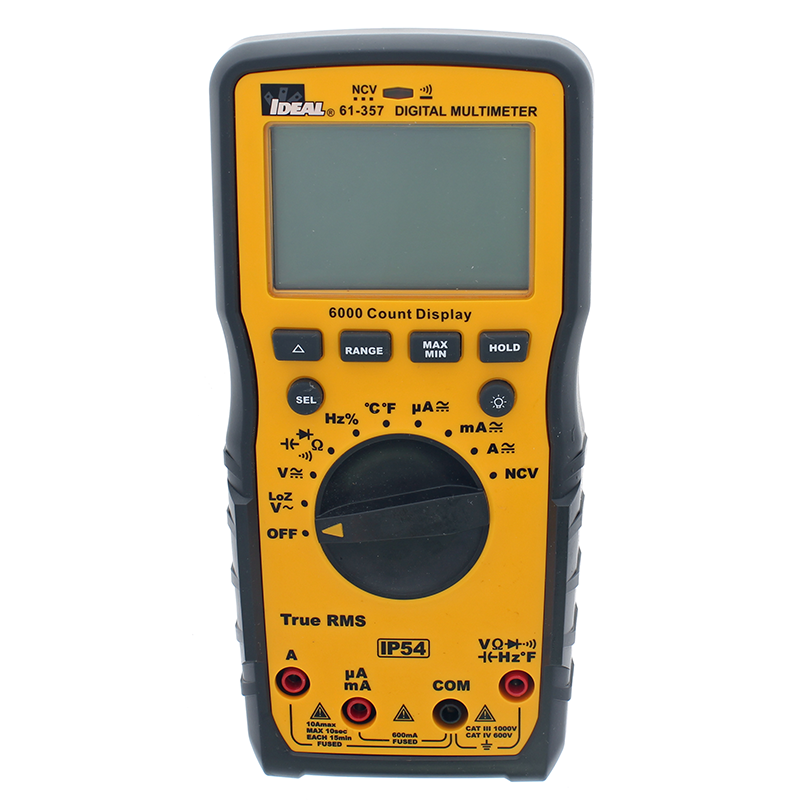

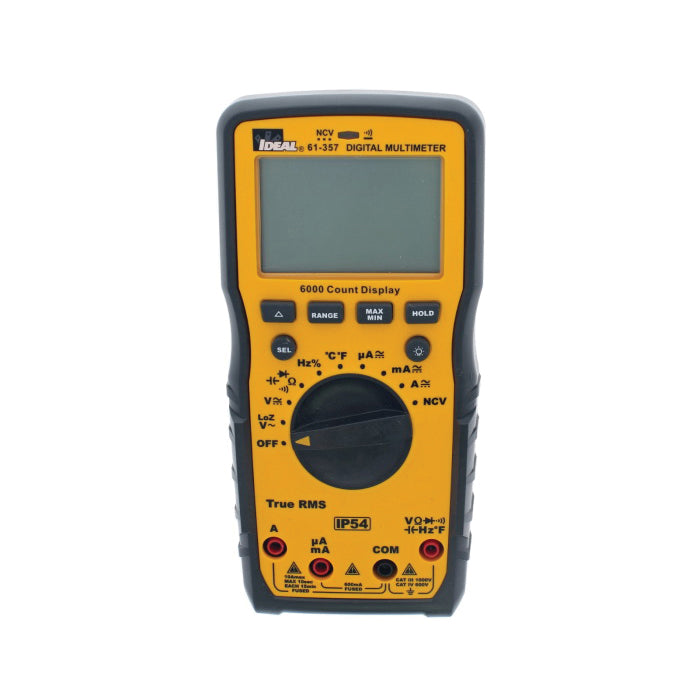

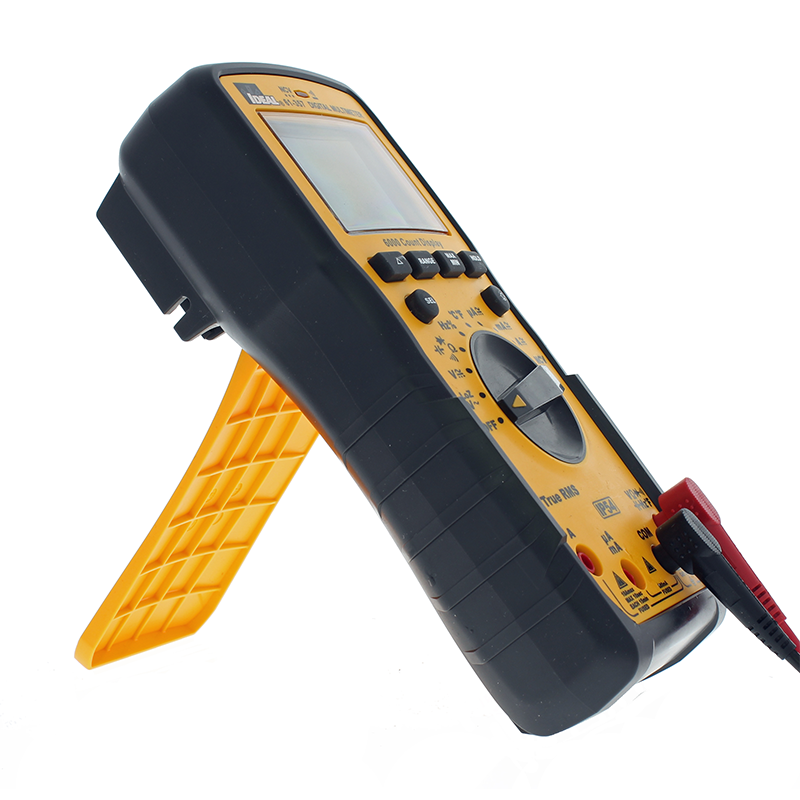

Ideal Industries 61-357 1000V TRMS MM 6K Ct Display

Product Description

The IDEAL INDUSTRIES 61-357 Digital Multi Meter is a CAT IV 600 CAT III 1000V rated auto ranging true root mean square (TRMS) digital multi meter. It measures up to 10 Amps AC and DC current and up to 1000V AC and DC. It also measures LoZ AC V, frequency, resistance, continuity, capacitance, and diodes and temperature via a K-Type thermocouple.

• CAT IV 600 CAT III 1000V rated
• Auto ranging true root mean square (TRMS)
• Measures up to 10 Amps AC and DC current

Product Highlights

This digital multimeter features non-contact voltage detection, a digital readout with analog bargraph display, and audible tones for various alerts. It includes a rubber boot, hanging strap mount, and storage pouch.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 61-357
• Country of Origin: China

Technical Specifications

• Brand: Ideal Industries
• Manufacturer: Ideal Industries
• Meter Type: Digital Multimeter
• Category Rating: CAT IV 600 CAT III 1000V
• Current Measurement: Up to 10 Amps AC and DC
• Voltage Measurement: Up to 1000V AC and DC, LoZ (low impedance) AC V
• Other Measurements: Frequency, resistance, continuity, capacitance, diodes, temperature (?F/?C)
• Non-Contact Voltage Detection: 40V to 600V
• Display: 6000 Count Backlit LCD
• Audible Tones: Voltage above 30 volts, continuity, NCV sensing
• Power Source: 3 1.5V AAA Batteries
• Accuracy: +/-1.5% + 5 Voltage, +/-2.5% + 5 Current
• Amperage Rating: 10 A
• Application: Measures AC/DC Current, AC/DC Voltage, Lo Z, Frequency, Resistance, Continuity, Capacitance, Diodes, Temperature and Senses AC Voltage
• Battery Type: (3) 1.5 V AAA Alkaline
• Capacitance: 6000 uF
• Diode Test: Yes
• Enclosure: IP52
• Frequency Rating: 10 to 9990 Hz
• Includes: Soft Case, Test Leads, Batteries and K-Type Thermocouple
• Measuring Range: 1000 VAC/VDC, 6000 m VAC/VDC
• Resistance: 60 MOhm
• Temperature Rating: -40 to 1832 deg F
• Type: Auto Ranging
• Voltage Rating: 1000 VAC/VDC
• Display Type: LCD & Analog
• Resolution: 1 V, 0.01 A
• Safety Rating: Cat IV 600 V, Cat III 1000 V
• Part Number: 61-357
• Product Type: Digital Multimeter
• Number of Pieces: 1 x Multimeter, 3 x 1.5V AAA Batteries, 1 x Soft Case, 2 x Test Leads, 1 x K-Type Thermocouple
• Packaging: Retail
• Measurement Standard: CAT III / CAT IV
• Functions: Measures AC and DC, Resistance, Continuity, Diodes and Test Batteries
• Features: UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter with Analog Bargraph on Display
• AC Voltage: 1000V
• DC Voltage: 1000V
• Current: 10A
• Voltage: 1000V
• Frequency: 10 Hz - 9.99 KHz
• Batteries: 3 x 15V AAA
• Temperature Range: -40 - 1832°F / -40 - 1000°C
• Short Description: IDL61-357 1000V AUTO RNG TRMS 6K CT DISPLY MM NCVT TMP & LOZ IDEAL INDUSTRIES
• Bar Graph: Yes
• Item Name: Digital Multimeter
• AC Amps: 10 Amp
• Continuity: = 10 Ohm
• Input Diode Test: 0.5 - 0.8 Volt
• Standards: cULus Certified, CE Marked, RCM, CAT IV 600 Volt, CAT III 1000 Volt Safety Rating, UL 61010-1, 3rd Edition, May 11, 2012, Revised, CSA Certified C22.2 No. 61010-1-12, 3rd Edition, Amendment 1:2018, Revision Dated, IEC 61010-2-033: 2019
• AC Volt: 1 Volt
• DC Volt: 1 Volt
• AC Current: 0.01 Amp
• DC Current: 0.01 Amp
• Resistance (Ohms): 60 MΩ
• AC Voltage (V) ARMS: 1 Volt
• Diode Test (V): 0.001 Volt
• Continuity (Ohms): 0.1 Ohm
• IP Rating: IP52
• Input Auto-V LoZ: Yes
• DC Amps: 10 Amp
• Humidity: 80% at 32 to 86 deg F, 75% at 86 to 140 deg F, 45% at 104 to 122 deg F
• Drop Protection: 6.6 ft
• Duty Cycle: No
• AC Current (Amps): 10A
• Audible Continuity: Yes
• Auto Power Off: Yes
• Auto Ranging: Yes
• Data Hold: Yes
• Low battery Indication: Yes
• Measurement Functions: Current, voltage, resistance, continuity, capacitance, frequency, diodes, LoZ
• True RMS (TRMS) Measurement: Yes
• Temperature Measurement: Yes
• Backlit Display: Yes
• Data Logging: Yes
