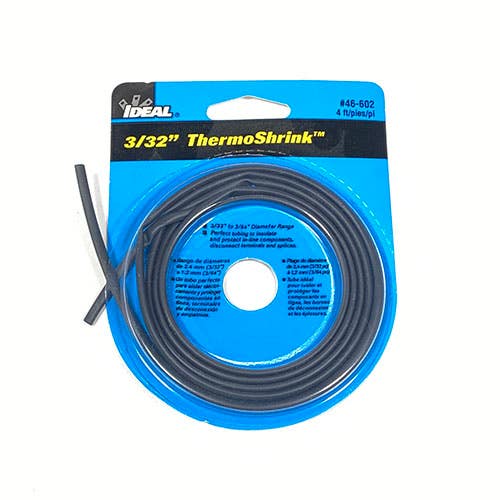

Ideal Industries 46-602 Heat Shrink Tubing Disk 4 feetL, Thermo-Shrink Thin-Wall, 14-12, AWG 3/32 inches ID

Product Description

The IDEAL INDUSTRIES 46-602 heat shrink tubing disk is a thermo-shrink thin-wall, with a 3/32" inner diameter. This polyolefin material electrically insulates and protects in-line components, disconnect terminals, and splices. It is suitable for bundling wires for flexible, light-duty harnesses. The tubing is flame-retardant and resistant to common fluids and solvents.

• Electrically insulates and protects in-line components
• Flame-retardant and flexible
• Resistant to common fluids and solvents

Product Highlights

This heat shrink tubing provides electrical insulation and protection for various applications, including wire bundling and component protection.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 46-602
• Country of Origin: China

Technical Specifications

• Type: Thin-Wall
• Brand: Ideal Industries
• Length: 4 Foot
• Material: Polyolefin
• Sub Brand: Thermo-Shrink®
• Thickness: 0.017 IN
• Shrink Ratio: 2:1
• Inside Diameter: 3/32 IN
• Temperature Rating: -55 to 125 degrees C
• Dielectric Strength: ASTM D 150, 20 KV/MM
• Heat Shrink Type: Thin-Wall
• Recovered Wall Thickness: .017 in
• Elongation: 600%
• Inner Diameter Expanded (metric): 2.4 mm
• Inner Diameter Recovered (metric): 1.2 mm
• Minimum Cable Size: 14 AWG
• Minimum Shrink Temperature: 70°C
• Tensile Strength: 14 Mpa
• UV Resistant: Yes
• Extended Length: 4 ft
• Max. cable range: 12 AWG
• Operating temperature: -55°C to +125°C
• RoHS compliant: RoHS compliant
• Sheath Color: Black
• Heat Shrink Ratio: 2:1
• MPN: 46-602
• Item Length: 4 ft
• UPC: 783250466023
• Wire Size: 2.08 mm
