Ideal Industries 46-403 Thermo-Shrink Underground Splice Kit 1/0 AWG-250KCMIL, AL/Cu

Product Description

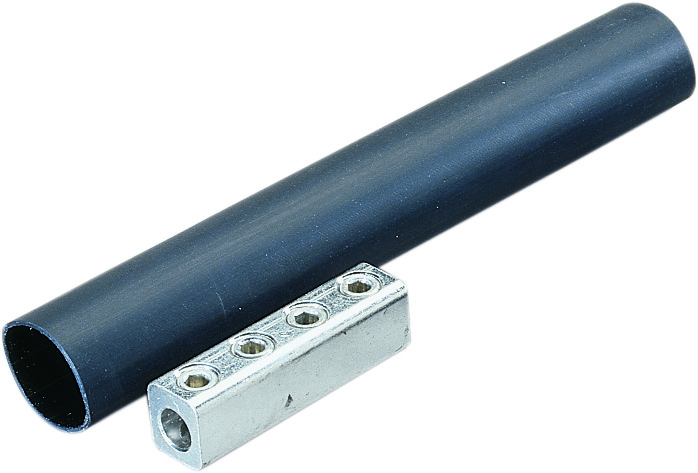

The Ideal Industries 46-403 is a Thermo-Shrink Underground Splice Kit designed for 1/0 AWG to 250 KCMIL aluminum and copper cables. This kit is ideal for direct burial applications. It can handle a voltage rating of 600 Volts and operates at temperatures up to one hundred five degrees Celsius, ensuring reliable performance.

• Direct burial rated for underground installations.
• Heavy-wall heat shrink tubing includes an adhesive liner.
• Compatible with aluminum and copper cables.

Product Highlights

This splice kit is UV resistant and meets the 2005 NEC Code 110-14(B) requirements, offering enhanced safety and compliance.

Product Information

Standard Information

• Brand: Ideal Industries
• Manufacturer Part Number: 46-403

Technical Specifications

• Cable Size: 1/0 AWG - 250 KCMIL
• Voltage Rating: 600 Volt
• Operating Temperature: One hundred five degrees Celsius
• Material: Polyolefin
• Dimensions: Thirteen and one half inches long x Four and one half inches wide x Three and one half inches high
• UPC: 78325046403
• Sub Brand: Thermo-Shrink
