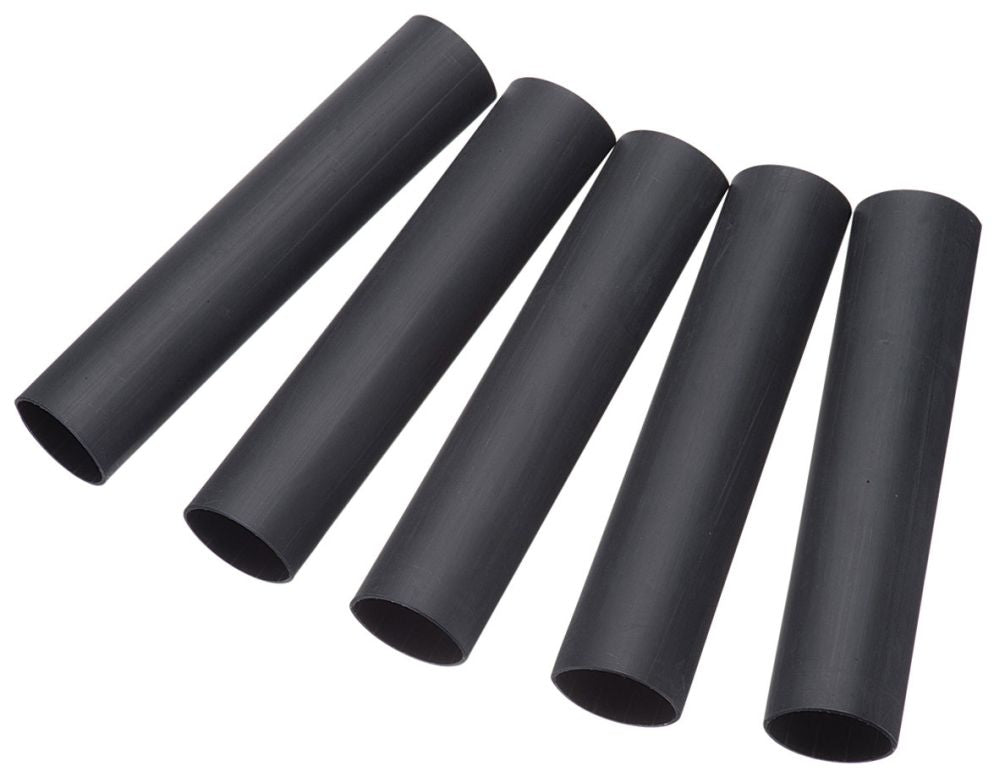

Ideal Industries 46-357 Heat Shrink Tube 12 4/0-400 MCM

Product Description

The Ideal Industries 46-357 is a heavy-wall heat shrink tubing designed for electrical insulation and protection in various applications. This tubing features a shrink ratio of three to one, allowing it to securely fit over a range of cable sizes from 2/0 AWG to three hundred fifty MCM. It is twelve inches long and made from irradiated cross-linked polyolefin.

• Temperature Range: -55 to 110 degrees Celsius
• Meets UL, CSA, and RoHS standards
• Adhesive liner for complete insulation

Product Highlights

This product is ideal for protecting electrical splices in above-ground, underground, or underwater environments. It provides reliable insulation and is resistant to flame, ensuring safety in demanding conditions.

Product Information

Standard Information

• Brand: Ideal Industries
• Model: TS-46-1500

Technical Specifications

• Length: 12 inches
• Shrink Ratio: 3:1
• Thickness: 0.160 inches
• Volume Resistivity: 10^13 ohm-cm min
• Dielectric Strength: 500 V/mil
• Continuous Operating Temperature: -55 to 110 degrees Celsius
• Minimum Shrink Temperature: 120 degrees Celsius
• Ultimate Elongation: 600% min
