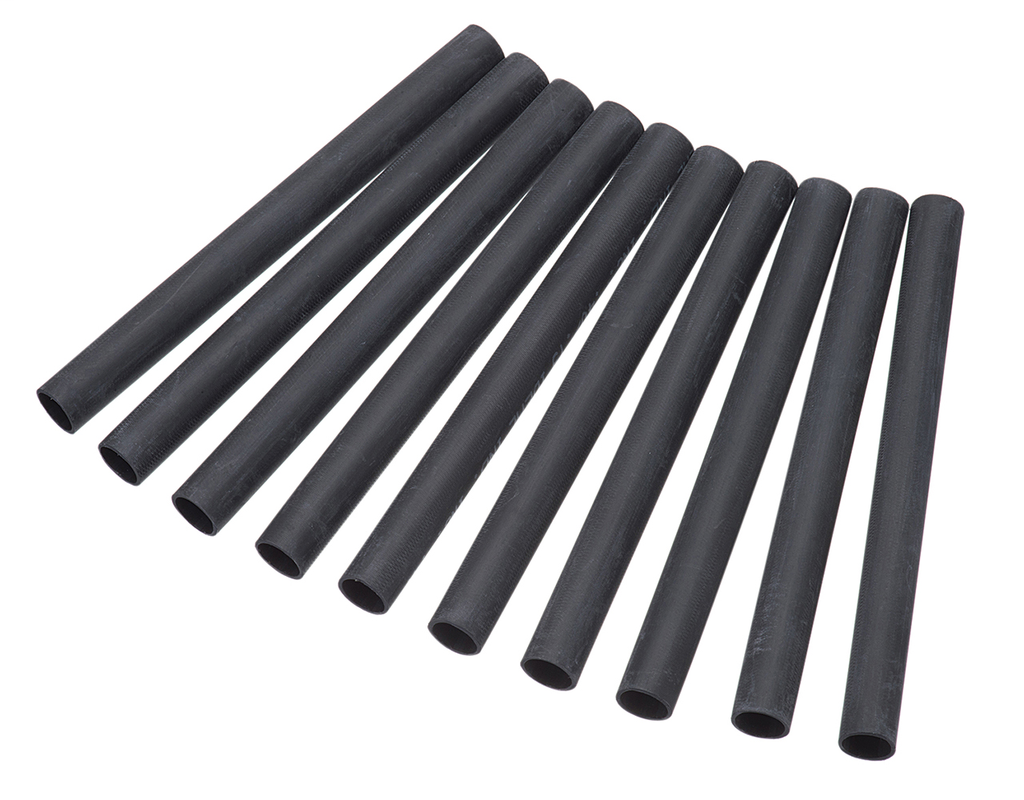

Ideal Industries 46-344 Heat Shrink Tubing 600 Volt 0.4 x 9 Inch 12 to 6 AWG

Product Description

Ideal Industries 46-344 is a heavy-duty heat shrink tubing designed for electrical insulation. It features a shrink ratio of three to one. The tubing is made from cross-linked polyolefin. This product is suitable for protecting electrical splices in various environments.

• Shrink temperature ranging from one hundred twenty to two hundred fifty degrees Celsius.
• Rated for six hundred volts with low temperature flexibility.
• Meets multiple industry standards including UL and CSA compliance.

Product Highlights

Ideal for underground and underwater applications, ensuring durability and reliability.

Product Information

Standard Information

• Brand: Ideal Industries
• Model: TS-46-400

Technical Specifications

• Length: 9 inches
• Inner Diameter Expanded: 0.4 inches
• Inner Diameter Recovered: 0.15 inches
• Wall Thickness Recovered: 0.06 inches
• Shrink Ratio: 3:1
• Temperature Rating: -55 to 110 degrees Celsius
• Dielectric Strength: 500 V/mil
• Application: Underground and underwater use
