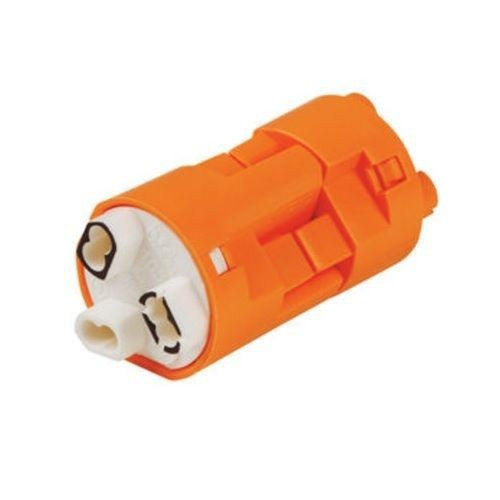

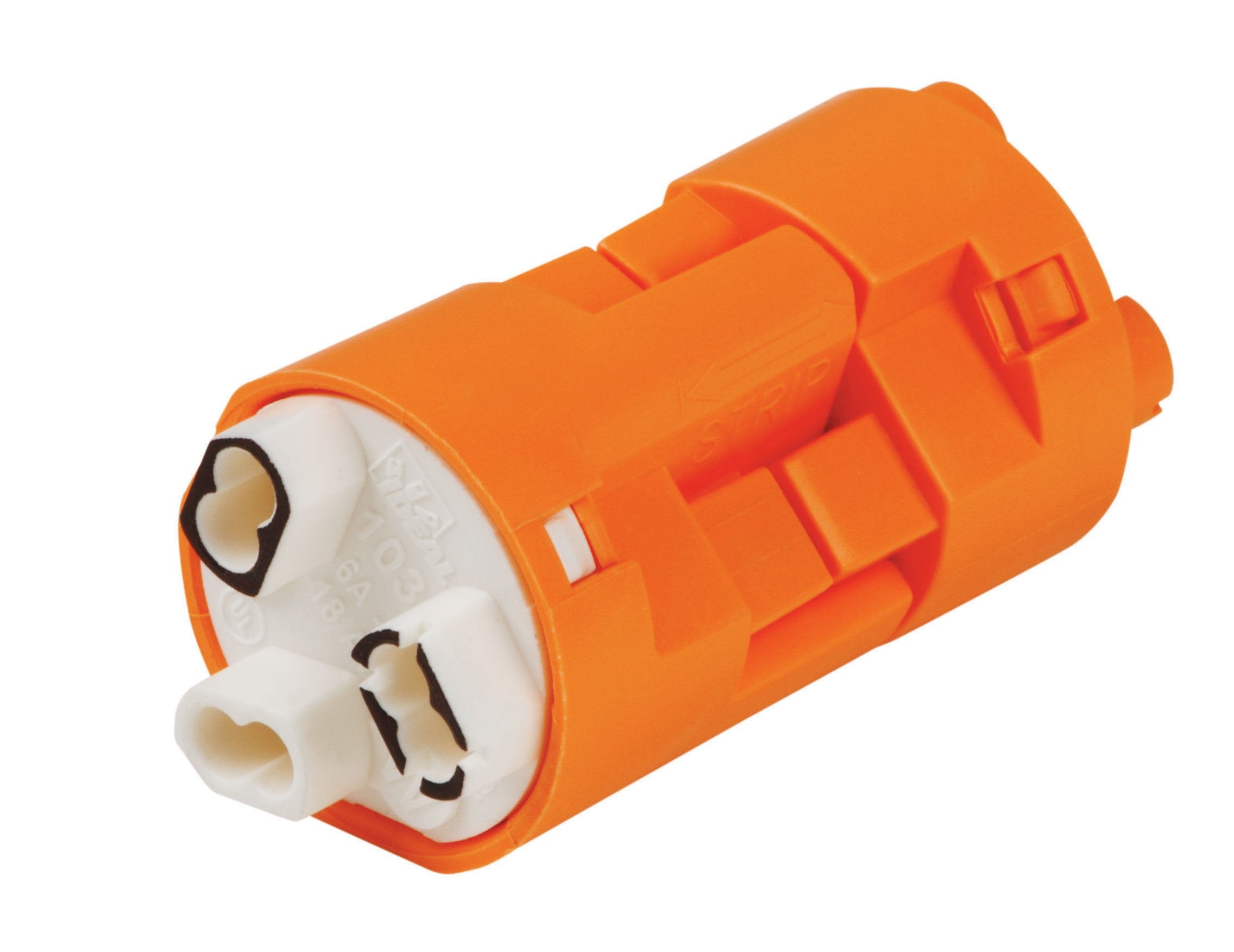

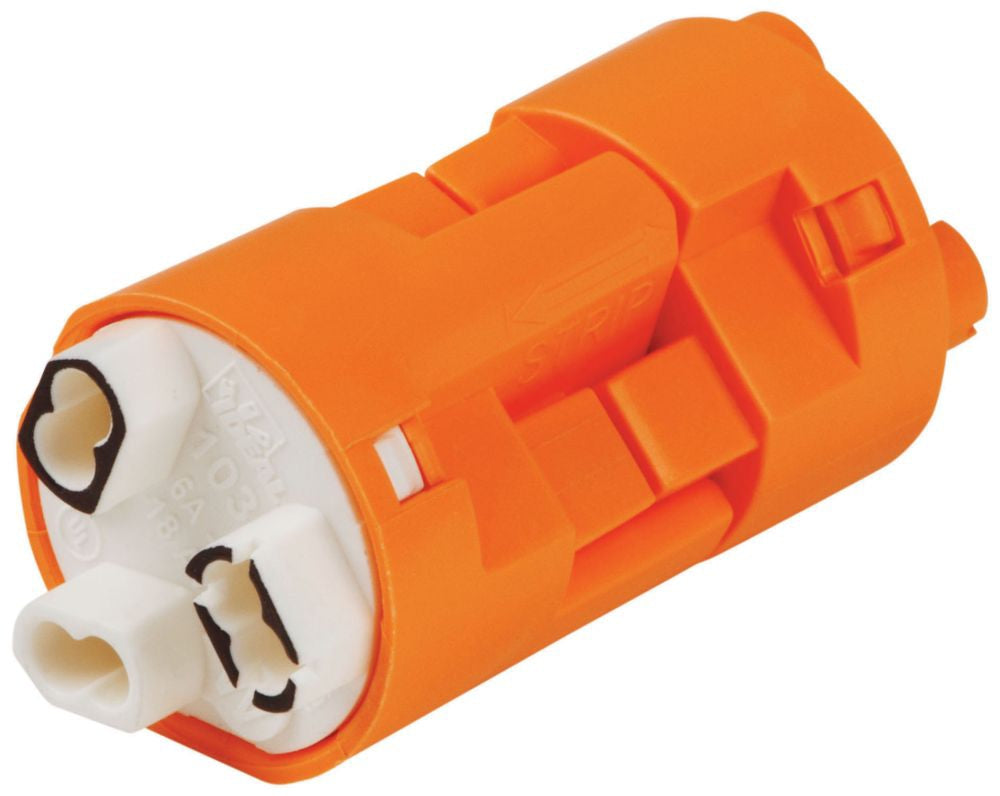

Ideal Industries 30-383X Powerplug Luminaire Disconnect #103 3-Wire 600V (20/pk)

Product Description

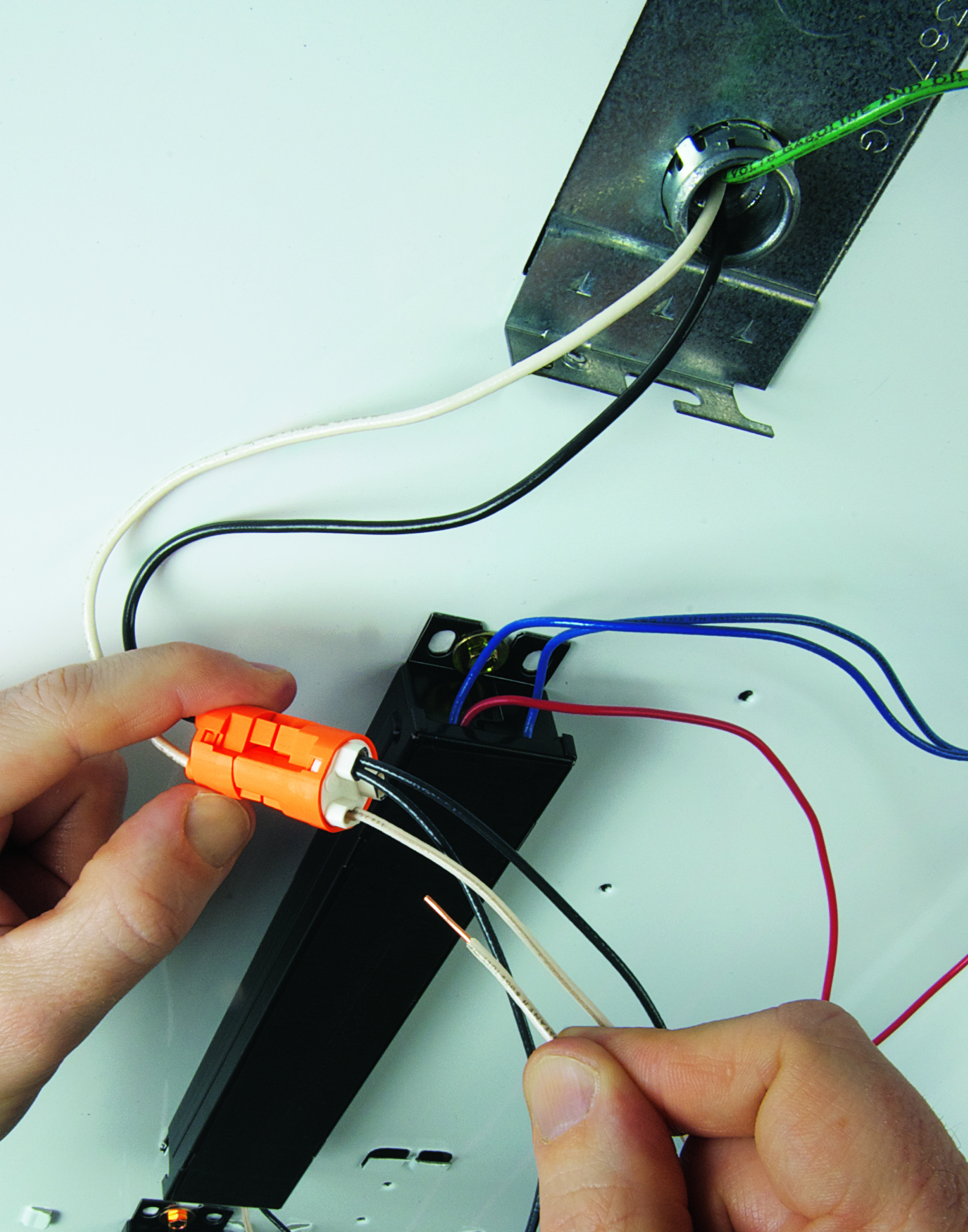

The IDEAL INDUSTRIES 30-383X PowerPlug® features patented push-in technology that quickly locks wires in place. It reduces electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring. It meets UL and CSA finger-probe safety requirements and fits through 1/2-inch knockouts for quick installation. It is suitable for 2-ballast, dimming, and switching fixtures in new installations and retrofits.

• Patented push-in technology quickly locks wires in place

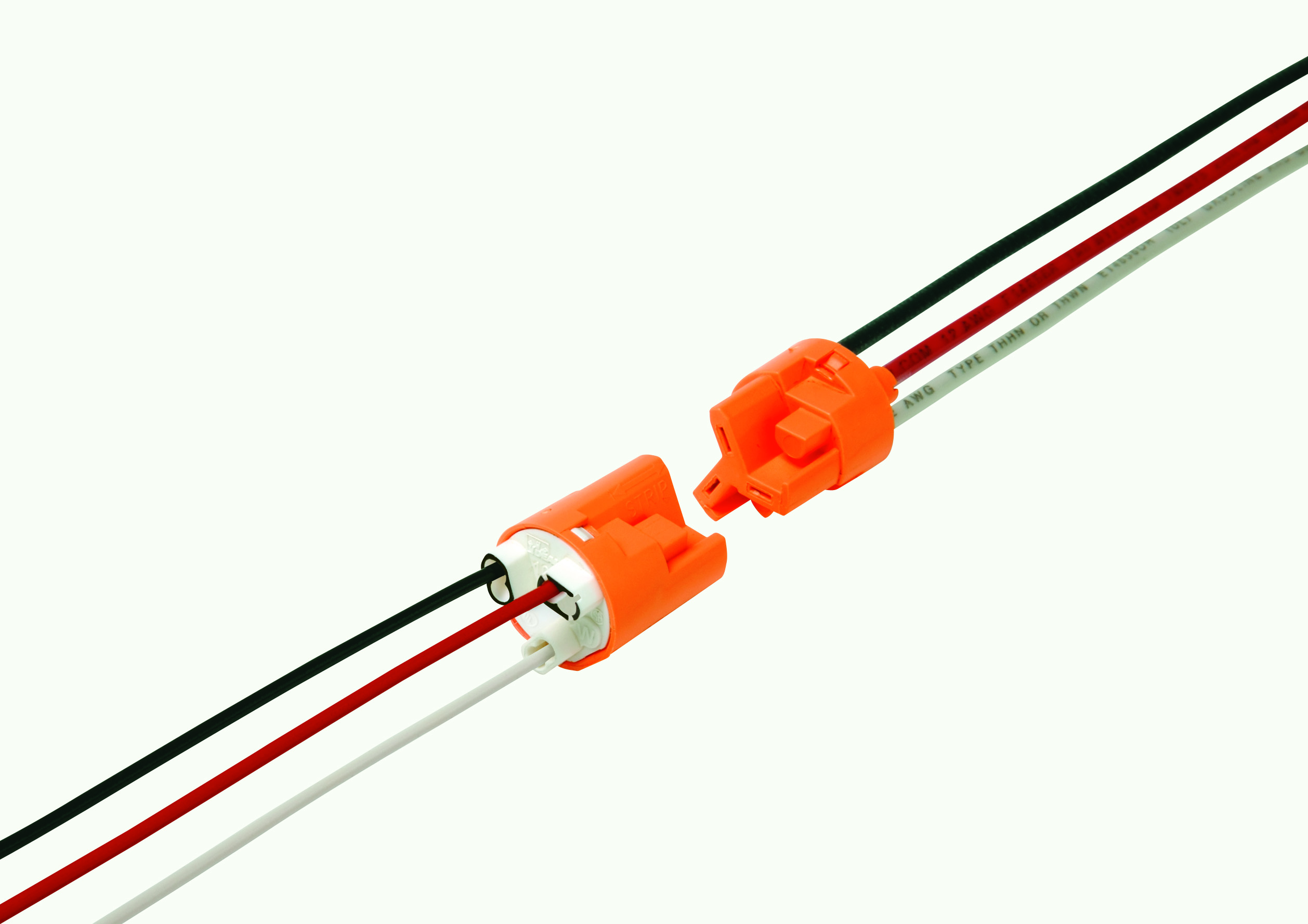

• Allows for safe disconnect of hot and neutral ballast wiring
• Both halves are touch-safe per UL 2459

Product Highlights

The PowerPlug® provides fast, efficient luminaire connections resulting in reduced installation time and improved labor savings.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-383X
• Country of Origin: China

Technical Specifications

• Type: 3-Wire Standard Version
• Brand: Ideal Industries
• Voltage: 600 Volt
• Amperage: 6 Amp
• Material: Nylon
• Sub Brand: PowerPlug®
• Wire Size: 12-18 AWG Solid, 12-14 AWG Stranded, 12-14, 16, 18 AWG Stranded Tin-Bonded
• Applications: For 2-Ballast, dimming and Switching Fixtures New Installations and Retrofits
• Conductor Size: 12-18 AWG Solid, 12-14 AWG Stranded, 12-14, 16, 18 AWG Stranded Tin-Bonded
• Connection Material: Copper Alloy
• Connection Type: Push-In
• Finish: Tin Plated
• Manufacturer Part Number: 30-383X
• Overall Length: 1.48 in
• Specifications: 3/8 to 1/2 in L Strip, 6 A Current Rating, 3 lb Insertion Force, 10 Cycles Current Interruption
• Standards/Approvals: CEC 30-308(4)|CSA C22.2 No. 182.3|NEC 2008 410.130(G)|RoHS Compliant|UL 2459|UL94 V-0 Flammability Rating
• Temperature Rating: 221 deg F
• Voltage Rating: 600 VAC
• Number of Ports: 3
• Series: 100
• Wire Size (AWG): 12 to 18 AWG Solid
• Standard & Approvals: 182.3 CSA Certified, CEC, NEC, RoHS Compliant, UL 94V-0 Flammability Rating, UL 2459 Listed
• Overall Length (in.): 1.48
