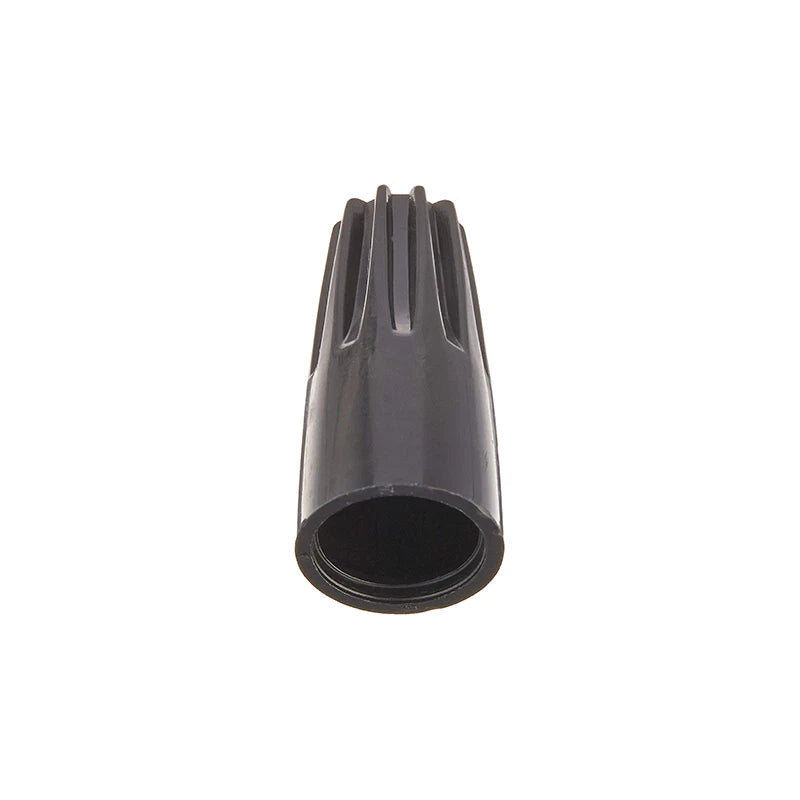

Ideal Industries 30-3627 Wire-Nut Wire Connector High Temperature (100 Pack)

Product Description

The IDEAL INDUSTRIES 30-3627 Wire-Nut Wire Connector is a high-temperature twist-on connector designed for insulating or joining two or more conductors in extreme heat conditions. It accommodates 1 to 5 conductors with a range of 22 to 16 AWG. The thermoplastic polyester construction ensures durability in tough environments.

• High Temperature Twist-On design
• Conductor Range: 22 - 16 AWG
• Voltage Rating: 300 V

Product Highlights

This connector is ideal for high-wattage fixtures and signs, offering a secure grip that withstands high temperatures and prevents flash-over.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-3627
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121445
• Application: For insulating or joining two or more conductors in conditions where extreme heat build-up occurs such as high wattage fixtures and signs
• Color: Black
• Manufacturer Part Number: 30-3627
• Material: Thermoplastic Polyester
• Series: 74B�
• Shell Style: Twist-On
• Specifications: 1/4 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, Min 22 to 2 AWG, Max 16 to 2 AWG Combination Size
• Standards/Approvals: RoHS Compliant|C22.2 No. 188|Federal Specification W-S-610E|UL 94V-0 Flammability Rating|UL 486C Listed
• Temperature Rating: 302 deg F
• Type: High Temperature
• Voltage Rating: 300 VAC
• Number Of Conductors: 1 to 5
• Conductor Range: 22 - 16 AWG, Min 2 - 22, MAX 2-16
• Termination Method: Twist-on
• Maximum Rated Voltage: 300 V
• Maximum Temperature: 302�F (150�C)
• Maximum Wire Gauge: 16 AWG
• Minimum Wire Gauge: 22 AWG
• Wire Type: Solid, Stranded
• Flexible Skirt: No
• Compatible Mounting Type: Wire
• Brand: IDEAL
• UPC: 783250455393
• Condition: New
