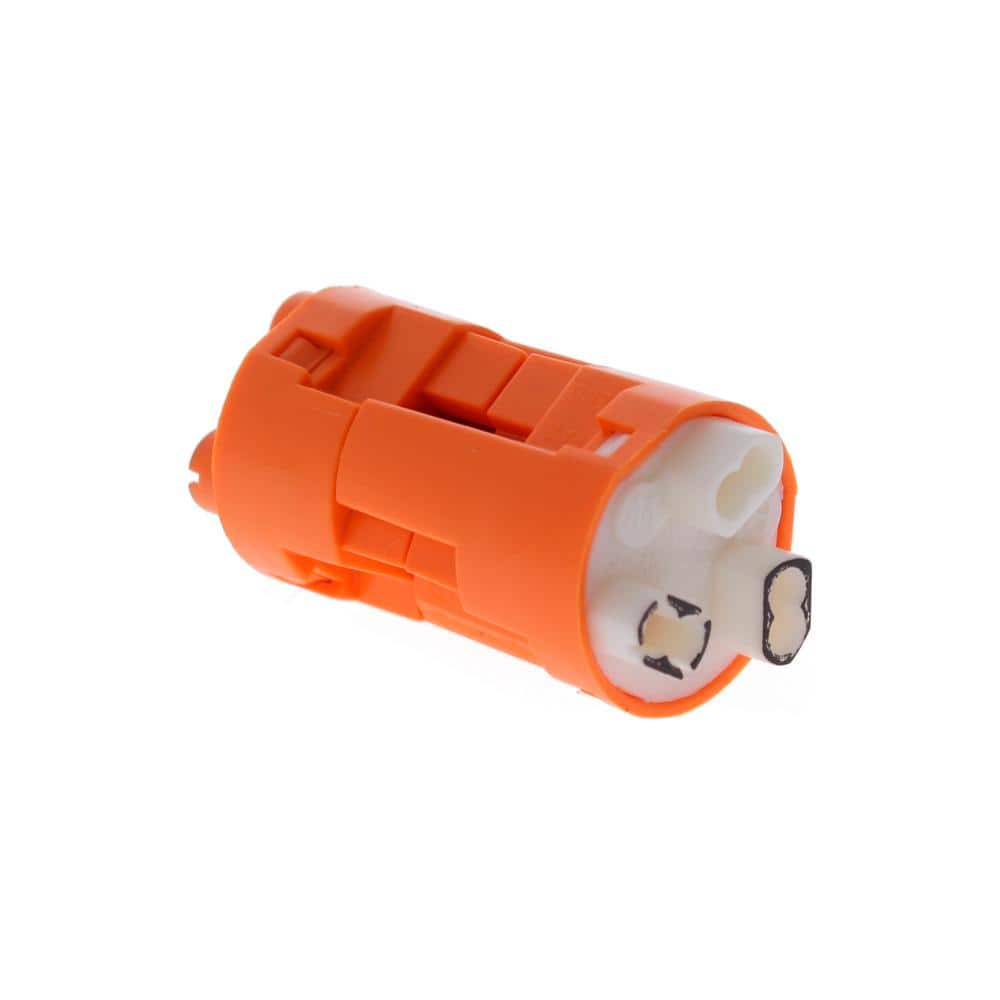

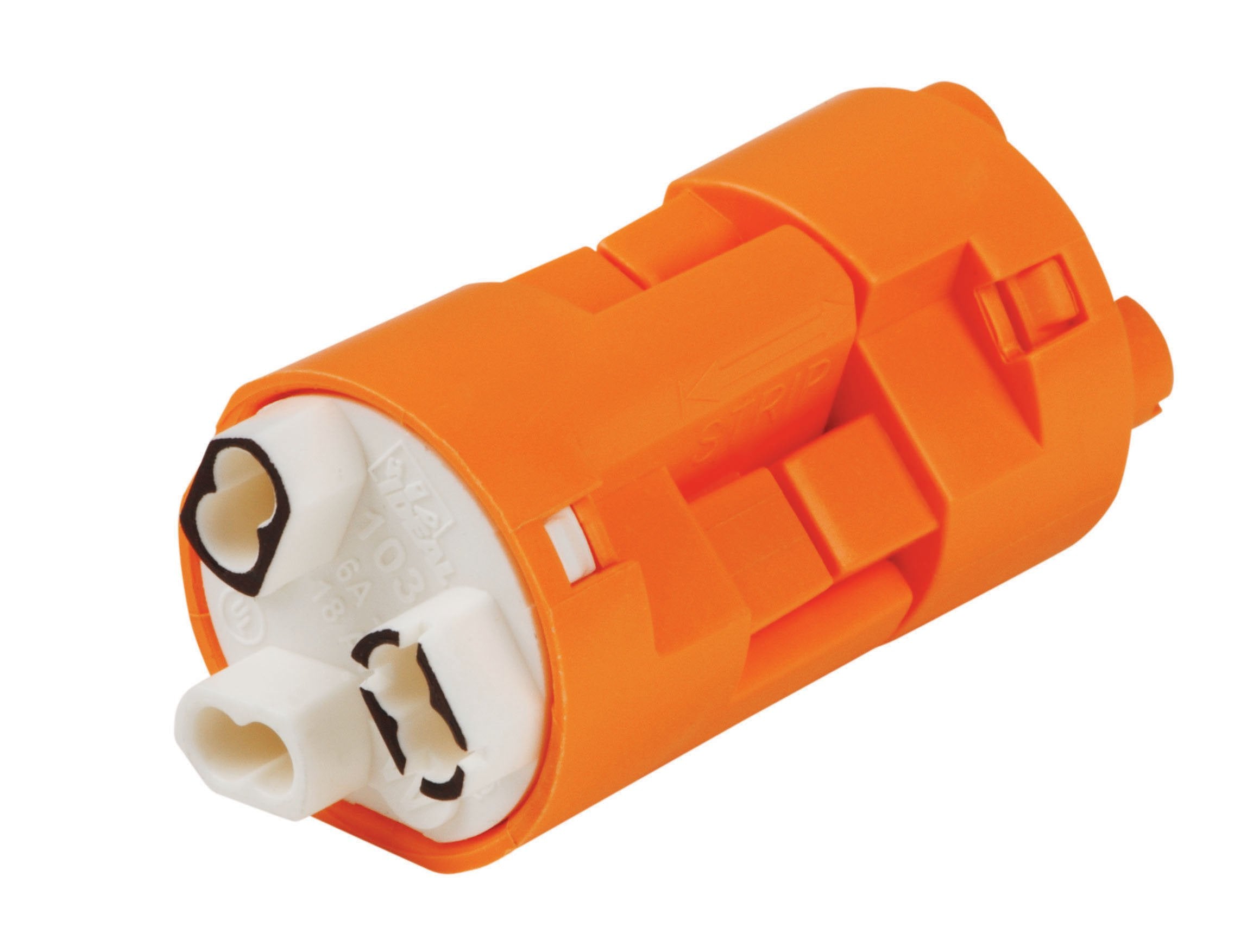

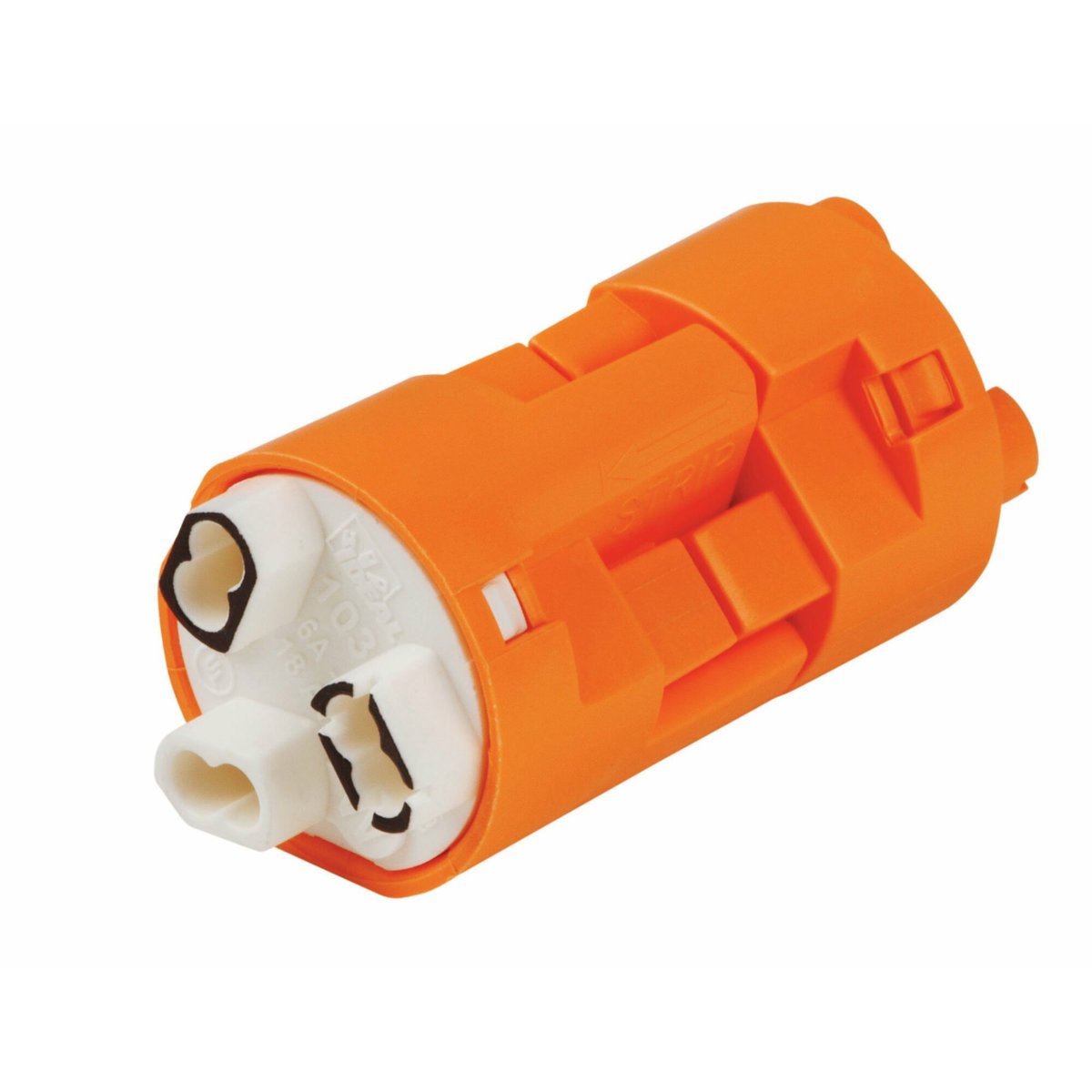

Ideal Industries 30-353XJ PowerPlug Luminaire Disconnect 600V 6A (100/Pack) Replacement 30-383XJ

Product Description

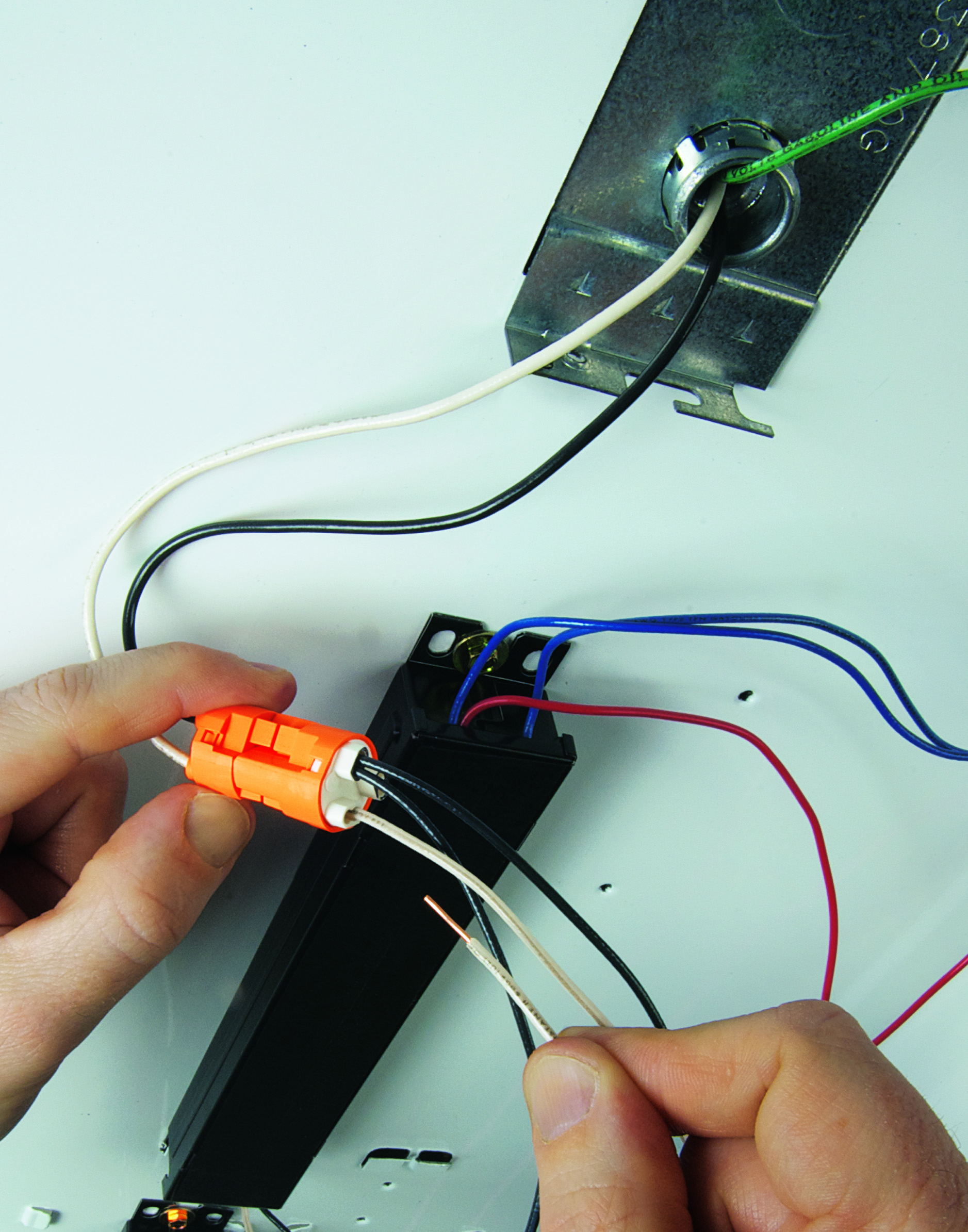

Ideal Industries 30-353XJ is a PowerPlug luminaire disconnect that provides a three-wire push-in connection for safe disconnection of hot and neutral ballast wiring. The connector accepts 12 to 18 AWG solid conductors and rated up to 600 V, 6 A, with a nylon housing and copper alloy contacts. It fits through 1/2-inch knockouts and meets UL and CSA finger-probe safety requirements for non-residential lighting installations and retrofits.

• Patented push-in connection locks wires without screws; compatible with solid and specified stranded and tin-bonded conductors (12-18 AWG solid; 12-14 AWG stranded; specified tin-bonded sizes).
• Electrical ratings: 600 V voltage rating, 6 A current rating; nylon housing with copper alloy contacts and tin-plated finish; temperature rating 221 deg F (105 deg C).
• Compact form fits 1/2 in knockout, includes 3/8 to 1/2 in strip length guidance, and meets UL 2459 and CSA finger-probe safety standards.

Product Highlights

3-wire push-in luminaire disconnect; 600 V, 6 A rating; supports 12-18 AWG; nylon body with copper alloy contacts; UL 2459 and CSA compliant.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-353XJ
• Country of Origin: China

Technical Specifications

• Brand: Ideal Industries
• Manufacturer Part Number: 30-353XJ
• Sub Brand: PowerPlug
• Type: Luminaire disconnect (PowerPlug)
• Configuration: 3-Wire / three-port
• Wire Size: Solid 12-18 AWG; Stranded 12-14 AWG; Stranded tin-bonded 12, 14, 16, 18 AWG (specified strand limits apply)
• Voltage Rating: 600 V
• Current Rating: 6 A
• Material: Nylon housing
• Contacts: Copper alloy, tin plated finish
• Connection Type: Push-in
• Overall Length: 1.48 in
• Diameter: 0.74 in
• Strip Length: 3/8 to 1/2 in
• Insertion Force: 3 lb
• Cycles Current Interruption: 10 cycles
• Temperature Rating: 221 deg F (105 deg C)
• Knockout Fit: Fits 1/2 in knockout
• Standards/Approvals: UL 2459; CSA C22.2 No. 182.3; CEC; NEC 2008 410.130(G); RoHS compliant; UL94 V-0
• Applications: For 2-ballast, dimming and switching fixtures; new installations and retrofits; LED retrofit kits
• Pack Quantity: 100 per jar
• UPC: 78325070264
• GTIN: 00783250702640
• Country of Origin: China
