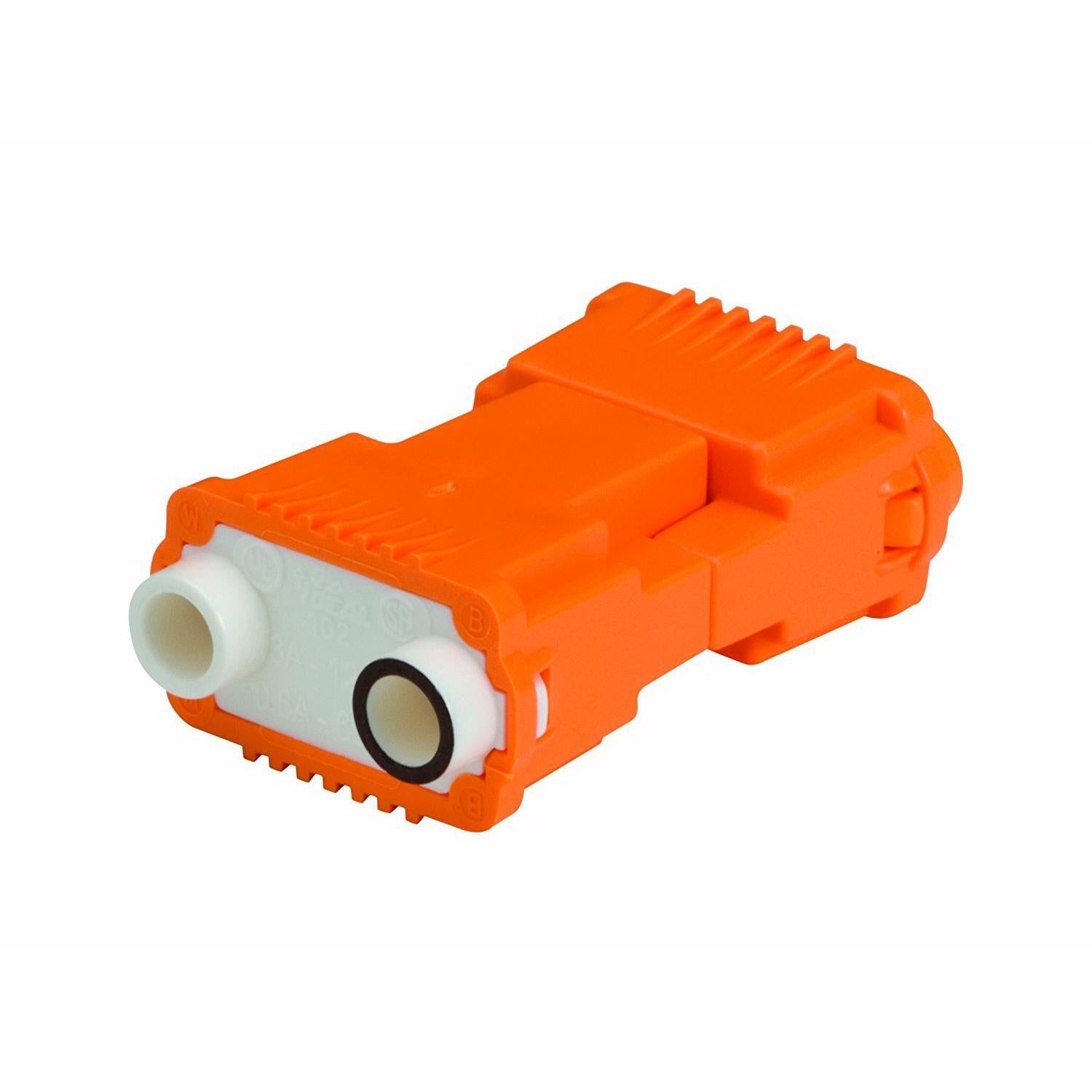

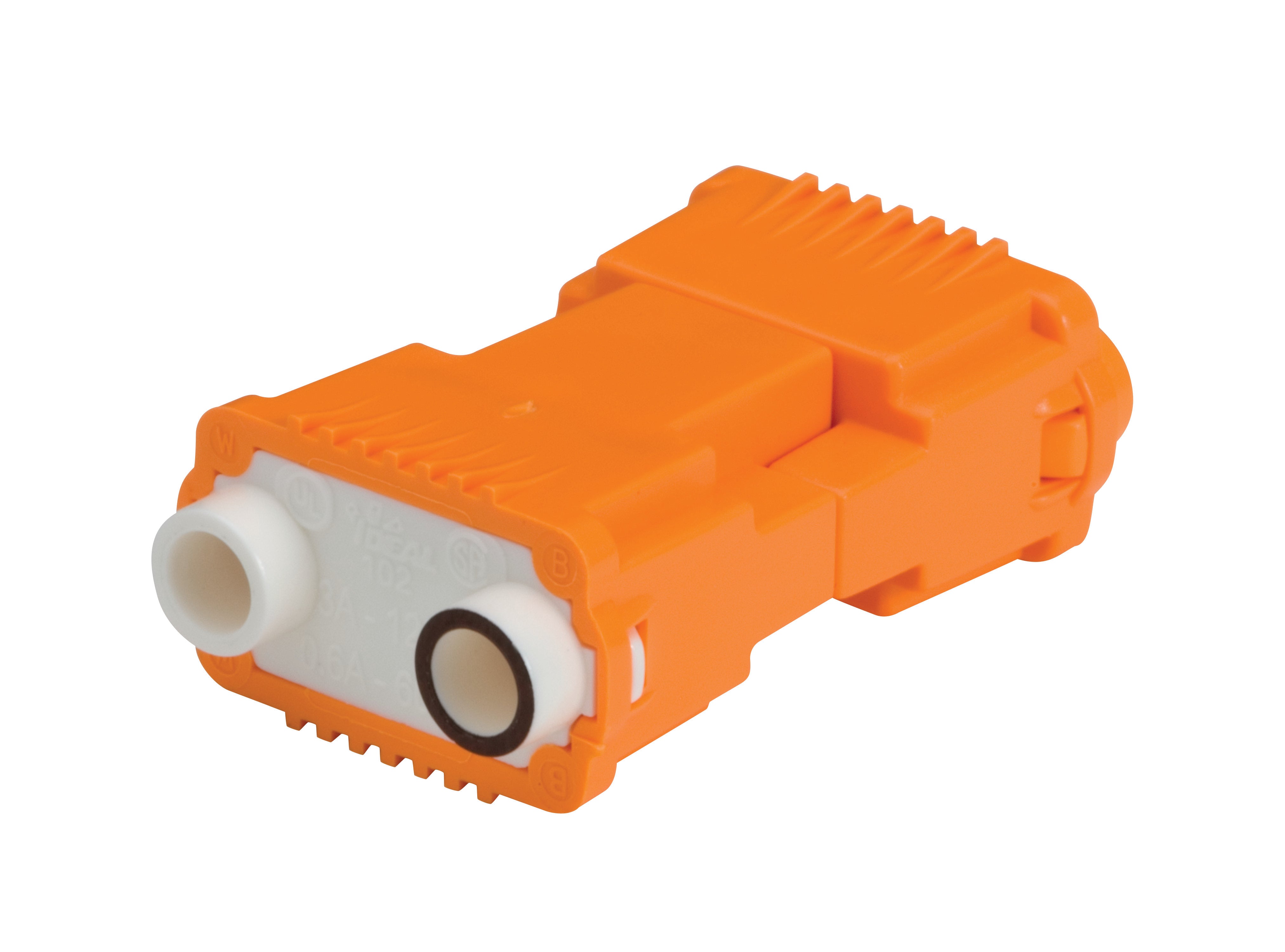

Ideal Industries 30-352J PowerPlug Luminaire Disconnect Model 102 (150-Jar)

Product Description

The IDEAL INDUSTRIES 30-352J PowerPlug Luminaire Disconnect features patented push-in technology that quickly locks wires in place. It helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring. It fits through 1/2-inch knockouts for quick installation and provides fast, efficient luminaire connections.

• Patented push-in technology quickly locks wires in place
• Allows for safe disconnect of hot and neutral ballast wiring
• Both halves are touch-safe per UL 2459

Product Highlights

The PowerPlug provides fast, efficient luminaire connections resulting in reduced installation time and improved labor savings.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-352J
• Country of Origin: China

Technical Specifications

• Brand Name: IDEAL
• Product Line: PowerPlug
• ADI Part Number: IL-30352J
• Manufacturer Part Number: 30-352J
• Type: 2-Wire Standard
• UNSPSC Code: 39121400
• Voltage: 600 Volt
• Amperage: 6 Amp
• Material: Nylon
• Sub Brand: PowerPlug®
• Wire Size: 12-18 AWG Solid, 12-14 AWG Stranded, 12-14, 16, 18 AWG Stranded Tin-Bonded
• Product UPC: 78325066786
• 12-Digit UPC: 783250667864
• Applications: For 1-Ballast Fixture New Installations and Retrofits
• Conductor Size: 12-18 AWG Solid, 12-14 AWG Stranded, 12-14, 16, 18 AWG Stranded Tin-Bonded
• Standards: UL 2459 Listed, CSA 182.3 Certified, RoHS Compliant, CEC Certified, NEC Compliant
• Temperature Rating: 221 deg F
• Overall Length: 1.4 in
• Insulation Material: Nylon
• Environmental Conditions: V0 Flammability Rated Per UL94
• GTIN: 00783250667864
• UNSPSC: 39121447
• UPC: 78325066786
• Manufacturer Name: Ideal Industries
• Connection Type: Push-In
• Finish: Tin Plated
• Number Of Ports: 2
• Product Name: Luminaire Disconnect
• Standard: CEC 30-308(4), CSA C22.2 No. 182.3, NEC 2008 410.130(G), RoHS Compliant, UL 2459, UL94 V-0 Flammability Rating
• Model: 102
• Voltage Rating: 600V
• Amperage Rating: 6 A
• Application: For 1-ballast fixture new installation and retrofit application
• Connection Material: Copper Alloy
