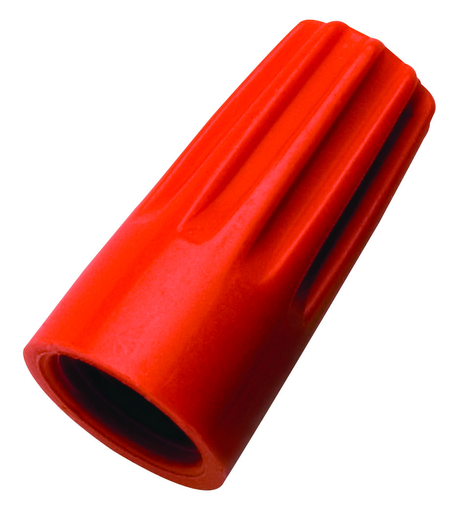

Ideal Industries 30-273 Wire-Nut Wire Connector 600 Volt 500/Bag

Product Description

The Ideal Industries 30-273 wire connector is designed for electrical wiring applications. It accommodates wire sizes from twenty-two to fourteen AWG, providing a secure and reliable connection. The wire connector features a positive grip shell that allows for easy hand-tightening, eliminating the need for pre-twisting. This model is rated for six hundred volts and is suitable for indoor and outdoor use, especially in air-handling spaces.

• Rated for use in air handling spaces
• Fixed square wire spring for a lasting grip
• Color-coded for easy identification

Product Highlights

This wire connector has a refined wire range that handles all common applications efficiently.

Product Information

Standard Information

• Brand: Ideal Industries
• MPN: 30-273

Technical Specifications

• Material: Polypropylene
• Color: Orange
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 volts
• Diameter: 7/16 inches
• Length: 55/64 inches
• Conductor Size: 22-14 AWG
• Standards: UL, CSA, RoHS compliant
