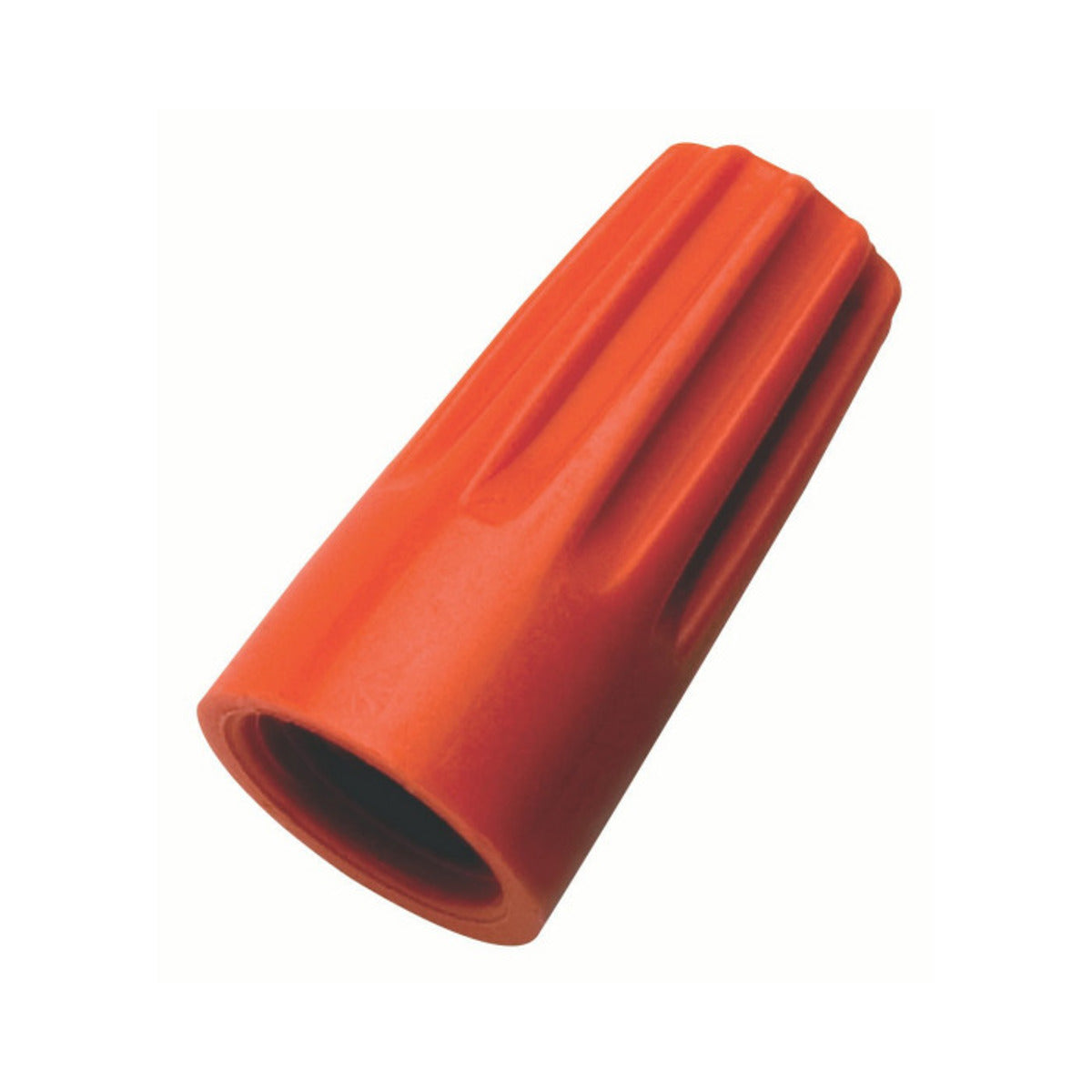

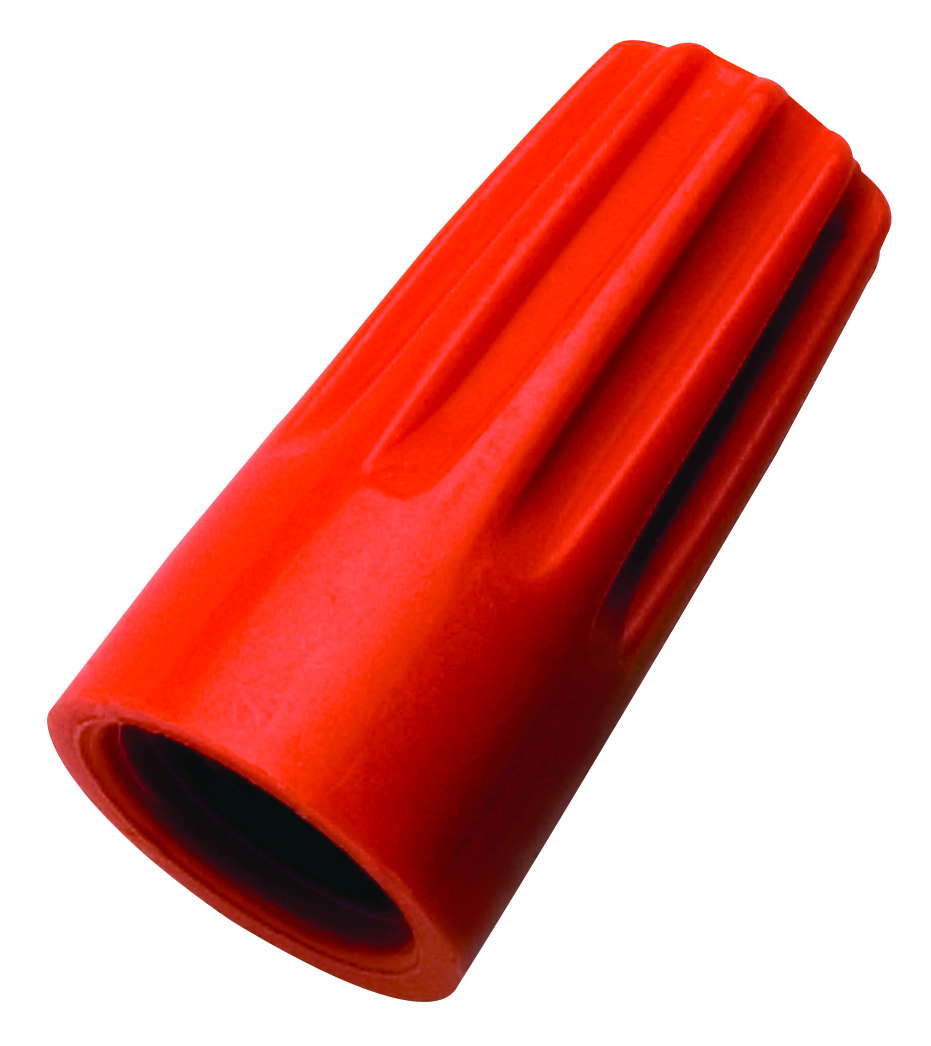

Ideal Industries 30-273 Wire-Nut Wire Connector 500/bag

Brand: IDEAL INDUSTRIES
SKU: 30-273
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Ideal WIRE-NUT wire connectors are the original twist-on wire connectors and feature a positive-grip design for easy installation. Five color-coded models cover hundreds of wire combinations. The fixed square-wire spring provides a secure connection that won relax over time. These connectors are suitable for use in air handling spaces and are UL listed and CSA certified.

  • Standard twist-on wire connector to join and insulate 2 or more wires
  • Positive-grip design requires no pre-twisting for fast, easy installation
  • Fixed, square-wire spring for a grip that will last

Product Highlights

The IDEAL Wire-Nut wire connectors are the original twist-on wire connectors with a positive-grip design for easy installation.

Product Information

Standard Information

  • Brand: IDEAL INDUSTRIES
  • Manufacturer Part Number: 30-273
  • Country of Origin: United States of America
Technical Specifications
UNSPSC Code
43223300
Type
Twist-On
Brand
Ideal Industries
Color
Orange
Finish
Zinc Plated
Length
55/64 Inch
Voltage
600 Volt
Diameter
7/16 Inch
Material
Polypropylene
Sub Brand
Wire-Nut 73B
Product UPC
78325030273
12-Digit UPC
783250302734
Applications
Insulating or Joining 2 or more conductors
Conductor Size
22-14 AWG
CA Prop65 Warning
WARNING: Cancer -\xa0 www.P65Warnings.ca.gov.
Temperature Rating
105 degrees C
Number of Conductors
1 to 5
Buy American Compliant
Y
Environmental Conditions
Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
Conductor Range
22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14
Model Number
73B
Flammability Rating
UL 94V-2
Series
73B
Shell Style
Twist-On
Specifications
3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size
Standards/Approvals
CSA C22.2 No. 188|Federal Specification W-S-610E|RoHS Compliant|UL 486C|UL94 V-2 Flammability Rating
Voltage Rating
600 VAC
Item Name
Wire Connector
Energy Star Flag
No
RoHS Flag
Yes
UNSPSC
39121445
GTIN
00783250302734
UPC
78325030273
Manufacturer Part Number
30-273
Manufacturer Name
Ideal Industries
Wire Range
#22 to #14 AWG
Use With
Copper Wire
Connector Type
Nut
Insulation Material
Nylon
Color Family
Orange
ECCN (US)
EAR99
EU RoHS
Compliant
Part Status
Active
HTS
EA
Automotive
Unknown
PPAP
Unknown
Termination Method
Twist-on
Body Orientation
Straight
Mounting
Cable Mount
Maximum Rated Voltage
600 V
Maximum Temperature
221 F (105 C)
Maximum Wire Gauge
14 AWG
Minimum Wire Gauge
22 AWG
Wire Type
Solid, Stranded
Flexible Skirt
No
