Product Description

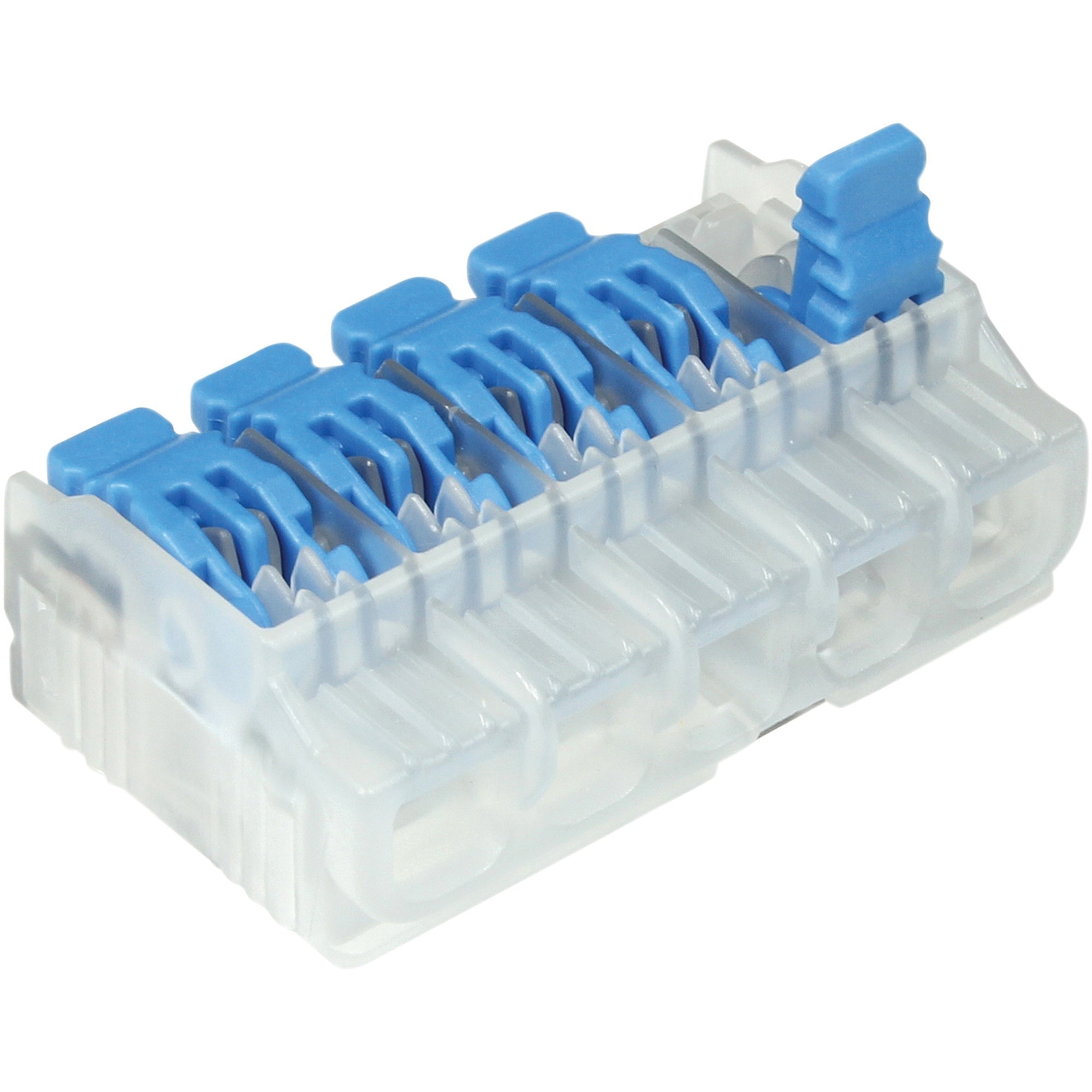

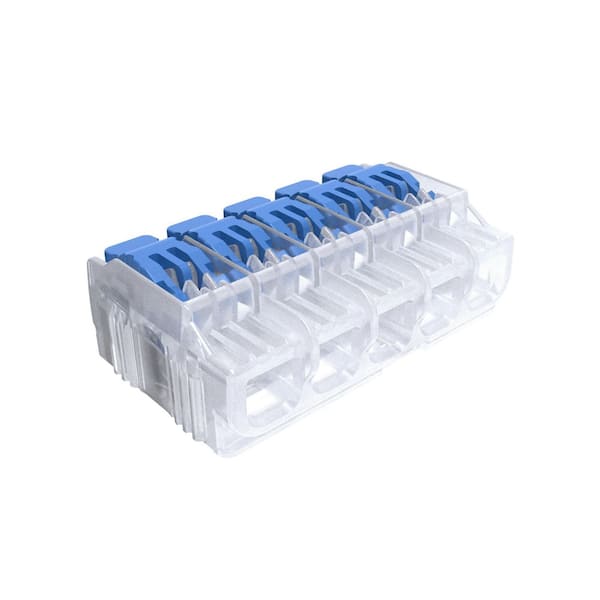

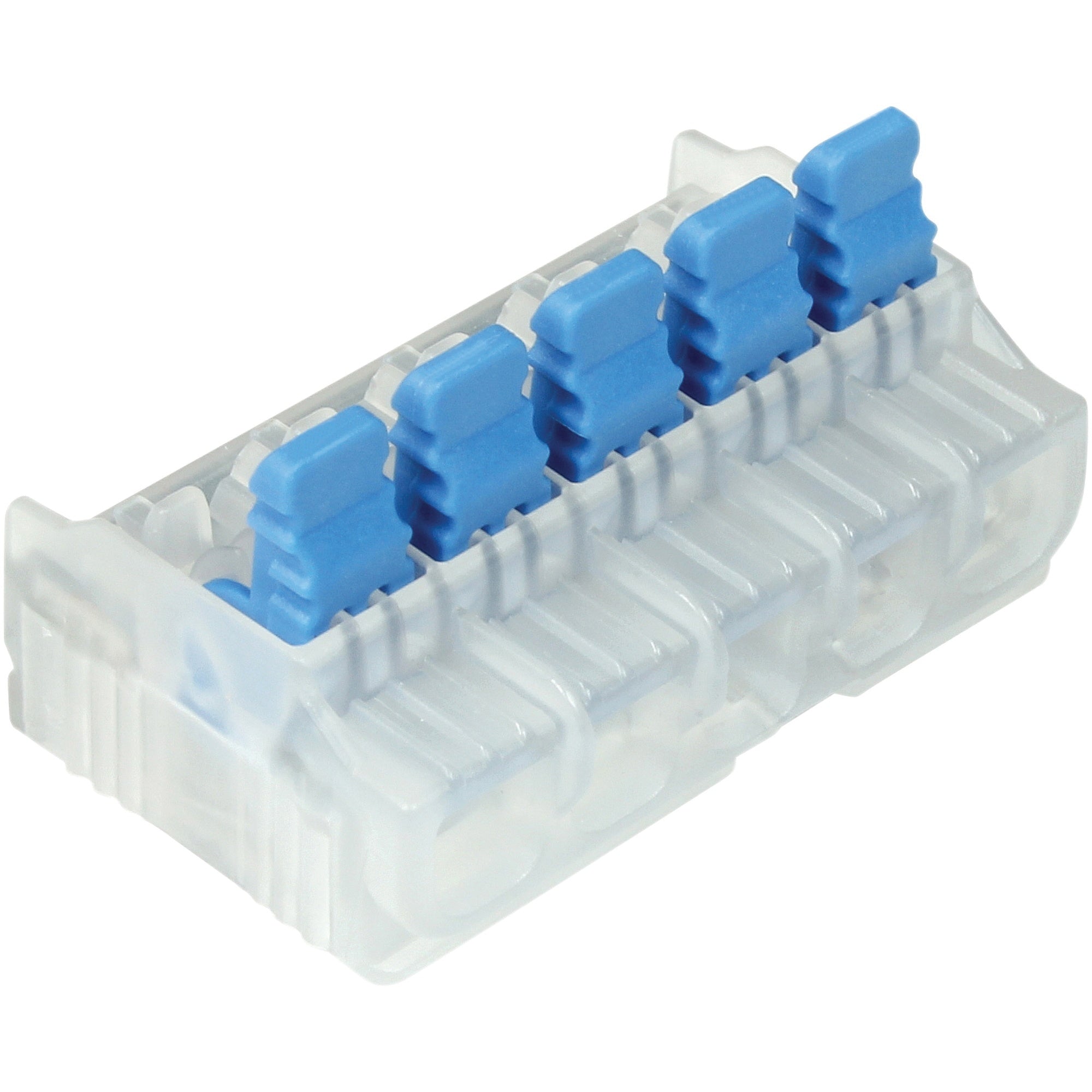

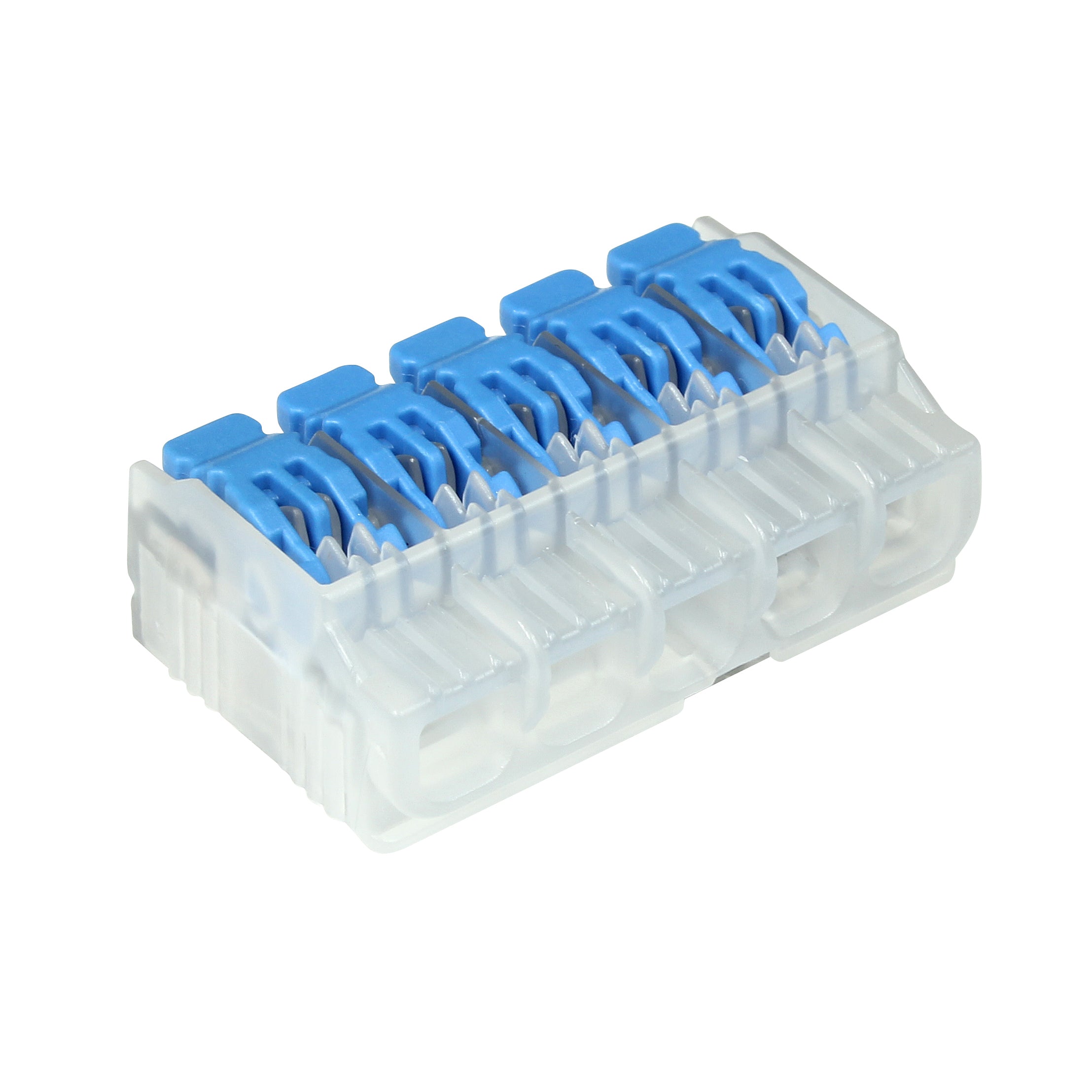

The IDEAL INDUSTRIES 30-20L25J lever wire connectors provide a solution for splicing solid and stranded wires. These connectors feature a compact design, occupying minimal space in junction boxes and enclosures. The levered design allows for easy wire release when needed. Rated at 600V and 20A, these connectors accommodate 24-12 AWG solid/stranded conductors.
- Perfect for splicing solid and stranded wires
- Compact design for tight spaces
- Levered design for easy wire release
Product Highlights
These In-Sure lever wire connectors are versatile, safe, reliable and reusable, offering a modern alternative to traditional connectors.
Product Information
Standard Information
-
Brand: IDEAL INDUSTRIES
-
Manufacturer Part Number: 30-20L25J
-
Country of Origin: Unknown
Technical Specifications
-
Brand: Ideal Industries
-
Number of Ports: 5
-
Voltage: 600 Volt
-
Amperage: 20 Amp
-
Material: Polycarbonate
-
Sub Brand: In-Sure™
-
Conductor Size: 24-12 AWG Solid/Stranded
-
Contact Material: Copper
-
Temperature Rating: 221 degrees F
-
Length: 1.23 Inch
-
Insulation Material: Nylon
-
Environmental Conditions: V2 Flammability Rated Per UL94
-
Standards: UL 486C, 467 (Grounding) Listed, CE Certified, IEC 60998 Certified, RoHS Compliant
-
Strip Length: 0.45 Inch
-
Package Quantity: 200/Jar
-
Item Name: Lever Wire Connector
-
Wire Range: 24 - 12 AWG
-
For use with: Cu/Cu combinations only
