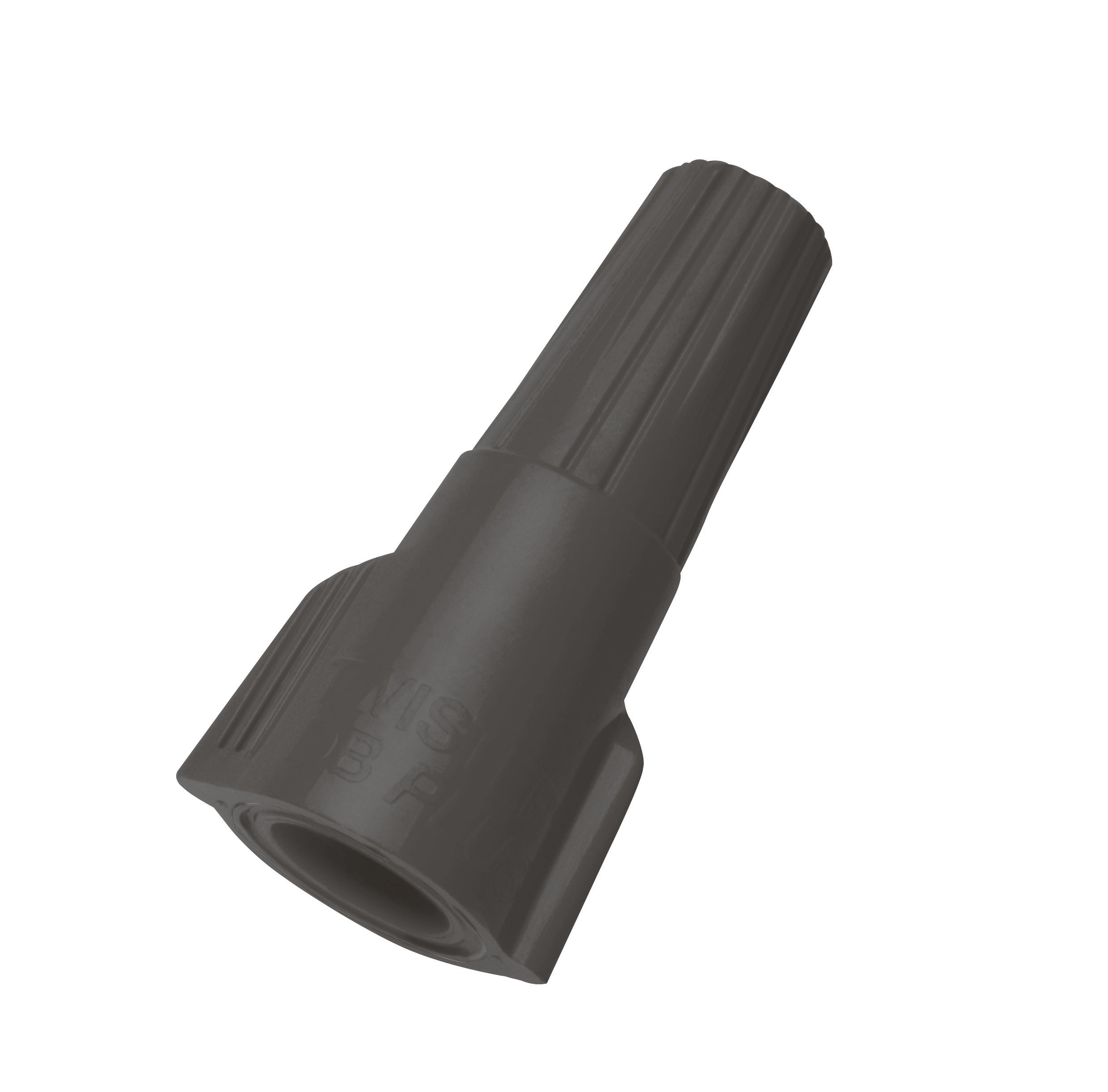

Ideal Industries 30-1260 Underground Wire Connector Model 60 (100/Box)

Product Description

The IDEAL INDUSTRIES 30-1260 Underground Wire Connectors are designed to secure and protect wire connections in a wide variety of below-grade, wet location and direct burial applications. They feature an expanding, live-action spring and are pre-filled with a silicone-based sealant for fast, secure, and long-lasting connections. The connectors handle wire sizes from #20 to #10 AWG copper and are UL Listed to 486G.

• 100% Silicone-based sealant protects against moisture and corrosion
• UL Listed to 486G Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
• Easy to apply, pre-filled twist-on wire connectors

Product Highlights

Underground wire connectors for below-grade, wet location and direct burial applications. Provides secure wire connections with moisture and corrosion protection.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-1260
• Country of Origin: US - United States

Technical Specifications

• Type: Model 60® Wire Connector
• Brand: Ideal Industries
• Voltage Rating: 600 Volt
• Material: Thermoplastic
• Standard: UL Listed And CSA Certified
• Sub Brand: UnderGround®
• Product UPC: 78325075797
• 12-Digit UPC: 783250757978
• Applications: Handles wire sizes from #20 to #10 AWG copper. Minimum of 1 #20 with 1 #18. Maximum of 2 #12 & 1 #10 AWG.
• Conductor Size: 20-10 AWG
• Temperature Rating: 105 C
• Insulation Material: Thermoplastic Polyester
• Environmental Conditions: V2 Flammability Rated Per UL94
• Strip Length: 1/2 Inch
• Package Quantity: 100/Box
• Item Name: Wire Connector
• Manufacturer Part Number: 30-1260
• Manufacturer Name: Ideal Industries
• Series: 60® Series
• Shell Style: Swept Wing/Twist-On
• Specifications: 1/2 in Wire Strip, (1) 20 AWG with (1) 18 AWG Minimum, (2) 12 AWG, (1) 10 AWG Maximum Conductor Combination Size
• Termination Method: Twist-on
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 221°F (105°C)
• Maximum Wire Gauge: 10 AWG
• Minimum Wire Gauge: 20 AWG
• Wire Type: Solid, Stranded
• Flexible Skirt: No
• Angle: straight Degree(s)
• Connector Type: Wire
• Primary Type: Twist-On Splice
• Underground Series: UnderGround Series
• Spring Type: Live-Action/Square Wire
• Application: For Ejection Pumps, Low-Voltage Landscape Lighting, Lawn-Sprinkler Control Systems, Sump and Well Pump Installations, Valve Control Boxes and Utility Tracer Line Applications
• Standard & Approvals: C22.2 #188 CSA Certified, RoHS Complaint, UL94 V-2 Flammability Rating, UL 486C/486D Listed
• Finish: Zinc Plated
• Wire Size: 20 to 10 AWG
