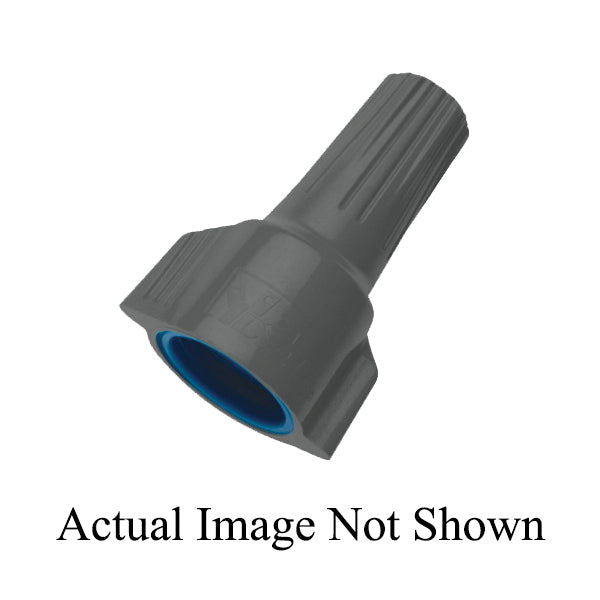

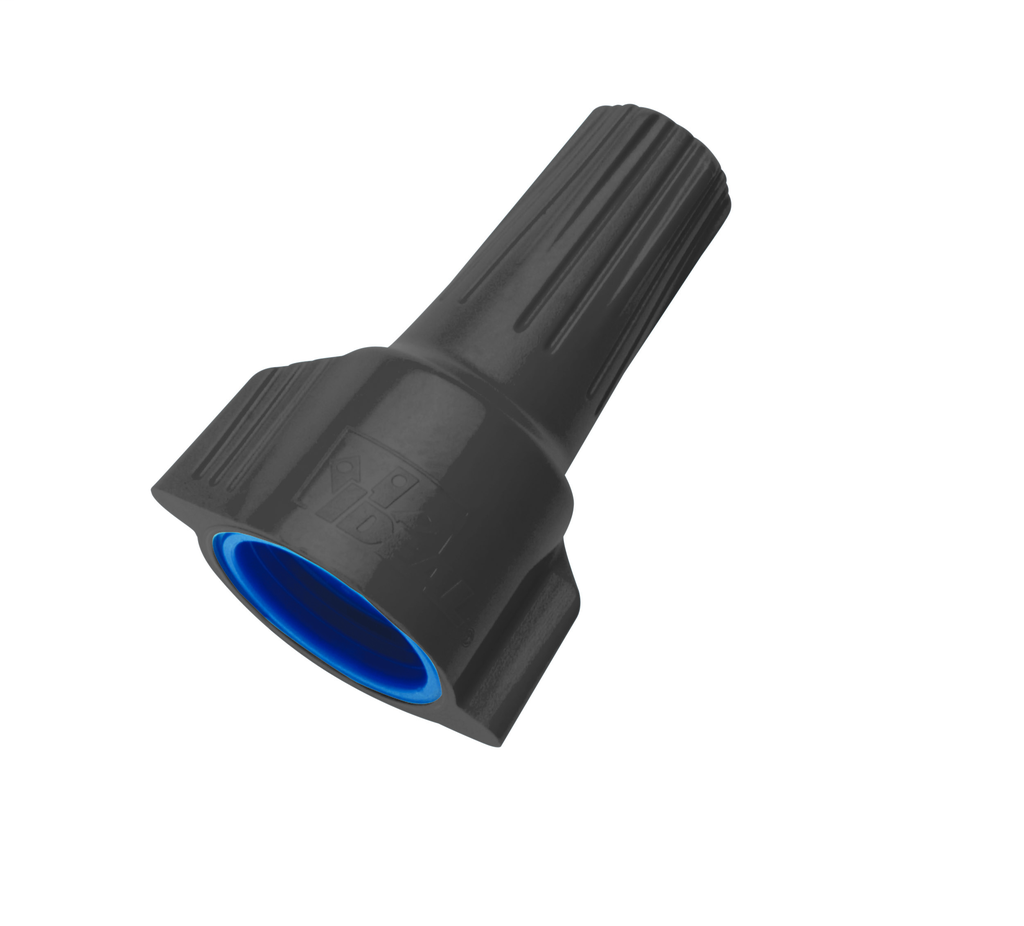

Ideal Industries 30-1163 WeatherProof Wire Connector 16 to 6 AWG 15/Card

Product Description

The Ideal Industries 30-1163 is a WeatherProof wire connector designed for solid and stranded copper wire ranging from sixteen to six AWG. This product is ideal for above-grade, interior, or exterior connections exposed to moisture and corrosive elements. It features a swept wing design that simplifies application, and a silicone-based sealant that prevents water intrusion and corrosion.

• Accommodates wire sizes from #16 to #6 AWG.
• UL Listed for damp and wet locations.
• Includes a tough thermoplastic shell rated for high temperatures.

Product Highlights

Designed to ensure reliable electrical connections in harsh environments, this wire connector eliminates the need for heat shrink or excessive taping.

Product Information

Standard Information

• Brand: Ideal Industries
• MPN: 30-1163

Technical Specifications

• Conductor Size: 16-6 AWG
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 Volts
• Material: Thermoplastic
• Sealant: 100% silicone-based
• Dimensions: 0.81 inches diameter x 1.0625 inches width x 1.59375 inches height
• Application: Ideal for connections in damp or wet locations
• Compliance: UL 486G, CSA Certified, RoHS Compliant
