Ideal Industries 30-10L33 In-Sure® 3-Port Lever Wire Connector 30A (75/Box)

Product Description

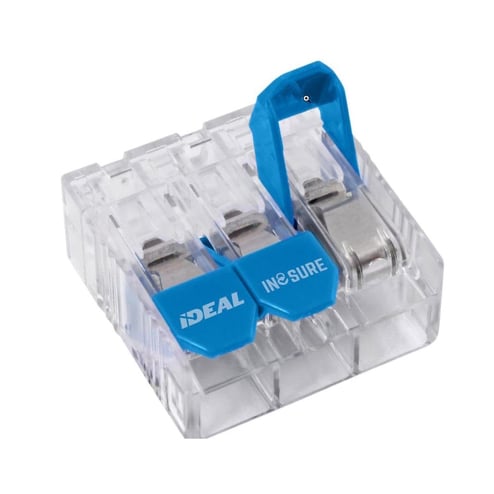

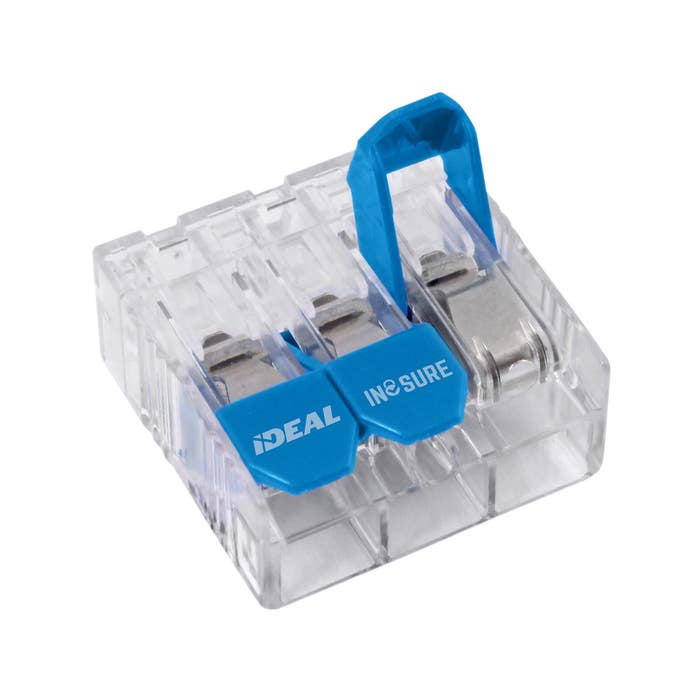

The IDEAL INDUSTRIES 30-10L33 In-Sure® Lever Wire Connector is a reusable 3-port lever connector for solid and stranded copper wires ranging from 22 to 10 AWG. It is rated 30 A and 600 V at 105°C in a clear nylon housing. The compact design features easy-open levers and visual confirmation and comes in a 75-pack box.

• Easily supports 10 AWG to 22 AWG solid and stranded wires.
• Maximum rated voltage is 600 V and the maximum temperature is 105°C.
• First lever connector to be listed for use with copper-clad aluminum wires.

Product Highlights

Provides fast and secure connections with an improved lever action, reducing the effort and strain on your hands. Built-in locking feature and continuity check port with a strip length guide.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-10L33
• Country of Origin: CN

Technical Specifications

• Amperage: 30 Amp
• Conductor Size: 22-10 AWG Solid and Stranded Copper, 12-10 AWG Solid Copper Clad
• Connection Type: Lever
• Material: Nylon/Polycarbonate
• Number of Conductors: 3
• Number of Ports: 3
• Temperature Rating: 105 degrees C
• Voltage: 600 Volt
• Brand: IDEAL INDUSTRIES
• Sub Brand: In-Sure
• Length: 0.89 Inch
• Maximum Rated Voltage: 600 V
• Maximum Temperature: 105 C
• Application: Copper Only
• Conductor Range: 22-10
• Poles: 3
• Type: Lever Connector
• Voltage Rating: 600
• Connector Type: L33
• Amp Rating: 30A
• Solid Copper: 22 to 10 AWG
• Solid-Copper Clad Aluminum: 12 to 10
• Stranded Copper: 22 to 10 AWG
• Wire Size: 22 to 10, 12 to 10, 22 to 10 AWG
• Wire Type: Solid/Stranded/Tin-Bonded
• Specifications: 30 Amperage Rating, 0.47 to 0.55 in Strip Length
