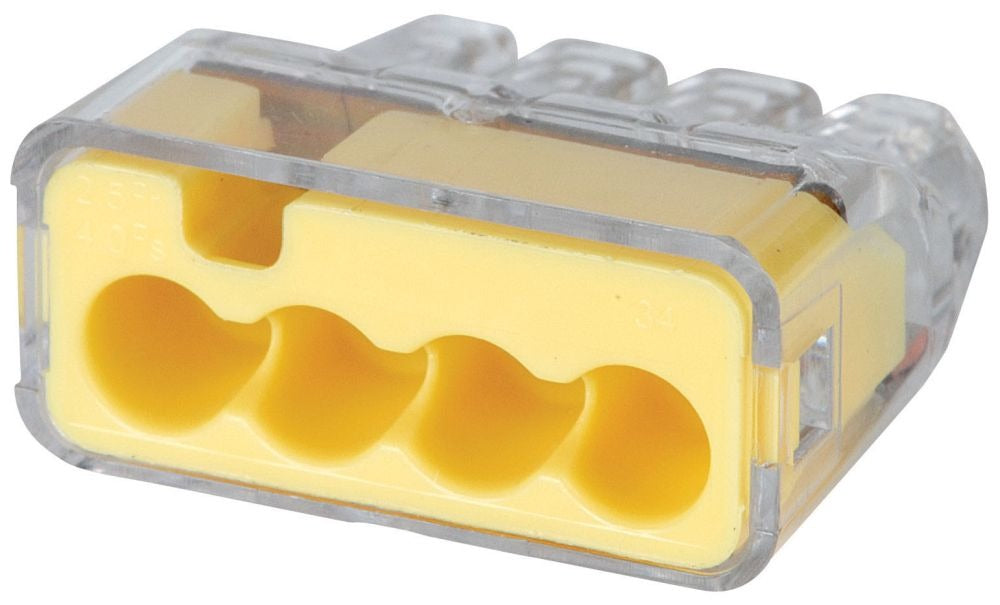

Ideal Industries 30-1034j Push-in Wire Connector 4-port

Product Description

The IDEAL INDUSTRIES 30-1034j is a push-in wire connector from the In-Sure product line, designed for fast, tool-free splicing of branch-circuit and fixture wiring. The 4-port configuration accepts solid wire from 20 to 12 AWG and stranded wire from 16 to 12 AWG (19 strands or fewer), making it versatile across a wide range of conductor types including tin-bonded stranded wire. Rated at 600 volts for building wire and 1000 volts for signs and lighting fixtures, with a temperature rating of 105 degrees C, this connector suits both standard branch-circuit work and fixture rough-in applications. Electricians use it as a direct replacement for traditional twist-on wire nuts where push-in termination is preferred.

The 30-1034j is suited for residential and commercial electrical work wherever multi-conductor splices are made at junction boxes, fixture canopies, panel rough-ins, and sign installations. Its 4-port design allows up to four conductors to be joined in a single connector, reducing the need for pigtails in multi-wire connections. The transparent housing allows visual confirmation of conductor seating without removing the connector. Each jar contains 200 connectors, making this a practical quantity for larger jobs or van stock.

Key Features

• Push-in termination requires no twisting or tools — insert stripped conductor until seated
• 4-port design joins up to four conductors in one connector
• Accepts solid 20 to 12 AWG, stranded 16 to 12 AWG (19 strands), 18 AWG (7 strands), and tin-bonded stranded 18 to 14 AWG
• Rated 600 volts for building wire and 1000 volts for fixture and sign applications
• Temperature rated to 105 degrees C shell
• Transparent polycarbonate housing allows visual confirmation of wire insertion
• UL 94-V2 flammability rated; RoHS compliant; Made in USA

Compatibility

Designed for use with solid and stranded copper conductors in standard NEC-compliant branch-circuit, fixture, and sign wiring applications where a 4-port push-in splice connector is required.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any wire connections. Strip conductors to the length specified on the connector strip gauge before insertion — do not over-strip. Do not exceed the connector's rated wire size range or current rating of 20 amps; mixing conductor sizes outside the listed AWG ranges is not permitted.

Technical Specifications

• Number of Ports: 4
• Current Rating: 20 amps
• Voltage Rating: 600 volts (building wire), 1000 volts (fixture and sign)
• Wire Size (Solid): 20 to 12 AWG
• Wire Size (Stranded, 19 strands or fewer): 16 to 12 AWG
• Wire Size (Stranded, 7 strands): 18 AWG
• Wire Size (Tin-Bonded Stranded, 19 strands or fewer): 18 to 14 AWG
• Temperature Rating: 105 degrees C (221 degrees F)
• Dimensions: 0.780 inches length x 0.820 inches width x 0.380 inches height
• Material: Nylon and Polycarbonate
• Contact Material: Copper, tin plated
• Color: Yellow face, transparent housing
• Flammability Rating: UL 94-V2
• Approvals: UL 467/486C, CSA C22.2, CE
• RoHS Compliant: Yes
• Standard Package Quantity: 200 per jar
• Country of Origin: USA

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 30-1034j
