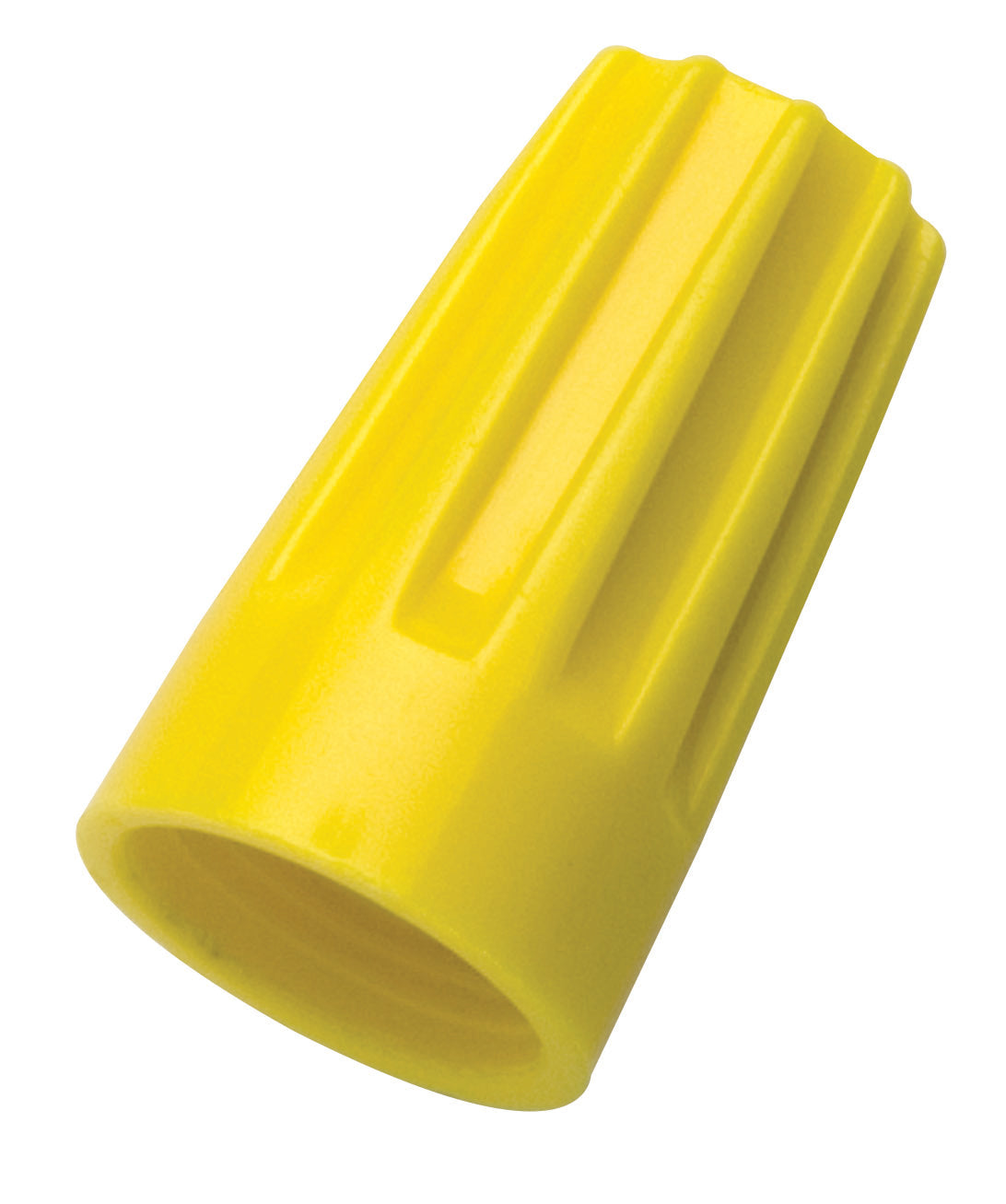

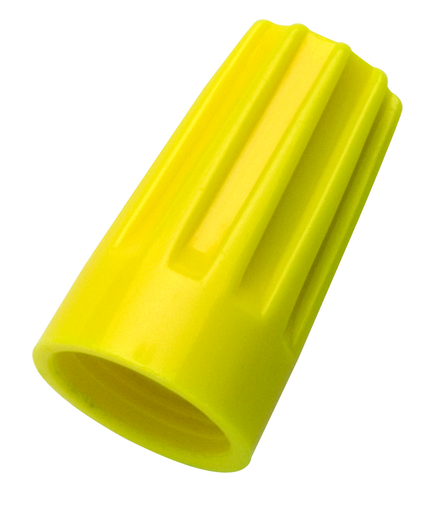

Ideal Industries 30-074 Yellow Wire-Nut Wire Connector 600V (100/Box)

Product Description

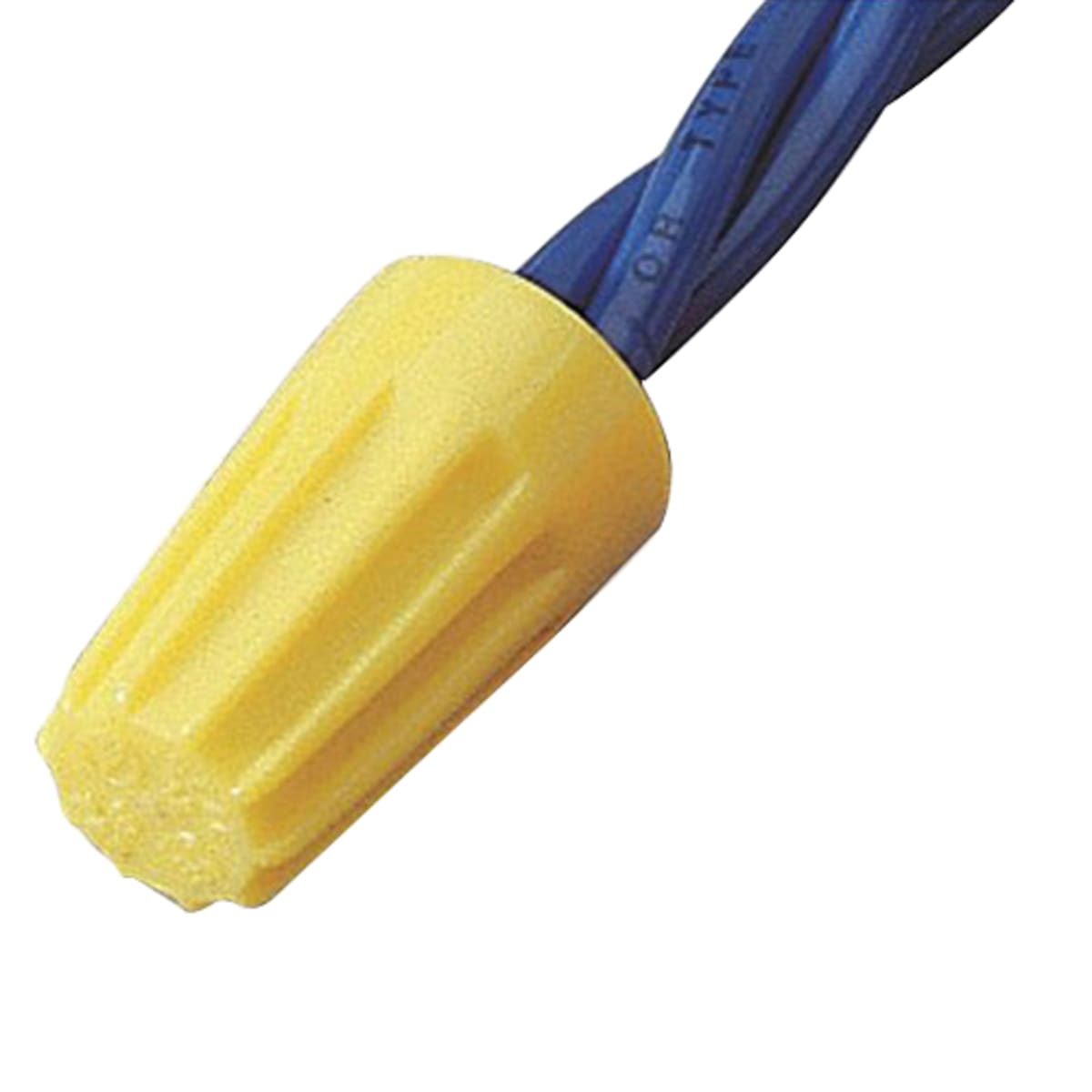

The Ideal Industries Wire-Nut wire connector, product MPN 30-074, is designed for reliable wire connections. This twist-on connector provides a secure grip and is suitable for joining and insulating multiple wires efficiently.

• Color-coded wire connector for easy identification.
• Fixed square-wire spring ensures a reliable connection that lasts.
• Temperature rated for 105 degrees Celsius, perfect for a range of electrical applications.

Product Highlights

The Wire-Nut wire connector features a durable thermoplastic body and a positive grip shell. It is excellent for various applications, supporting wire sizes from eighteen to twelve AWG and voltage ratings up to six hundred volts.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Part Number: 30-074

Technical Specifications

• Color: Yellow
• Wire Size: 18-12 AWG
• Voltage Rating: 600 V
• Temperature Rating: 105 degrees Celsius
• Material: Polypropylene with zinc plating
• Dimensions: 0.55 inches diameter x 0.95 inches height
• Applications: Insulating or joining two or more conductors
• UNSPSC Code: 39121445
