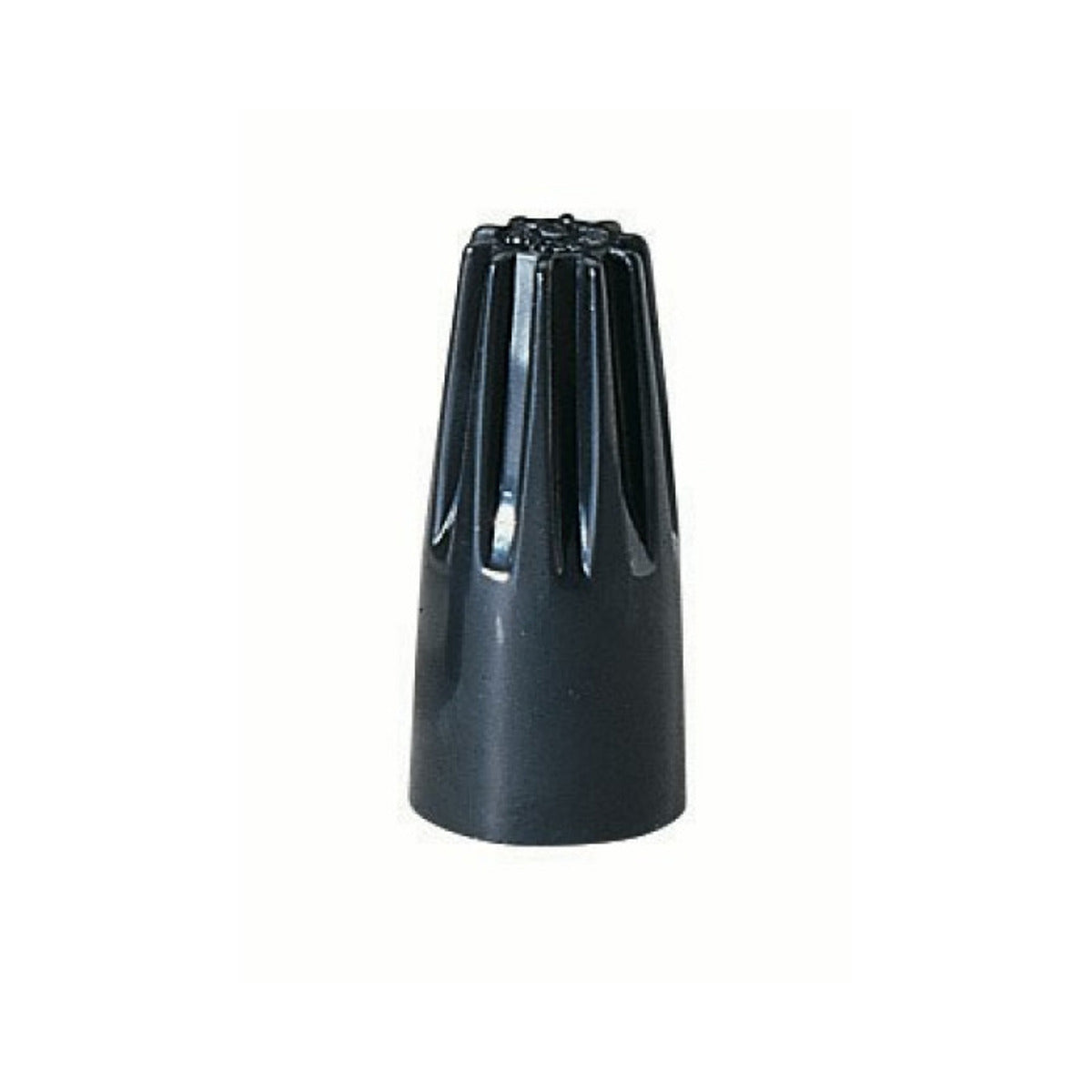

Ideal Industries 30-059 High-Temp Wire-Nut® (59B), 600V, #22-12 AWG (100/Box)

Brand: IDEAL INDUSTRIES
SKU: 30-059
Availability: Out Of Stock
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The IDEAL INDUSTRIES 30-059 Wire-Nut® wire connector set new standards for innovation, quality and convenience. With a fixed, square-wire spring and a positive grip shell, it is perfect to twist-on with fingers for a secure connection. The refined wire range makes it the best choice for fine stranded wire applications. The high-temperature models withstand extreme heat build-up.

  • Fixed, square-wire spring for a grip that will last
  • Refined range to handle all common applications
  • Positive grip shell that is perfect to twist-on with fingers

Product Highlights

The Wire-Nut® features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition. Approved for bonding and grounding applications.

Product Information

Standard Information

  • Brand: IDEAL INDUSTRIES
  • Manufacturer Part Number: 30-059
  • Country of Origin: US - United States
Technical Specifications
Type
High Temperature
Brand
Ideal Industries
Voltage Rating
600 V
Material
Thermoplastic Polyester
Standard
CSA Certified To C22.2 #188,UL Listed To 486C
Sub Brand
Wire-Nut
Product UPC
78325030059
12-Digit UPC
783250300594
Applications
For insulating or joining two or more conductors in conditions where extreme heat build-up occurs such as high wattage fixtures and signs
Conductor Size
22-12 AWG/20-2 AWG/14-3 AWG
Connection Type
Twist-On
Temperature Rating
302 deg F
Number of Conductors
1 to 6
Buy American Compliant
Y
Environmental Conditions
Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F)
ECCN
EAR99
UNSPSC
39121445
Country of Origin
US - United States
Model Number
59B
Width
31/64 IN
Height
1-1/16 IN
Dimensions
0.48 Inch Dia x 1.06 Inch Length
Strip Length
1/2 Inch
Package Quantity
100/Box
Item Name
Wire Connector
Energy Star Flag
No
RoHS Flag
Yes
GTIN
00783250300594
UPC
78325030059
Manufacturer Part Number
30-059
Manufacturer Name
Ideal Industries
Series
74B®
Shell Style
Twist-On
Specifications
1/2 in Solid/Stranded Wire Strip, 1 to 6 Conductors, Min 20 to 2 AWG, Max 14 to 3 AWG Combination Size
Standards/Approvals
RoHS Compliant|C22.2 No. 188|Federal Specification W-S-610E|UL 94V-0 Flammability Rating|UL 486C|UL 774A Listed
Max Voltage
600 V
Maximum Temperature
302 °F
Wire Type
Copper to Copper
Style
Standard
Package Type
Box
Direct Burial
No
Strain Relief
No
Maximum Wire Capacity
(3) #14
Wire Size Range
22-12 AWG
Approvals
CSA, UL
Net Weight
0.005 lbs
Gross Weight
0.005 lbs
ADI Part Number
IL-30059
Manufacturer
IDEAL Industries, Inc
Product Line
Wire Connectors
Product Model
59B
Product Name
Wire-Nut 30-059 Power/Data Connector
Product Type
Wire Connector
Cable Type
Solid Copper, Stranded
Packaged Quantity
100
Package Length
6.75
Features
22 to 12AWG
