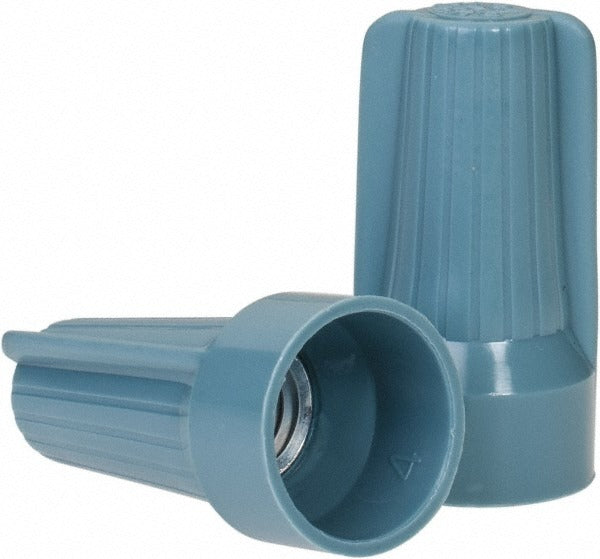

Ideal B4-B Twist-on Wire Connector 600V 250 Pack

Product Description

The IDEAL B4-B is a standard twist-on wire connector designed for making secure, insulated electrical splices in residential and commercial wiring applications. Rated at 600 volts with a maximum operating temperature of 221 degrees F, this connector accepts wire gauges down to 2 AWG. The flame-retardant shell resists ignition and slows flame propagation, meeting requirements for installations where fire resistance is specified. Licensed electricians and journeymen use this connector for branch circuit splices, device connections, and general low-voltage and line-voltage wiring in junction boxes and panels. Each package contains 250 connectors.

The B4-B connector is suited for use in residential branch circuit wiring, commercial electrical rough-in, and light industrial applications where 600-volt-rated splices are required. The blue and gray color coding aids in field identification by wire gauge range. It is appropriate for dry and damp locations in standard junction box installations where a UL-listed wire connector is specified by code or inspection authority.

Key Features

• Flame-retardant shell material rated to 221 degrees F maximum operating temperature
• 600-volt rating suitable for standard branch circuit and line-voltage splices
• Accepts wire sizes down to 2 AWG minimum compatible wire size
• Blue and gray color coding for quick field identification
• Meets CE, CSA C22.2 No. 188, CSA LR9706, Federal Specification W-S-610E, RoHS, UL Listed 486C, and UL Listed 774A standards
• Sold in a 250-piece package for high-volume job site use

Compatibility

Designed as an OEM-style replacement and standard-use twist-on connector for residential and commercial electrical wiring applications where a 600-volt, flame-retardant wire connector rated to 2 AWG minimum is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker and verify zero voltage with a meter before making any splice. Strip conductors to the appropriate length per connector instructions, insert wires fully, and twist clockwise until the connector seats firmly with no bare copper exposed below the shell. Do not over-torque or force wires beyond the connector's rated wire range.
