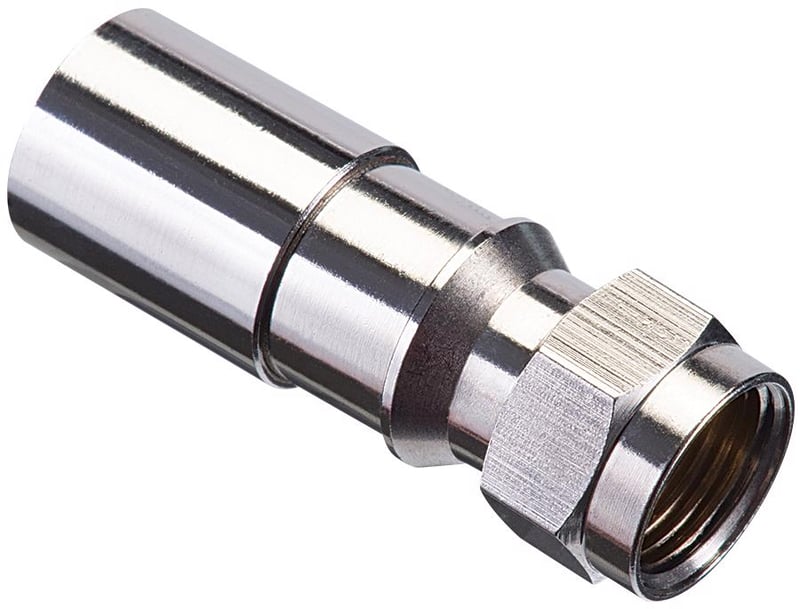

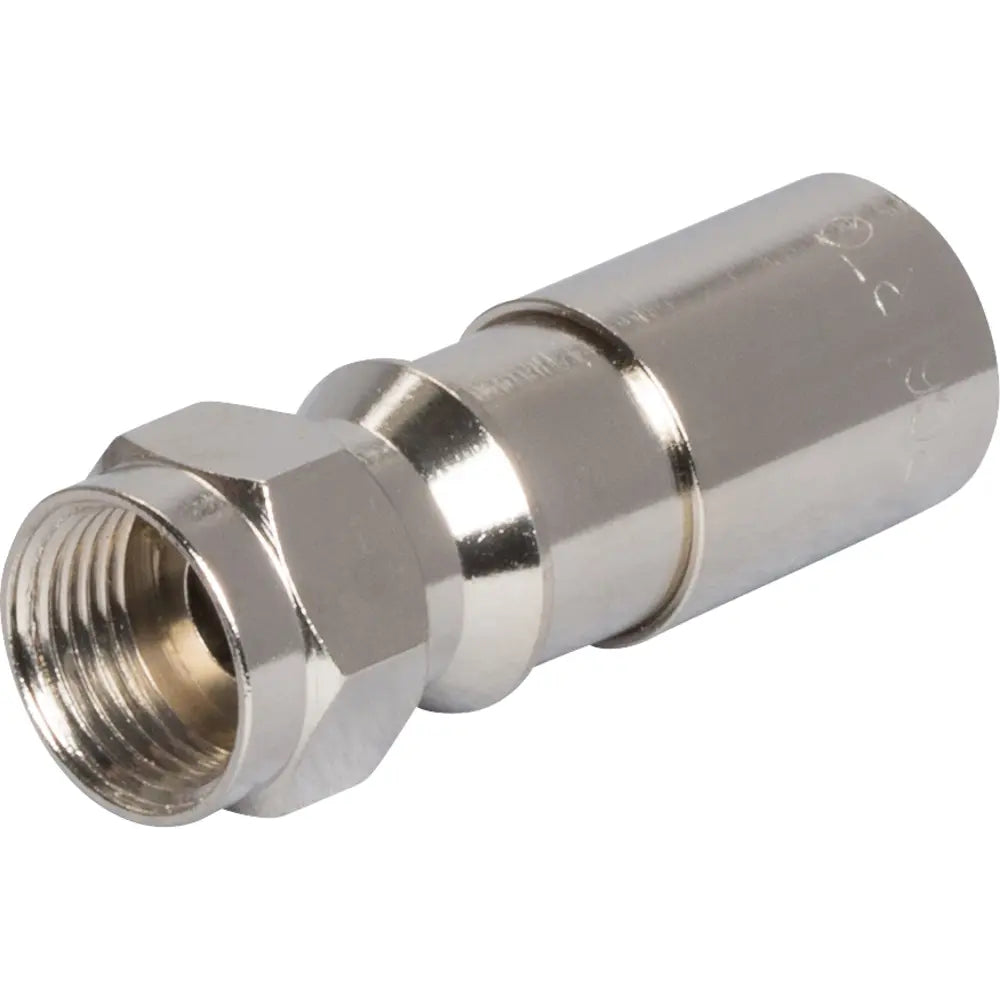

Ideal 92-651 Rtq Xr Rg-6 F Compression Connector 10-packs

Product Description

The IDEAL 92-651 RTQ XR series F connectors offer a solution for various coax types, including plenum rated versions. Designed for RG-6 and RG-6 Quad coaxial cables, this compression F-connector employs a quick-turn RTQ design for terminations. Constructed with a brass exterior and inner O-ring, it provides a weatherproof connection for indoor and outdoor applications.

• Compatible with RG6, RG6 Quad, RG6 Plenum, and RG6 Plenum Quad coax cables
• Dual O-rings and compression sleeve for outdoor use
• Accepts RG-6/ RG-6 Quad/ RG-6 Plenum/ RG-6 Plenum Quad coax cables

Product Highlights

The RTQ XR F-connectors are suitable for CATV, satellite, HDTV, and other A/V installations from 5MHz to 3GHz. Pack of 10 connectors.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 92-651
• Country of Origin: TW

Technical Specifications

• Type: F-Connectors
• Width: 2.75 Inches
• Finish: Nickel Plated
• Height: 2.5 Inches
• Length: 5.25 Inches
• Material: Brass
• Connection: Compression
• Insulation: Non-Insulated
• Country of Origin: TW
• Environmental Conditions: Wet/Dry Location
• Pkg Quantity: 10.0
• Product Name: Compression Connector
• Stripped Catalog Number: 92651
• Data Cable Type: RG6, RG6 Quad, RG6 Plenum, RG6 Quad Plenum
• Termination Method: Compression
• Impedance: 75
• Feed-Thru: No
• Connector Type: Straight Connector
• Configuration: Type F
• Cable Size: RG-6
• Installation: Compression
• Connector Length: 0.26-0.31"(6.600-7.740mm)
