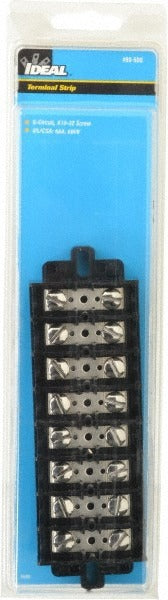

Ideal 89-508 Multipole Terminal Block 60A 600V 8 Pole

Product Description

The IDEAL 89-508 is an 8-pole multipole terminal block rated for 600 volts and 60 amps, built for reliable multi-conductor terminations in panel wiring, control enclosures, and industrial electrical assemblies. The block is constructed from black polyester thermoplastic with nickel-plated brass contacts, providing solid conductivity and corrosion resistance across a wide operating temperature range of -40 to 266 degrees F. It accepts wire sizes from 22 AWG up to 6 AWG, making it suitable for both signal and power wiring within the same terminal strip. Licensed electricians and panel builders install this block during new construction, retrofit, and control panel fabrication work.

The IDEAL 89-508 is suited for residential, commercial, and light industrial wiring applications where multiple conductors must be terminated in a compact, organized format. It fits into electrical enclosures, distribution panels, and control cabinets where space and labeling density are a priority. The 6-row, 8-pole configuration allows multiple circuits to be landed in a single strip, reducing installation time and improving wire management. This block is commonly installed by licensed electricians and panel integrators working to NEC guidelines.

Key Features

• 8-pole configuration with 6 rows for high-density terminations in compact enclosures
• Rated 600 volts and 60 amps for power and control circuit applications
• Accepts 22 to 6 AWG wire, covering both signal and power conductor sizes
• Nickel-plated brass contacts for reliable conductivity and corrosion resistance
• Polyester thermoplastic body rated from -40 to 266 degrees F for broad environmental tolerance
• CSA Certified, UL Listed (File E82048), RU Listed, and RoHS Compliant

Compatibility

Designed as an OEM-style multipole terminal block for use in electrical enclosures, control panels, and distribution assemblies requiring 600-volt, 60-amp multi-conductor termination with 22 to 6 AWG wire compatibility.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the panel or enclosure before landing or removing any conductors. Verify wire gauge and torque requirements for each conductor termination point per the enclosure and circuit specifications. Do not exceed the 60-amp or 600-volt ratings of the block under any operating condition.
