Ideal 89-5047 Insite Rg59 BNC Compression Connector Copper Connectors

Product Description

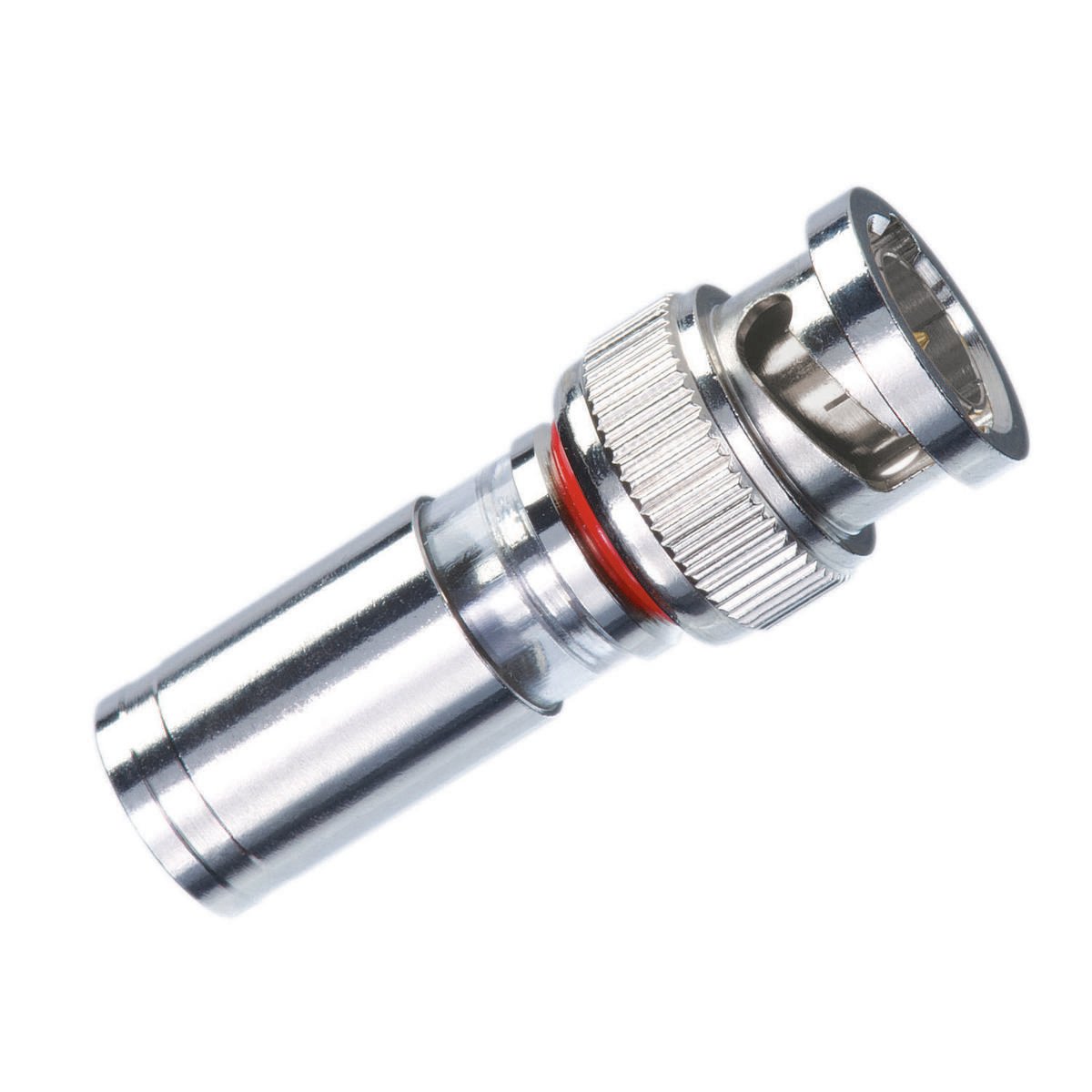

The Ideal 89-5047 is a BNC compression connector designed for RG-59 coax cables. This connector features a nickel-plated brass construction, ensuring high durability and resistance to corrosion. The unique design promotes an easy visual insertion check to guarantee proper cable placement before compression. It is suitable for various applications, including CCTV and broadband, operating within a frequency range of five megahertz to three gigahertz.

• Nickel-plated brass for corrosion resistance
• Moisture-inhibiting design suitable for indoor and outdoor use
• Compatible with RG-59 coax cables

Product Highlights

This connector simplifies the installation process with the patented InSITE Technology feature, allowing verification of the cable connection before final compression.

Product Information

Standard Information

• Brand: Ideal Industries
• Part Number: 89-5047

Technical Specifications

• Conductor Range: 029 - 042 inches, 20 - 18 AWG Solid Center Conductor
• Material: Brass
• Finish: Nickel-Plated
• Nominal Impedance: 75 Ohm
• Dielectric Diameter: 0.140 - 0.150 inches
• Overall Jacket Diameter: 0.220 - 0.250 inches
• Application: For CCTV system installations and general purpose applications on RG-59 cable
