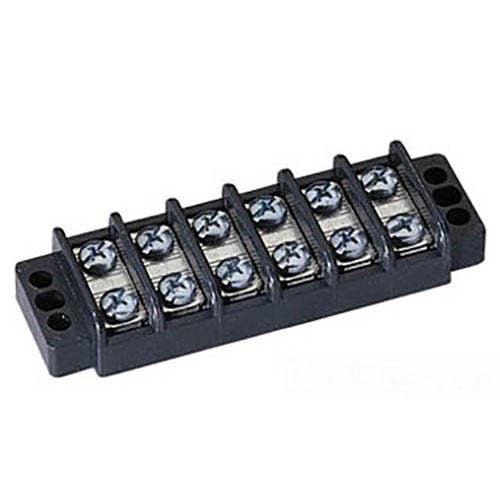

Ideal 89-312 Terminal Strip 20 AMP 12 Circuits

Product Description

The IDEAL 89-312 terminal strips are designed for ruggedness, reliability, and ease of use. Featuring a thermoplastic base and corrosion-resistant screws, these strips offer extended service life. This terminal strip accepts #22 to #14 AWG wire and has a center spacing of 0.375 inches. It is rated to 150V and 20A.

• Torque Rating of 9 in-lbs
• Rugged base eliminates breakage
• Accepts #22 to #14 AWG wire

Product Highlights

This IDEAL terminal strip is UL Recognized and CSA Certified. Accessory jumpers and hardware are available for versatile application.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 89-312
• Country of Origin: United States

Technical Specifications

• Catalog Number: 89-312
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: United States
• Made in USA: Yes
• Amperage Rating: 20
• Material: Zinc-Plated Steel Screw
• Standard: CSA, UL Listed, RoHS
• Voltage Rating: 150
• Wire Size: 22 - 14 AWG
• Number of Circuits: 12
• Torque Rating: 9 Lb-Inch
• Temperature Rating: -40 to 130 Deg C
• Housing Material: Rugged Polyester Thermoplastic
• Approval: UL, CSA
• Center Spacing: 0.375 Inch
• Screw Material: Zinc Plated Steel
• Terminal Type: #6-32 TPI Philips Slotted Screw
• Circuits: 12
• Volts AC: 150
• Amps: 20
• Poles: 12
• Allowable Gauge Range: 18 - 14
