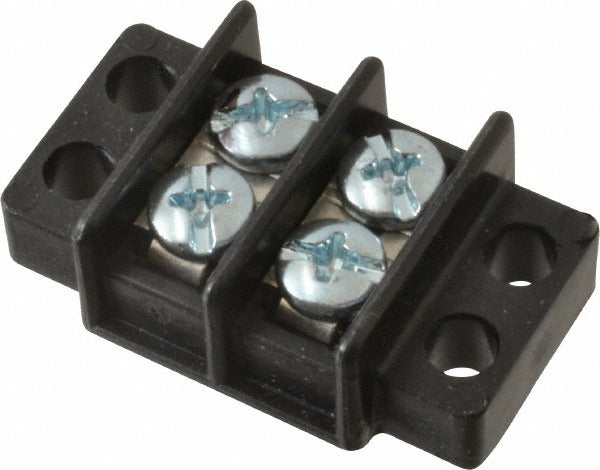

Ideal 89-302 Multipole Terminal Block 2 Pole 30A 300V

Product Description

The IDEAL 89-302 is a 2-pole multipole terminal block rated for 300 volts and 30 amps, designed for secure multi-conductor wire termination in control panels, junction boxes, and electrical enclosures. The block is constructed from black polyester thermoplastic with zinc-plated steel contacts, offering corrosion resistance in typical indoor electrical environments. It accepts wire gauges from 22 to 14 AWG and has an overall height of 0.41 inches and an overall length of 1.4 inches. Licensed electricians and panel builders use this block to organize and terminate low-voltage control wiring in residential and light commercial electrical systems.

The IDEAL 89-302 is suited for use in control wiring applications where compact, reliable termination is required. Its 6-row configuration and small footprint make it a practical choice for terminal strips inside electrical panels, HVAC control boards, and industrial enclosures. The operating temperature range of -40 to 266 degrees F allows deployment in a wide variety of installation environments, from cold storage facilities to mechanical rooms with elevated ambient temperatures.

Key Features

• 2-pole, 6-row multipole configuration for organized multi-conductor termination
• Rated 300 volts and 30 amps for reliable performance in control circuit applications
• Accepts 22 to 14 AWG wire for compatibility with common control wiring sizes
• Polyester thermoplastic block with zinc-plated steel contacts for durability
• Wide operating temperature range: -40 to 266 degrees F
• UL Listed, CSA Certified, and RoHS Compliant for code-compliant installations

Compatibility

Designed as an OEM-style replacement and general-use terminal block for control panel and electrical enclosure wiring applications requiring 22 to 14 AWG wire termination at up to 300 volts and 30 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before making any wire connections. Use a properly calibrated torque screwdriver if a torque specification is provided in the manufacturer installation sheet. Ensure wire gauge and insulation type are appropriate for the rated voltage and current of the circuit being terminated.
