Ideal 89-044 OmniConn RG-6 Compression Connector, 50-Pack

Product Description

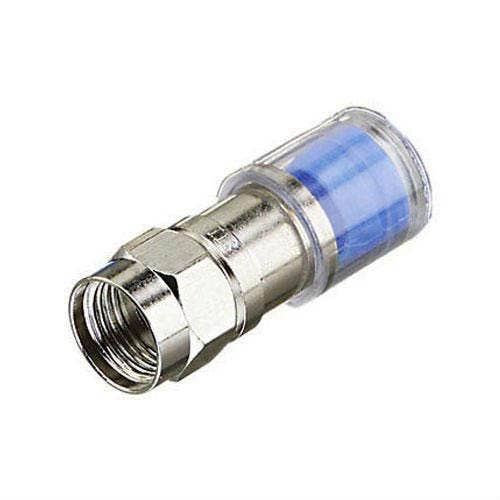

The IDEAL 89-044 OmniConn F connector is a cable-specific connector solution for RG-6 coax. These connectors feature a combination brass and plastic exterior and an inner O-ring to provide a weatherproof connection suitable for applications from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V applications indoors or outdoors.

• Accepts RG-6 coax cables
• Designed for use in cable and satellite TV installations
• WeatherProof - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use

Product Highlights

Ideal OmniConn F connectors require an industry-standard cable preparation and are permanently attached to the cable when using an IDEAL OmniSeal Pro or LinearX compression tool.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 89-044
• Country of Origin: CN

Technical Specifications

• ADI Part Number: IL-89044
• Brand Name: IDEAL Industries
• Manufacturer: IDEAL Industries, Inc
• Manufacturer Part Number: 89044
• Packaged Quantity: 50
• Product Line: DataCom
• Product Model: 6F0C
• Product Name: OmniCONN Audio/Video Connector
• Product Type: A/V Connector
• Impedance: 75 ohms
• Connector Type: F-Type
• Features: 2-Piece Pre-assembled, 75 ohms Impedance, RG-6
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
• Accepts: RG-6 coax cables
• Center conductor range: All
• Dielectric diameter range: .175 - .183
• Outer jacket diameter range: .260 - .280
• Recommended cable prep/stripping tools: 45-605 PrepPRO; 45-321
• Recommended compression tools: 30-793 OmniSeal PRO XL; 33-632 Linear X3
• Industry standard compressed length: 21mm
• Return loss: >30dB up to 3 GHz
• Frequency range: 0 MHz to 3 GHz
• Nut diameter: 7/16
• Thread: 3/8-32
• Cable Type: RG-6
• Series: OmniCONN
• Sheath Color: Blue
• Conductor Material: Brass
