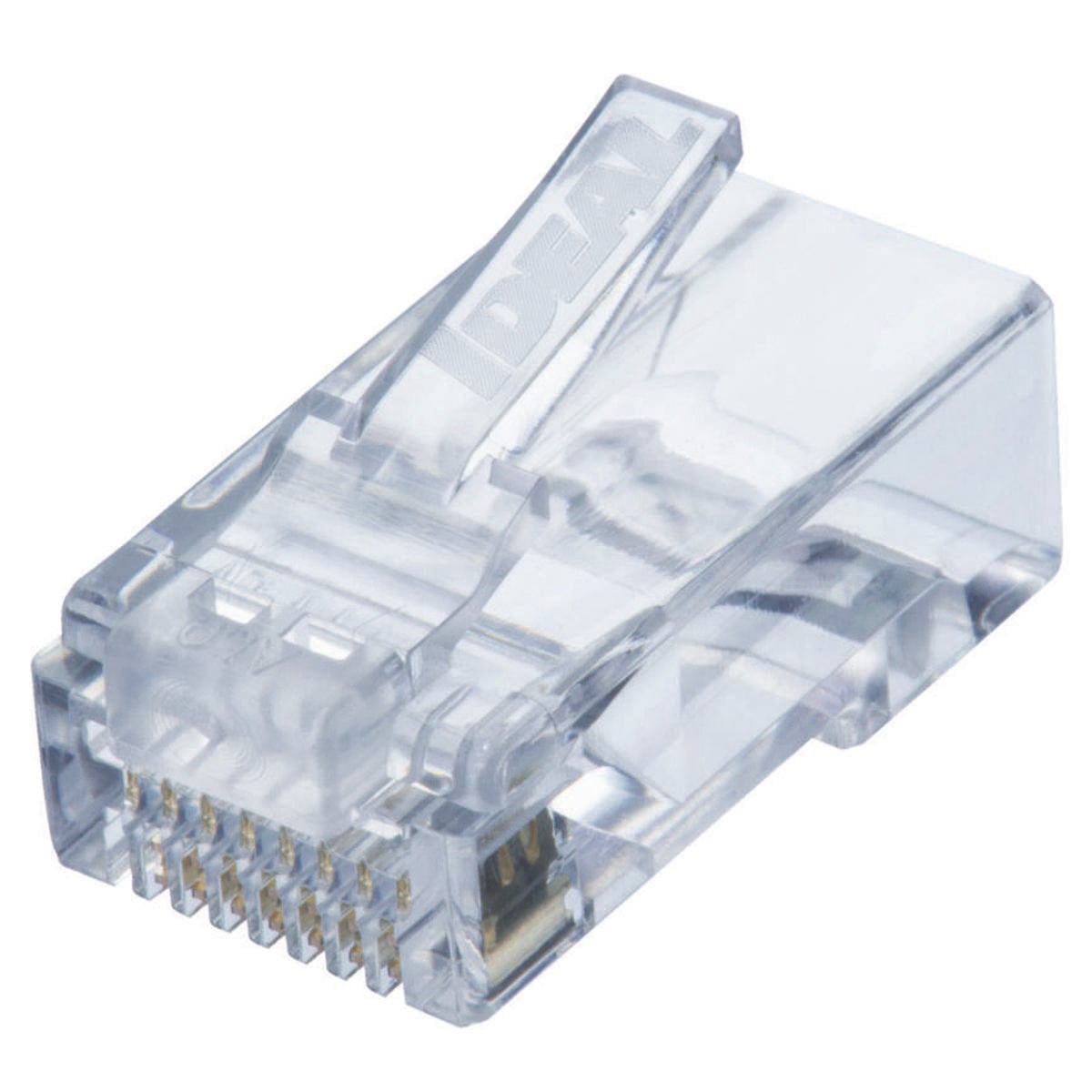

Ideal 85-375 Cat6 Feed-Thru Modular Plugs 25/Card

Product Description

The IDEAL 85-375 8P8C single piece modular plug is a Cat6 feed-thru design RJ-45 connector for twisted pair 250 MHz cables. This innovative feed-thru style connector allows conductors to be cut flush with the plug's end face when used with the FT-45 tool (30-495), preventing inadvertent contact. It maintains conductor spacing for reliable performance in Power over Ethernet (PoE) and data applications, ensuring secure and efficient network connections.

• First feed-thru style connector solution for CAT6 8P8C applications.
• Enables flush cutting of excess conductors with the FT-45 tool (30-495), minimizing contact issues.
• Maintains conductor spacing for reliable performance in PoE and data network applications.

Product Highlights

Innovative feed-thru design simplifies termination and ensures secure, high-performance CAT6 connections.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 85-375
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• MPN: 85-375
• Manufacturer: Ideal Industries
• Brand: Ideal
• Cable Size: 24-23 AWG Solid/Stranded
• Cable Type: Category 6
• Impedance: 50 ̑
• Material: Plastic
• Number of Positions: 8
• Type: Feed Through
• UPC: 783250853755
• Color: Clear
• Standards: California Proposition 65
• Product Range: Feed-Thru CAT6
• Modular Connector Type: RJ45 Plug
• Port Configuration: 1 x 1 (Port)
• Contact Configuration: 8P8C
• Connector Mounting: Cable Mount
• Connector Orientation: Straight
• Shielding: Unshielded
• Magnetics: Without Magnetics
• LEDs: Without LED
• Light Pipes: Without Light Pipe
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
