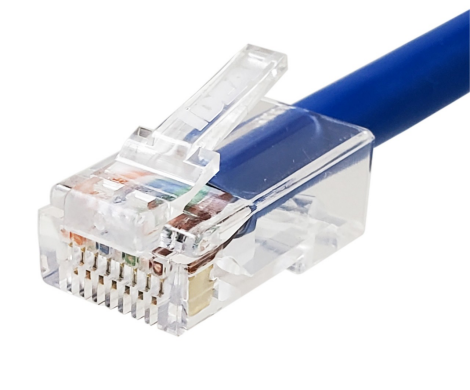

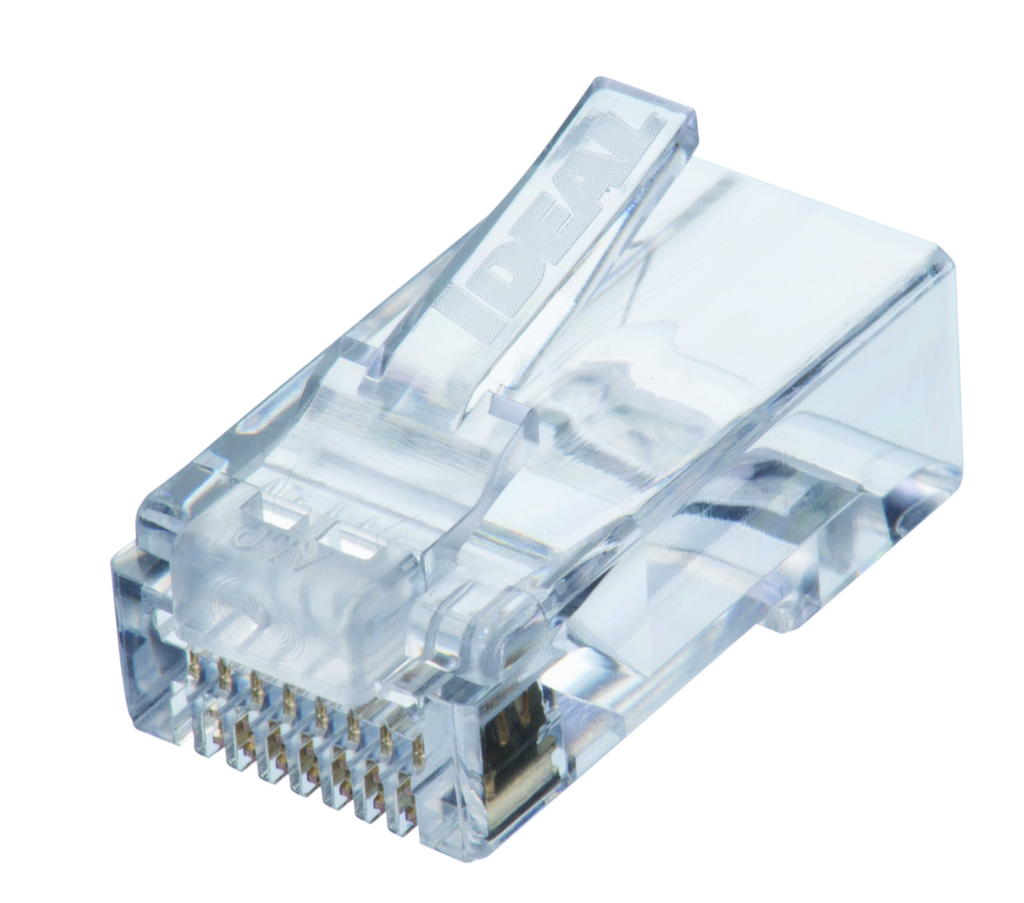

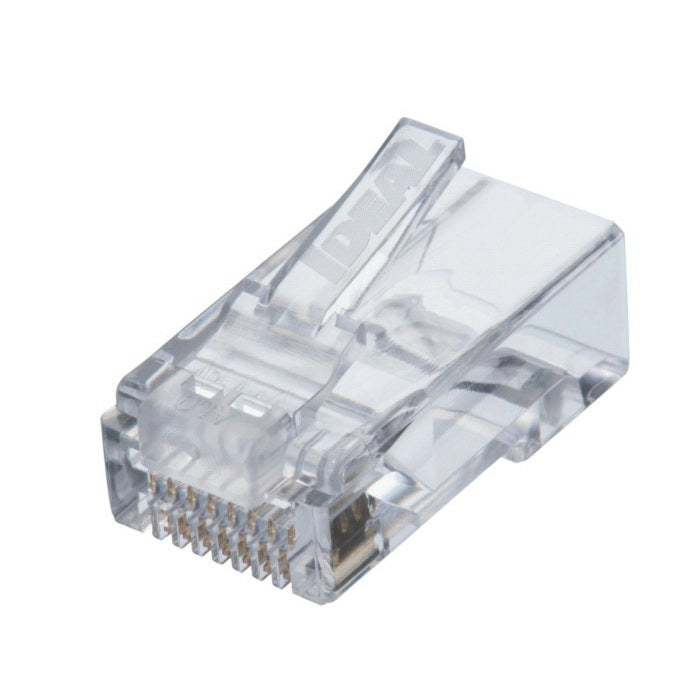

Ideal 85-367 cat6 rj-45 8p8c 1-piece modular plugs 25-pack

Product Description

The IDEAL 85-367 is a CAT6 RJ-45 8P8C 1-Piece Modular Plug designed to simplify assembly for network connections. These connectors feature 50 micron gold contacts and are suitable for both solid and stranded 23-24 AWG conductors. They are compatible with IDEAL 30-696, 30-496, and 33-396 Modular Plug Crimp Tools, supporting TIA/EIA 100 Ohm cable wiring standards for 250 MHz/1GB applications. The single-piece design streamlines the termination process for unshielded CAT6 cables.

• Single-piece design to simplify assembly
• 50 micron gold contacts, 8-position, 8-contact
• Suitable for solid or stranded conductors 23-24 AWG

Product Highlights

Single-piece CAT6 RJ-45 modular plugs with 50 micron gold contacts for 23-24 AWG conductors.

Product Information

Standard Information

• Brand: IDEAL INDUSTRIES
• Manufacturer Part Number: 85-367
• Country of Origin: Taiwan

Technical Specifications

• Color: Clear
• Brand: IDEAL
• Manufacturer: IDEAL Industries, Inc
• Product Line: DataCom
• Product Name: Network Connector
• Product Type: Network Connector
• Connector Type: RJ 45 Network Male
• Product Series: Modular Plugs
• Connector Details: 1 x RJ-45 Network Male
• Packaged Quantity: 25
• Number of Contacts: 8
• Network Category: CAT6
• Total Number of Ports: 1
• Plug Size: 8-Contact 8-Postion
• Conductor Type: Solid or Stranded
• Cable Type: Twisted Pair
• Conductor Size: 24 to 23 AWG
• Material: Plastic
• Standards/Approvals: RoHS Compliant
• Contact Plating: Gold
• Shielding: No
• Country of Origin: TW
• Termination Method: Crimp
• Impedance: 100 Ohm
• Feed-Thru: No
• Conductor Material: Copper
• Max Cable Jacket Outer Diameter: .290"
• Specification Met: EIA, TIA
