Product Description

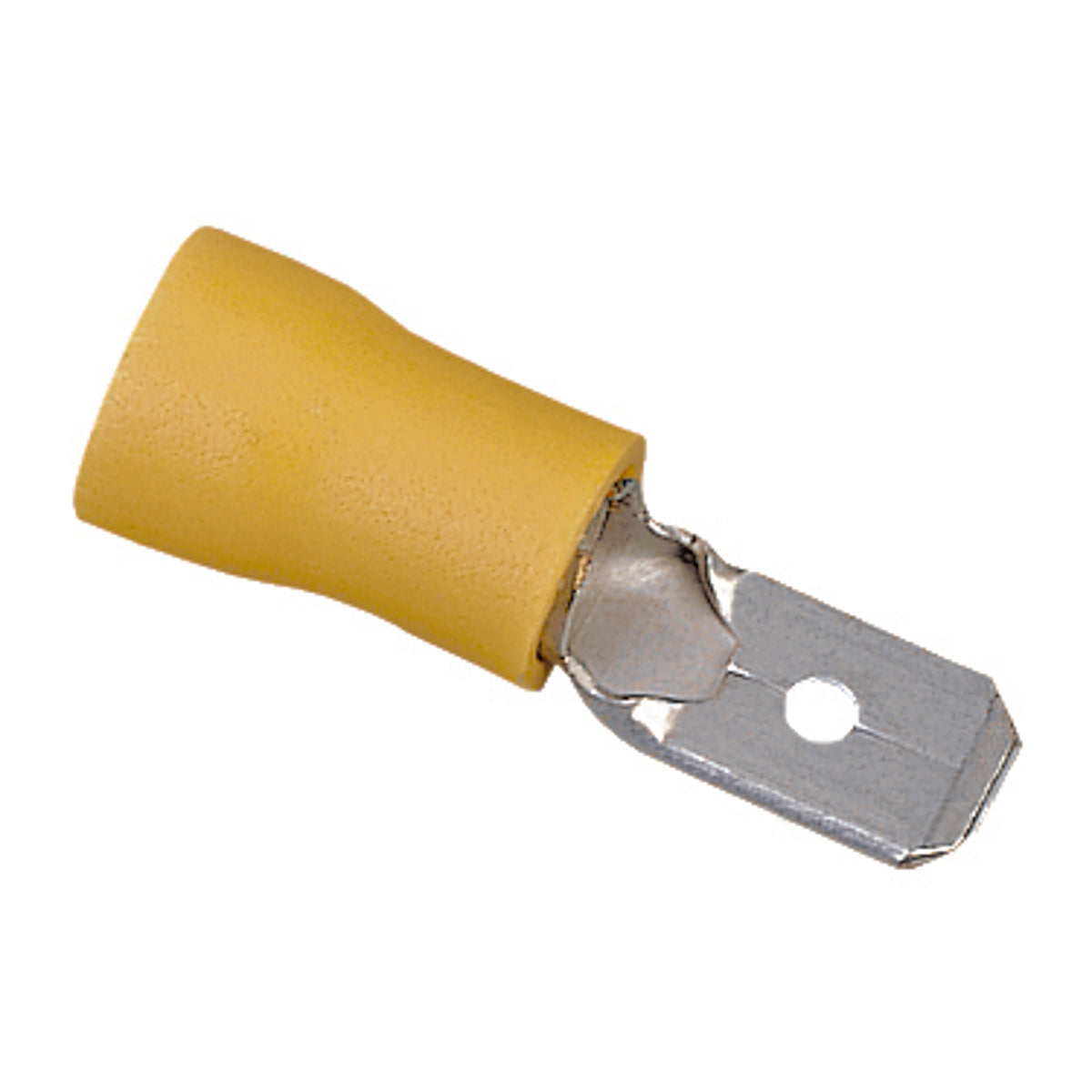

The Ideal 83-9991 is a male terminal designed for cable sizes 12 to 10 AWG with vinyl insulation. This terminal features a tab size of zero point two five zero by zero point three two inches. It is suitable for various electrical applications, ensuring secure wire connections.
- Butted seam construction prevents splitting under pressure
- Internal barrel serrations grip wires to resist pull-out
- Tin-plated brass for corrosion resistance
Product Highlights
This terminal is ideal for electrical systems, offering different wire range options. Its insulation provides additional support and helps maintain reliable connections.
Product Information
Standard Information
-
Catalog Number: 83-9991
-
Manufacturer: Ideal Industries
Technical Specifications
-
Country of Origin: Taiwan, Province Of China
-
Insulation: Vinyl Insulated
-
Special Features: Tin-Plated Brass Construction, Brazed or Butted Seams, Funnel Entry Insulators
-
Standard: UL Listed, RoHS Compliant
-
Voltage Rating: 300 VAC
-
Conductor Size: 12 to 10 AWG
-
Temperature Rating: 75 deg C
-
Minimum Order Quantity: 25
