Product Description

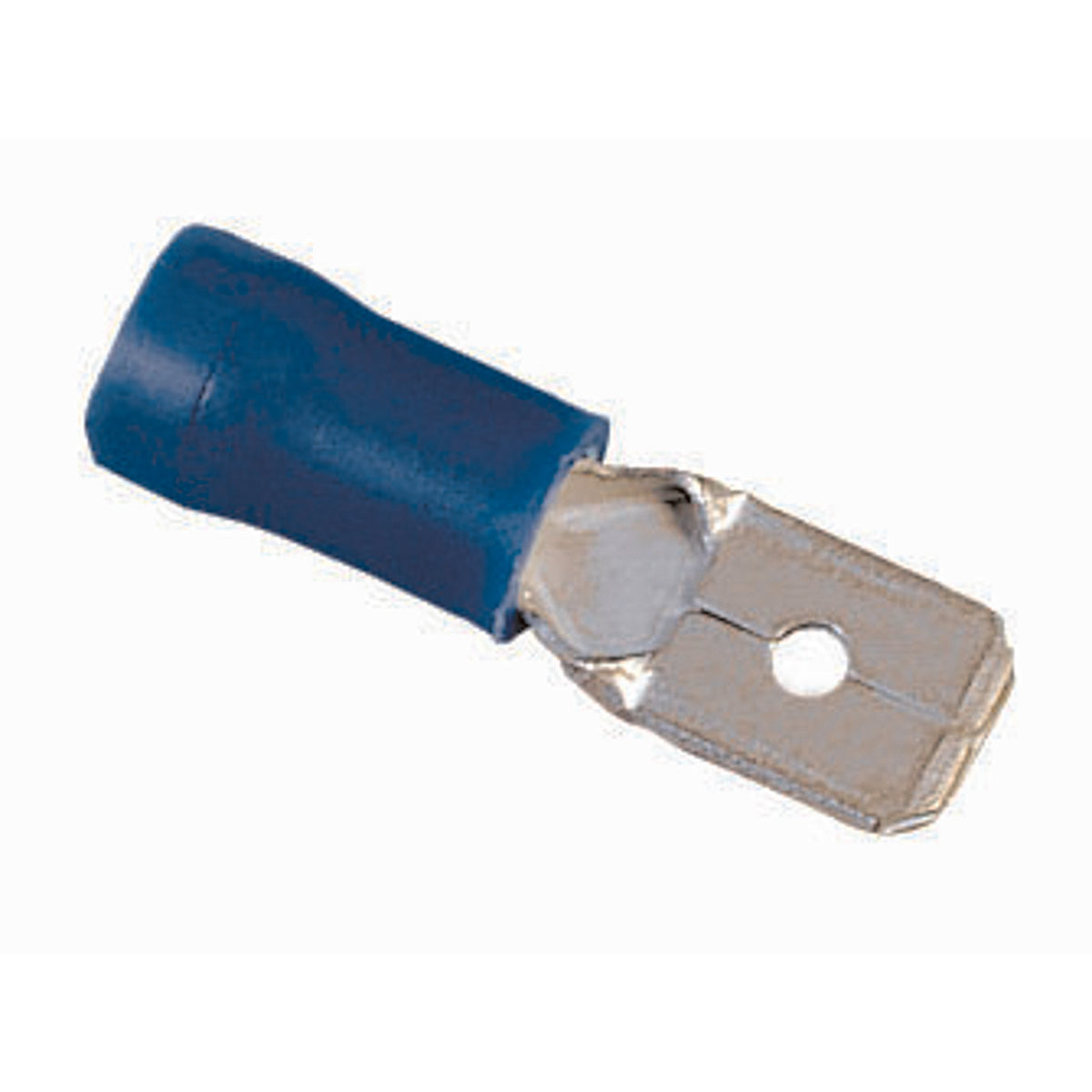

The Ideal 83-9981 is a male terminal suitable for wire sizes 16 to 14 AWG. It features vinyl insulation and a tab size of 0.250 x 0.032 inches. This terminal is designed for reliable connections in various electrical applications.
- Butted seam construction to prevent splitting under maximum pressure.
- Tin-plated brass for corrosion resistance.
- Internal barrel serrations grip wires tightly for reduced pull-out risk.
Product Highlights
This terminal is part of a comprehensive line of IDEAL crimp terminals, offering options for all wire ranges. It is designed for easy identification and storage with color-coded insulation.
Product Information
Standard Information
-
Catalog Number: 83-9981
-
Manufacturer: Ideal Industries
Technical Specifications
-
Cable Size: 16 - 14 AWG
-
Insulation: Vinyl Insulated
-
Material: Tin-Plated Brass
-
Tab Size: 0.250 x 0.032 inches
-
Voltage Rating: 300 VAC
-
Temperature Rating: 75 degrees C
-
Standards: UL Listed, RoHS Compliant
-
Country of Origin: Taiwan, Province Of China
