Product Description

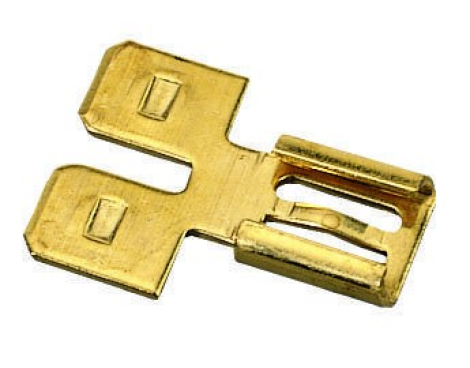

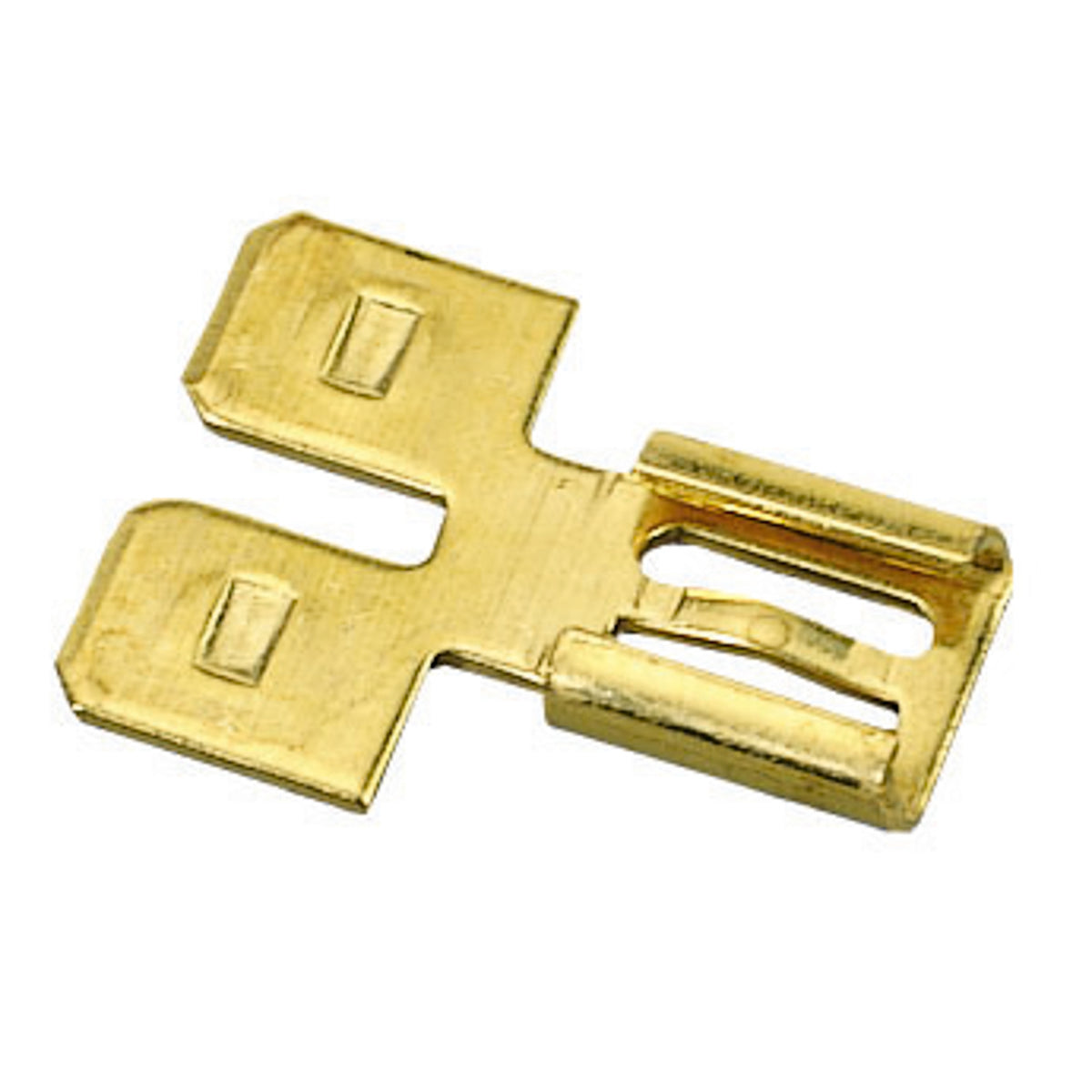

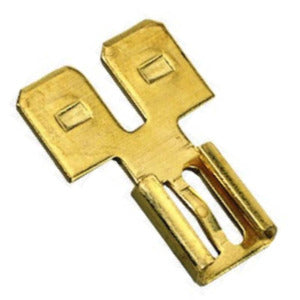

The IDEAL 83-9801 disconnect adapter is designed for durability and ease of use. This non-insulated adapter features butted seam-construction to prevent splitting under maximum pressure and internal barrel serrations to grip wires tightly. It has a voltage rating of 300V and a tab size of 0.250 IN x 032 IN.
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out
- Tin-plated brass construction for corrosion resistance
Product Highlights
This IDEAL disconnect adapter ensures secure connections and is suitable for various electrical systems. It comes in a pack of 25.
Product Information
Standard Information
-
Brand: IDEAL
-
Manufacturer Part Number: 83-9801
-
Country of Origin: Taiwan, Province Of China
Technical Specifications
-
Catalog Number: 83-9801
-
Manufacturer: Ideal Industries
-
Brand: Ideal
-
Country of Origin: Taiwan, Province Of China
-
Made in USA: No
-
Connection: Male To Female (2-1)
-
Special Features: Tab Size: 0.250 IN x 032 IN; Temperature Rating: 105 DEG C
-
Standard: RoHS
-
Voltage Rating: 300
-
Termination Method: Push-in
-
Maximum Rated Voltage: 300V
-
Maximum Temperature (C): 105°C
-
Number of Poles: 2
-
Stud Size: 1/4 in
-
Terminal Type: Tab
-
Wire Type: Solid, Stranded
-
Insulated: No
-
Number of Ports: 1
-
Finish: Tin Plated
-
Material: Brass
-
Temperature Rating: 221 deg F
-
Length: 0.551 in
-
Specifications: Male to Female (2-1), 0.25 x 0.032 in Tab
-
Type: Wire Connector
-
Width: 0.26"
-
Maximum Temperature: 105°C
-
Maximum Voltage: 300 V
