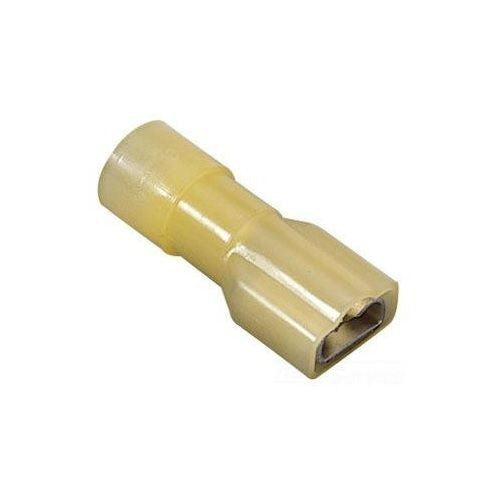

Ideal 83-9791 Disconnect Terminal Fully Insulated 12 - 10 AWG

Product Description

The IDEAL 83-9791 disconnect terminal is a fully insulated terminal designed for electrical systems. It accommodates wire sizes from 12 to 10 AWG and features butted seam construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. Tin-plated brass construction provides corrosion resistance.

• Tin-plated brass construction for corrosion resistance
• Brazed or butted seams prevent splitting
• Funnel entry insulators

Product Highlights

This IDEAL disconnect terminal ensures secure and reliable connections in various electrical applications, offering durability and ease of use.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9791
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9791
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.244 IN Diameter
• Material: Brass, Nylon
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Fully Insulated
• Voltage Rating: 300 VAC
• Wire Size: 12 - 10 AWG
• Tab Size: 0.25 x 0.032 In
• Temperature Rating: 221 Deg F
• Plating: Tin Plated
• Maximum Insulation Dia: 0.244 in
• Barrel Type: Butted/Brazed
