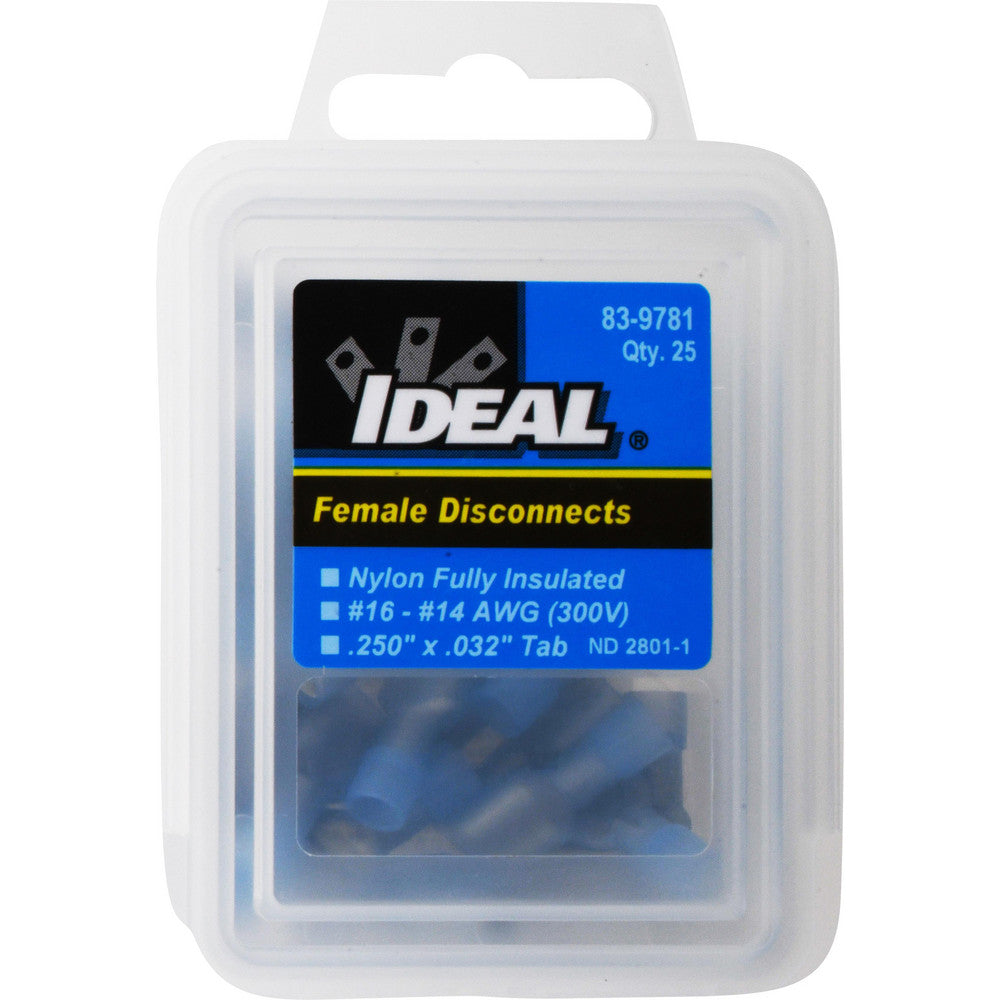

Ideal 83-9781 Disconnect Terminal Fully Insulated 16 - 14 AWG

Product Description

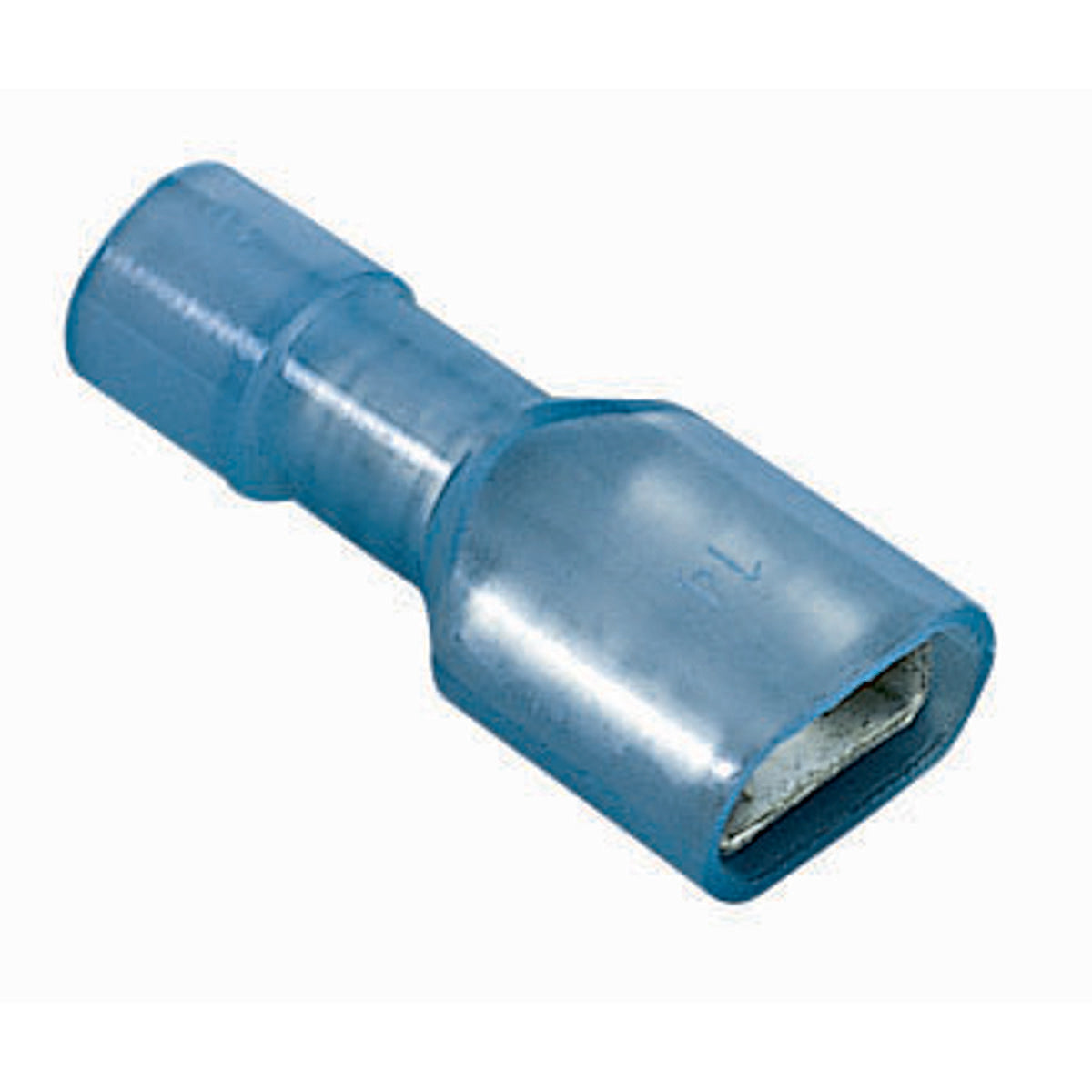

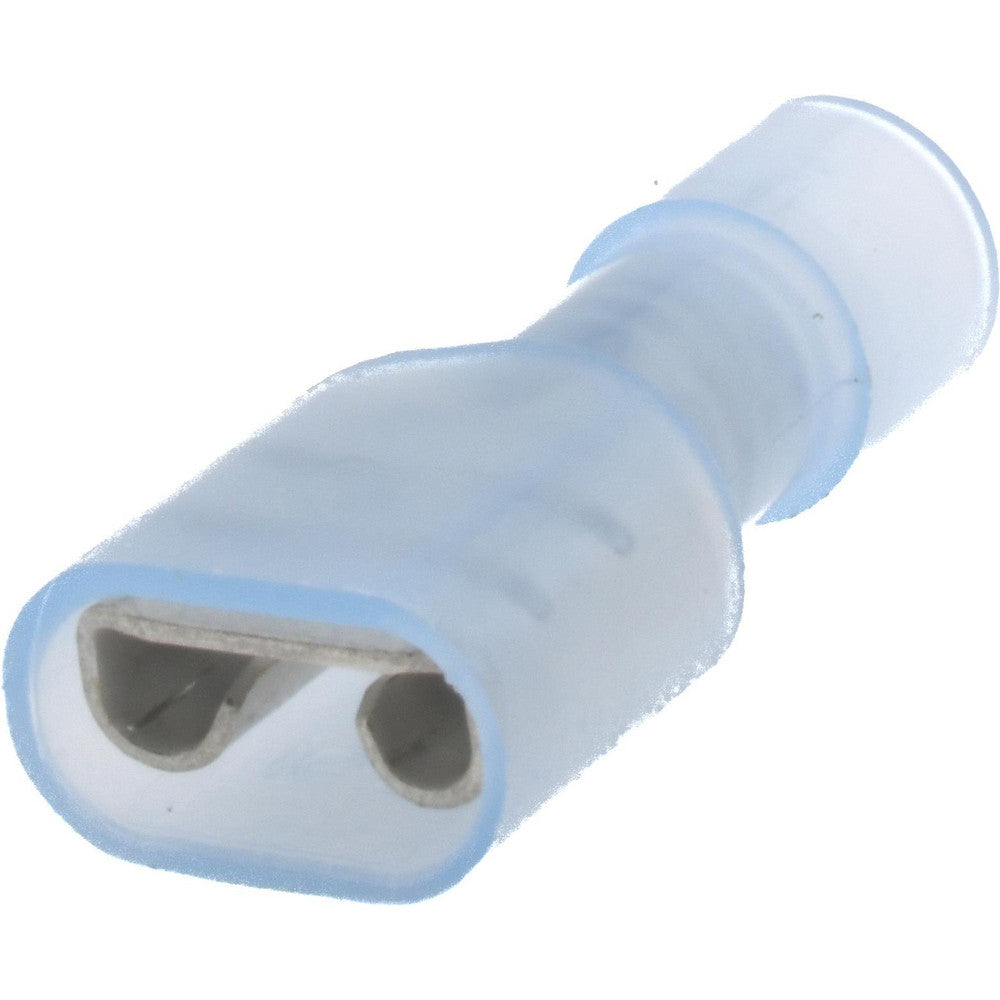

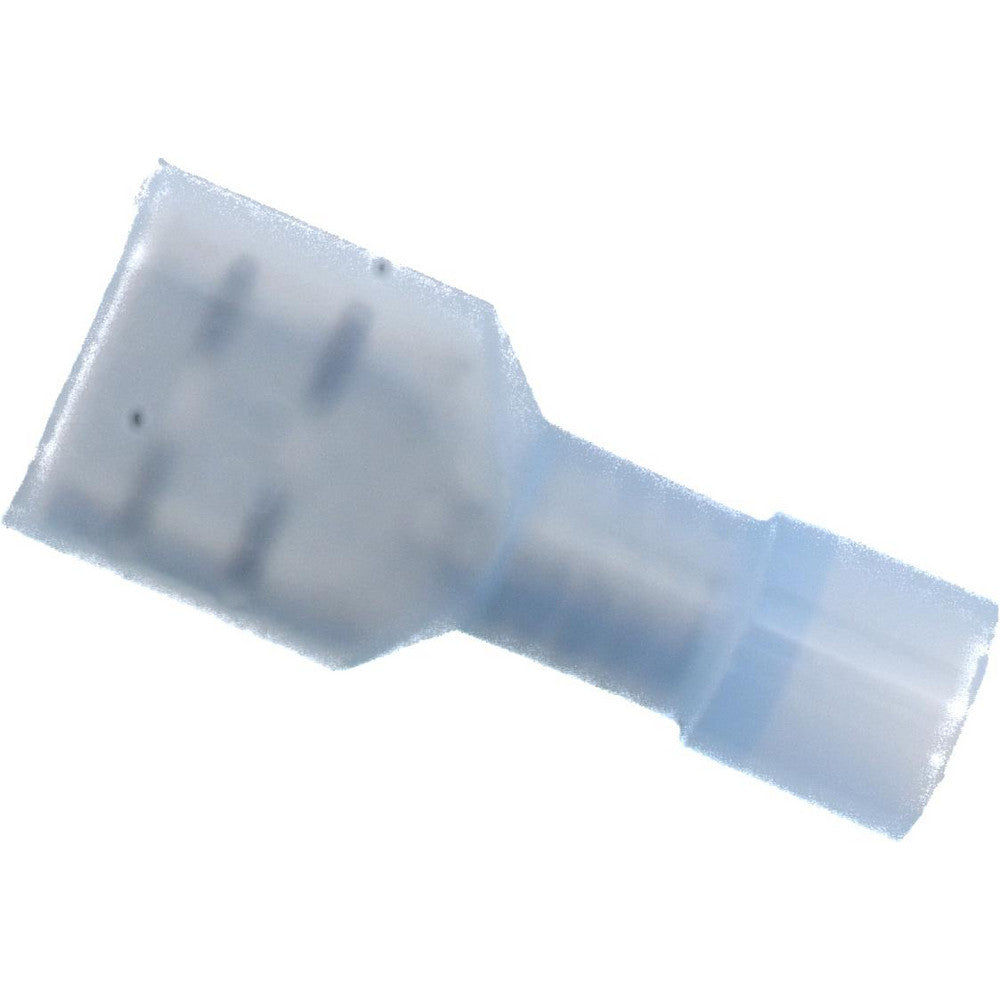

The IDEAL 83-9781 is a fully insulated disconnect terminal designed for electrical systems. Constructed with tin-plated brass for corrosion resistance, it features brazed or butted seams to prevent splitting under pressure. The shouldered barrel insulation quickly positions the terminal for proper crimping. It is designed for wire sizes 16 - 14 AWG and a voltage rating of 300V.

• Tin-plated brass construction for corrosion resistance
• Brazed or butted seams prevent splitting
• Funnel entry insulators
• Beveled barrel openings provide easy wire entry
• Clearly marked wire and stud ranges
• Color-coded insulation

Product Highlights

This fully insulated disconnect terminal ensures secure and reliable connections in various electrical applications. Its durable construction and thoughtful design make it a dependable choice for any electrical project.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9781
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9781
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Material: Brass, Nylon
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Fully Insulated
• Voltage Rating: 300 V
• Wire Size: 16 - 14 AWG
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: Nylon Fully Insulated
• Temperature Rating: 105 Deg C
• Approval: UL 774A, CUL
• Barrel Type: Brazed/Butted Seam
• Termination Method: Crimp
• Maximum Temperature (C): 221°F (105°C)
• Stud Size: 1/4" (0.64 cm)
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Gender: Female
• Tab Width (Decimal Inch): 1/4
• Compatible Wire Size (AWG): 16-14
• Standards: UL Listed 774A; RoHS Compliant; cUL Listed
• UNSPSC Code: 39121409
• Connector Style: Disconnect
• Body Material: Nylon
• UPC: 783250490677
