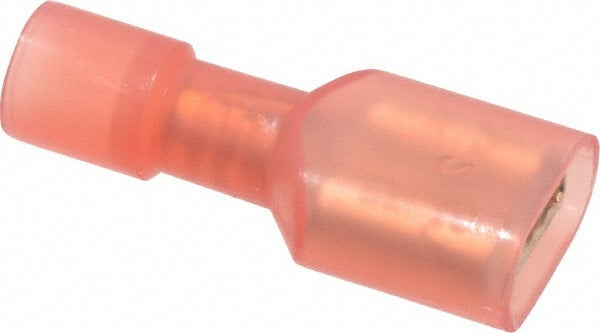

Ideal 83-9771 Female Wire Disconnect 22-18 Awg 1/4 in

Product Description

The IDEAL 83-9771 is a fully insulated female wire disconnect designed for quick-connect and quick-release wiring terminations in low-voltage and line-voltage electrical applications. Rated for 22 to 18 AWG wire, it accepts a 1/4 inch tab and features a vinyl insulation jacket in red for easy identification by gauge range. The connector body provides full insulation coverage over the terminal barrel, reducing the risk of accidental contact with energized conductors. Electricians, HVAC technicians, and panel wiring professionals use these disconnects when terminating control wiring, appliance leads, and equipment harnesses where tool-free disconnection is required in the field.

This disconnect is suited for residential and light commercial wiring tasks including control board connections, appliance wiring, relay terminations, and general panel wiring. The red vinyl insulation indicates compatibility with the 22 to 18 AWG wire range, making it straightforward to match the correct terminal to the wire gauge on hand. Applications include thermostat wiring, motor control circuits, and equipment repair work where a reliable, removable terminal connection is needed without soldering or permanent joining.

Key Features

• Female disconnect configuration accepts standard 1/4 inch male tab terminals
• Full vinyl insulation reduces exposure to live metal during and after termination
• Compatible with 22 to 18 AWG copper wire
• Red insulation color provides quick visual identification of the correct gauge range
• cUL Listed and UL Listed 774A for use in recognized electrical assemblies
• RoHS Compliant construction for use in applications with restricted hazardous substance requirements

Compatibility

Designed as an OEM-style replacement and general-use female disconnect for 22 to 18 AWG wire terminations requiring a 1/4 inch tab connection in residential and light commercial electrical and HVAC control wiring.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians. De-energize the circuit and verify absence of voltage before terminating or removing any connector. Use a properly calibrated wire stripper and a ratcheting crimp tool rated for insulated vinyl disconnects to achieve a secure, gas-tight crimp. NEC guidelines for wire termination and connector ratings should be followed for the specific circuit application.
