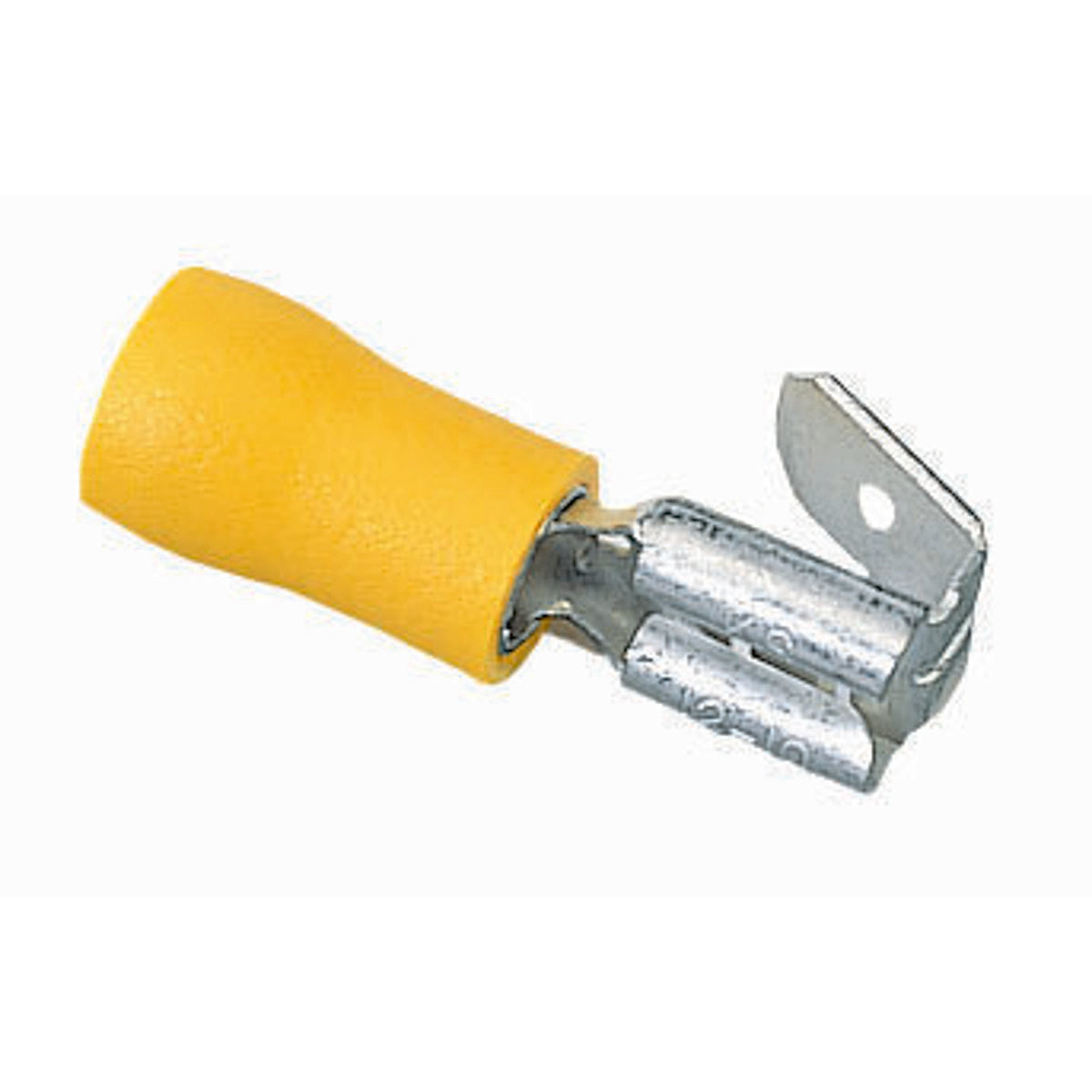

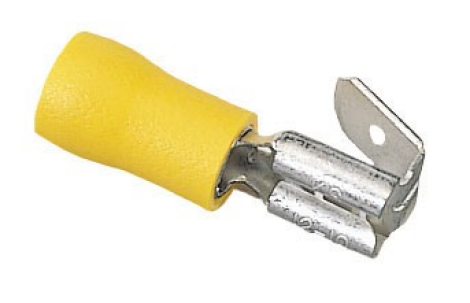

Ideal 83-9631 stack disconnect vinyl insulated multi 12 - 10 AWG (pack of 25)

Product Description

The IDEAL 83-9631 stack disconnect is a vinyl insulated multi disconnect designed for wire sizes 12 to 10 AWG. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations to grip wires tightly. The disconnect is constructed from tin-plated brass for corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
• Color-coded for easy identification

Product Highlights

This IDEAL vinyl insulated multi-stack disconnect ensures secure and reliable electrical connections for a variety of applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9631
• Country of Origin: Taiwan

Technical Specifications

• Catalog Number: 83-9631
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Insulation: 0.244 IN Diameter
• Special Features: Tab Size: 0.250 IN X 032 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated Multi
• Voltage Rating: 300 V
• Wire Size: 12 - 10 AWG
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Temperature (C): 75°C
• Number of Poles: 2
• Stud Size: 1/4"
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Material: Brass
• Temperature Rating: 75 deg C
• Type: Insulated
• Conductor Size: 12 to 10 AWG
• Finish: Tin Plated
• Standard & Approvals: cUL Listed, RoHS Compliant
• Length: 0.945 in
• Specifications: 0.244 in Maximum Insulation Dia, 0.25 in x 0.032 in Tab Size
