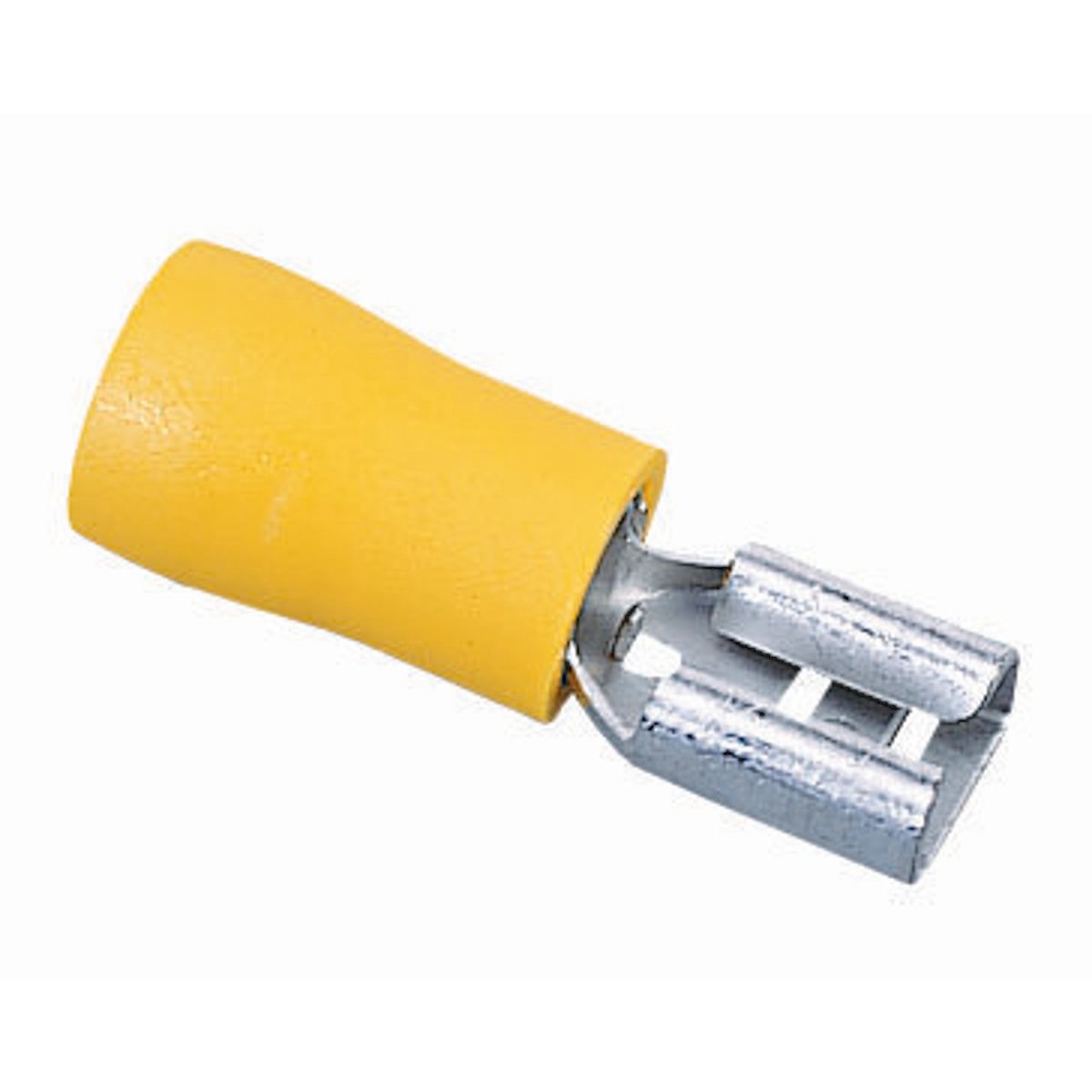

Ideal 83-9601 terminal fem disc 12to10awg shouldered

Product Description

The Ideal 83-9601 female disconnect terminal is designed for 12 to 10 AWG conductors with a 0.25 x 0.032 inch tab. It features a shouldered barrel and is a crimp-type terminal, suitable for up to 300 VAC. The insulated terminal has a 0.244 inch diameter insulation and is constructed from brass with a TiN plating, designed to withstand temperatures up to 75 degrees C.

• Butted seam-construction prevents splitting under maximum pressure
• Color coded insulation
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance

Product Highlights

This Ideal female disconnect terminal ensures secure and reliable connections in various electrical systems. Its durable construction and thoughtful design make it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9601
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Finish: TiN Plated
• Tab Size: 0.25 x 0.032 in
• Insulated: Insulated
• Barrel Type: Shouldered
• Manufacturer: Ideal Industries
• Terminal Type: Crimp
• Conductor Size: 12 to 10 AWG
• Voltage Rating: 300 VAC
• Temperature Rating: 75 deg C
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Material: Brass
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Type: Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Approval: UL 774A, CUL
• Wire Insulation Diameter: 0.244 Inch
• Termination Method: Crimp
• Maximum Temperature (C): 75°C
• Stud Size: 1/4"
• Wire Type: Solid, Stranded
• Wire Size: 12-10 AWG
