Ideal 83-9601 Terminal Fem Disc 12To10Awg Shouldered

Product Description

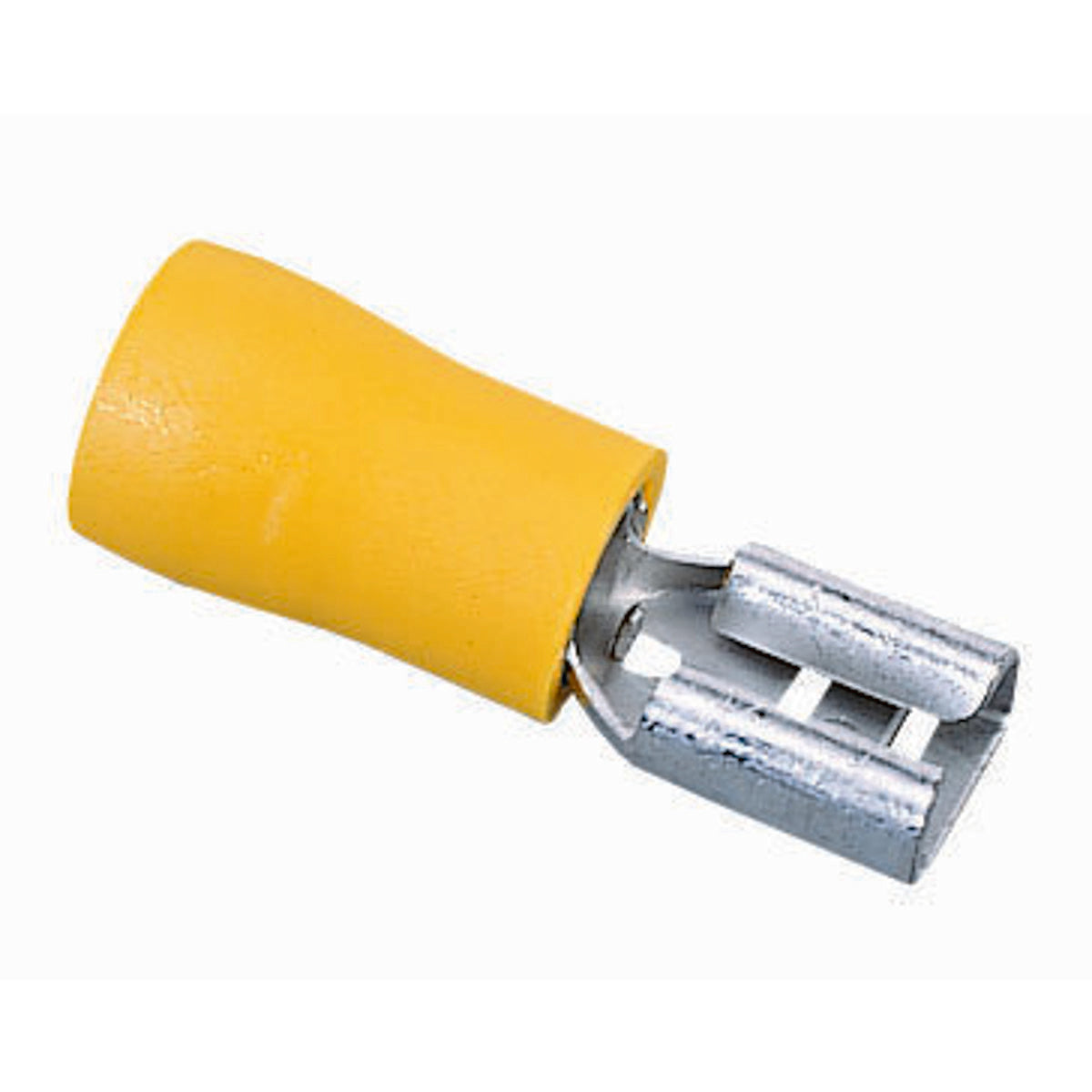

The Ideal 83-9601 female disconnect terminal is designed for 12 to 10 AWG conductors with a 0.25 x 0.032 inch tab. It features a shouldered barrel and crimp terminal type, suitable for electrical systems. The terminal has a voltage rating of 300 VAC and a temperature rating of 75 degrees C.

• Butted seam-construction prevents splitting under maximum pressure.
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.
• Tin plated brass construction for corrosion-resistance.

Product Highlights

This Ideal female disconnect terminal ensures secure connections with its shouldered barrel and corrosion-resistant construction.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9601
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Tab Size: 0.25 x 0.032 in
• Insulated: Insulated
• Barrel Type: Brazed/Butted Seam
• Manufacturer: Ideal Industries
• Terminal Type: Tab
• Conductor Size: 12 to 10 AWG
• Voltage Rating: 300 VAC
• Temperature Rating: 75 deg C
• Material: Tin-Plated Brass
• Standard: CUL Listed, RoHS
• Wire Size: 12 - 10 AWG
• Type: Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Approval: UL 774A, CUL
• Wire Insulation Diameter: 0.244 Inch
• Termination Method: Crimp
• Maximum Rated Voltage: 600 V
• Maximum Temperature (C): 75°C
• Maximum Wire Gauge: 12 AWG
• Minimum Wire Gauge: 10 AWG
• Wire Type: Solid, Stranded
