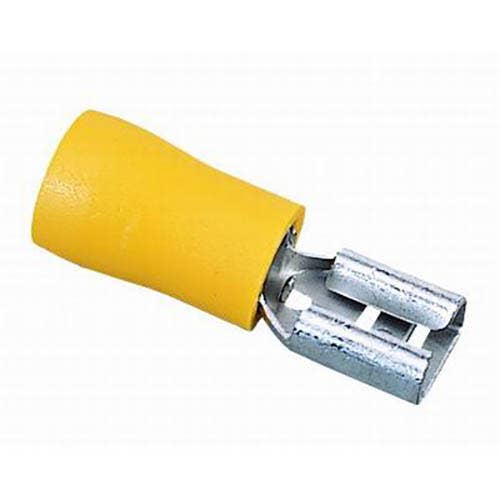

Ideal 83-9591 disconnect terminal vinyl insulated 14 - 12 AWG

Product Description

The IDEAL 83-9591 disconnect terminal is a vinyl insulated female disconnect designed for electrical systems. It features tin-plated brass construction for corrosion resistance and butted seams to prevent splitting. The shouldered barrel insulation helps with proper crimping. This terminal is color-coded for easy identification.

• Tin-plated brass construction for corrosion resistance
• Brazed or butted seams prevent splitting
• Funnel entry insulators
• Beveled barrel openings provide easy wire entry

Product Highlights

This IDEAL disconnect terminal ensures secure connections and easy identification in various electrical applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9591
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9591
• Manufacturer: Ideal
• Brand: IDEAL
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Material: Brass
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 V
• Wire Size: 14 - 12 AWG
• Wire Gauge: #14 To #12 AWG
• Temperature Rating: 75 deg C
• Terminal Type: Female Quick Disconnect
• Tab Size - Metric: 6.35mm x 0.81mm
• Tab Size - Imperial: 0.25" x 0.032"
• Wire Size AWG Min: 14AWG
• Wire Size AWG Max: 12AWG
• Insulator Material: Vinyl
• Conductor Area CSA: 4mm²
