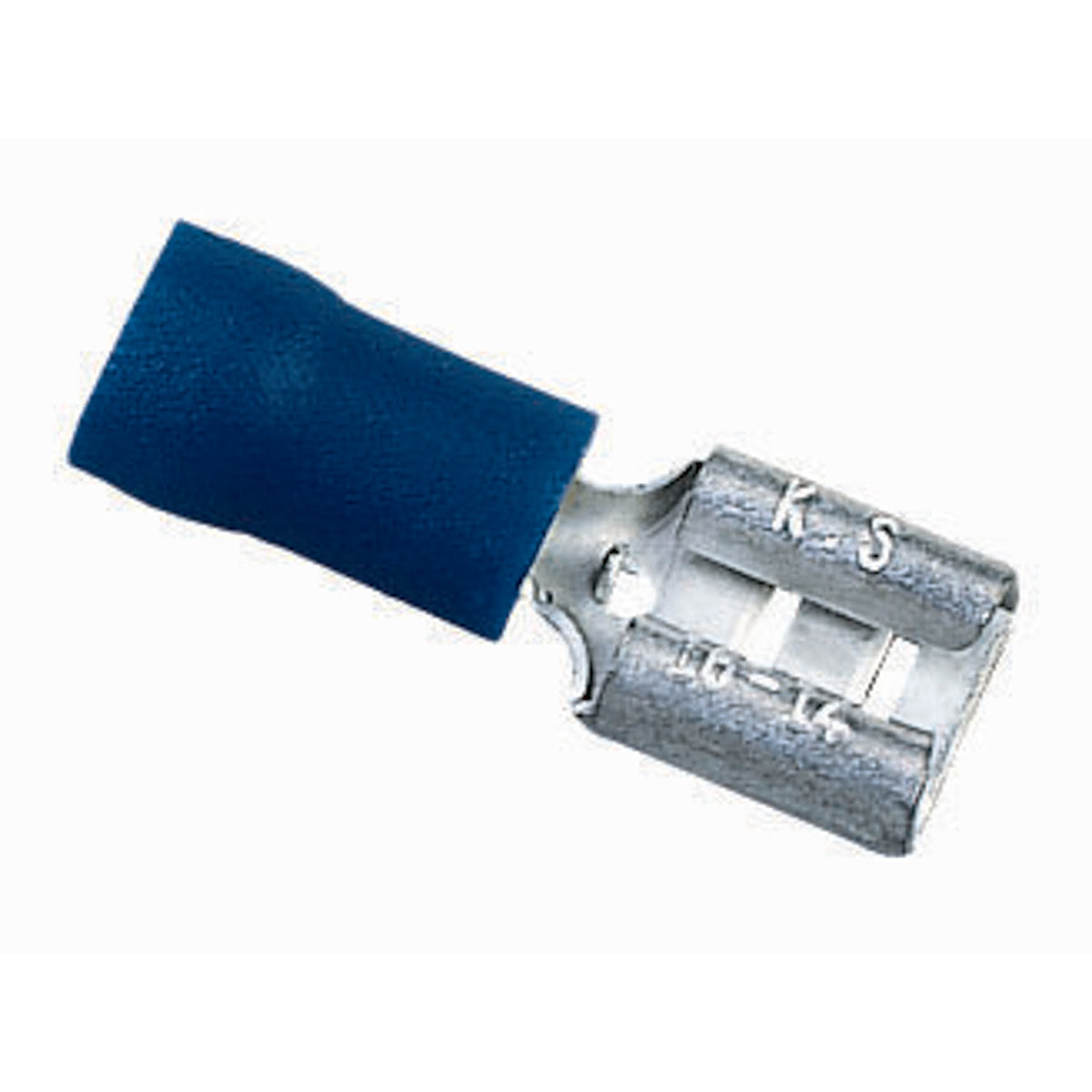

Ideal 83-9581 Disconnect Terminal Vinyl Insulated Wire Size 16 - 14 AWG

Product Description

Ideal 83-9581 is a disconnect terminal designed for wire sizes ranging from sixteen to fourteen American wire gauge (AWG). It features a voltage rating of 300 volts and is made from brass with a tin-plated finish. The terminal has a diameter of zero point one eight five inches and includes a female connection compatible with tab sizes of zero point two five zero inches by zero point zero three two inches. The operating temperature is rated at seventy-five degrees Celsius.

• Vinyl insulated for enhanced safety
• Constructed with tin-plated brass for corrosion resistance
• Features a shouldered barrel for quick and accurate crimping

Product Highlights

This terminal is integral for secure electrical connections in various applications, ensuring reliability and superior performance.

Product Information

Standard Information

• Catalog Number: 83-9581
• Manufacturer: Ideal Industries

Technical Specifications

• Connection: Female
• Material: Brass
• Finish: Tin-Plated
• Insulation Diameter: 0.185 inches
• Wire Size: 16 - 14 AWG
• Voltage Rating: 300 volts
• Temperature Rating: 75 degrees Celsius
• Special Features: Color-coded insulation for easy identification
• Standard Compliance: CUL Listed, RoHS
