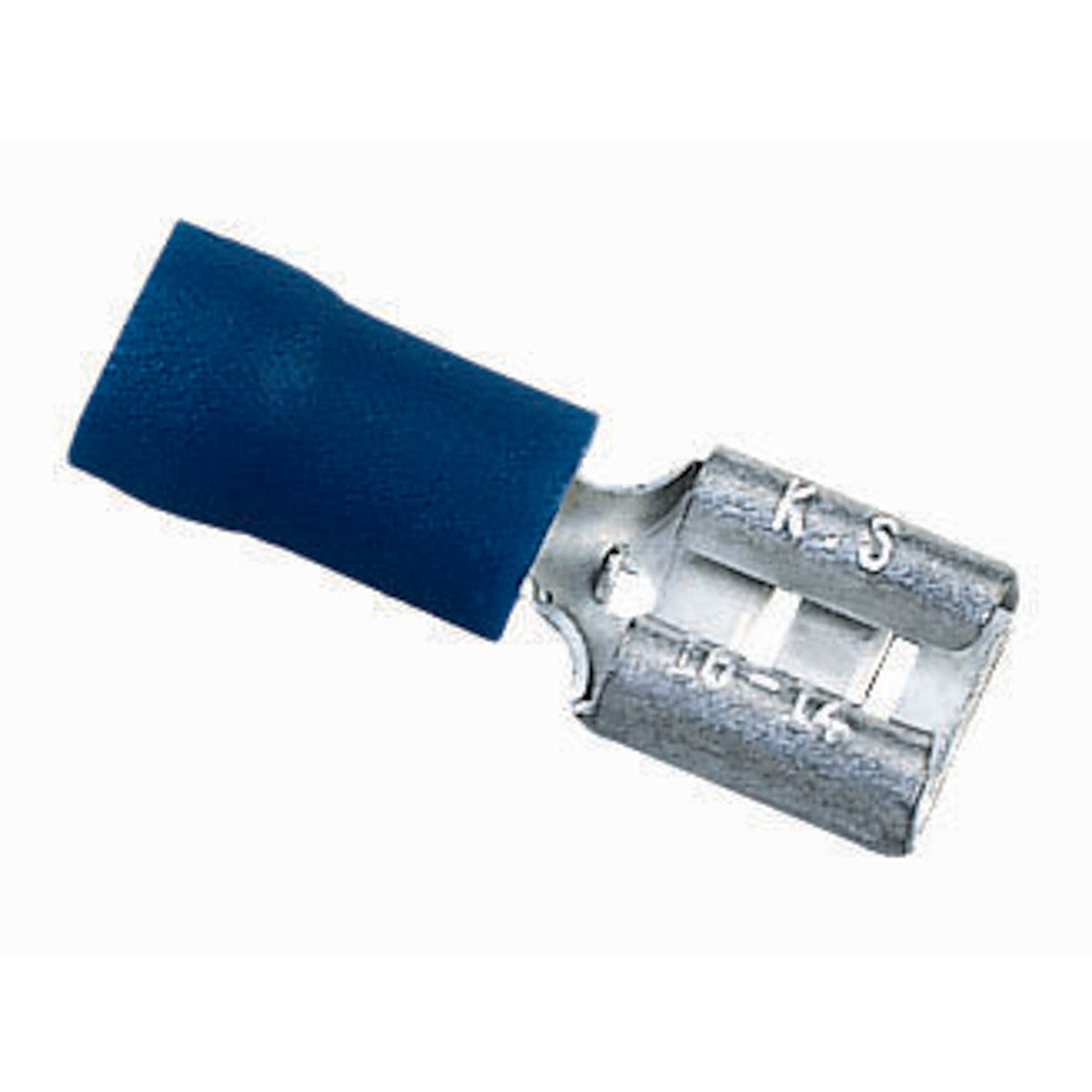

Ideal 83-9581 Disconnect Terminal Vinyl Insulated 16 - 14 AWG

Product Description

The IDEAL 83-9581 disconnect terminal features butted seam-construction that prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. This vinyl insulated terminal is color-coded for easy identification and made with tin-plated brass construction for corrosion resistance.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

The IDEAL 83-9581 disconnect terminal is vinyl insulated and features tin-plated brass construction for corrosion resistance.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9581
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9581
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.185 IN Diameter
• Material: Brass
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300
• Wire Size: 16 - 14 AWG
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Temperature Rating: 75 Deg C
• Barrel Type: Brazed/Butted Seam
• Wire Insulation Diameter: 0.185 Inch
• Maximum Temperature: 75°C
• Stud Size: 5.3 mm
• Terminal Type: Female Disconnect
• Termination Type: Crimp
• Wire Gauge Capacity: 14 AWG - 16 AWG
