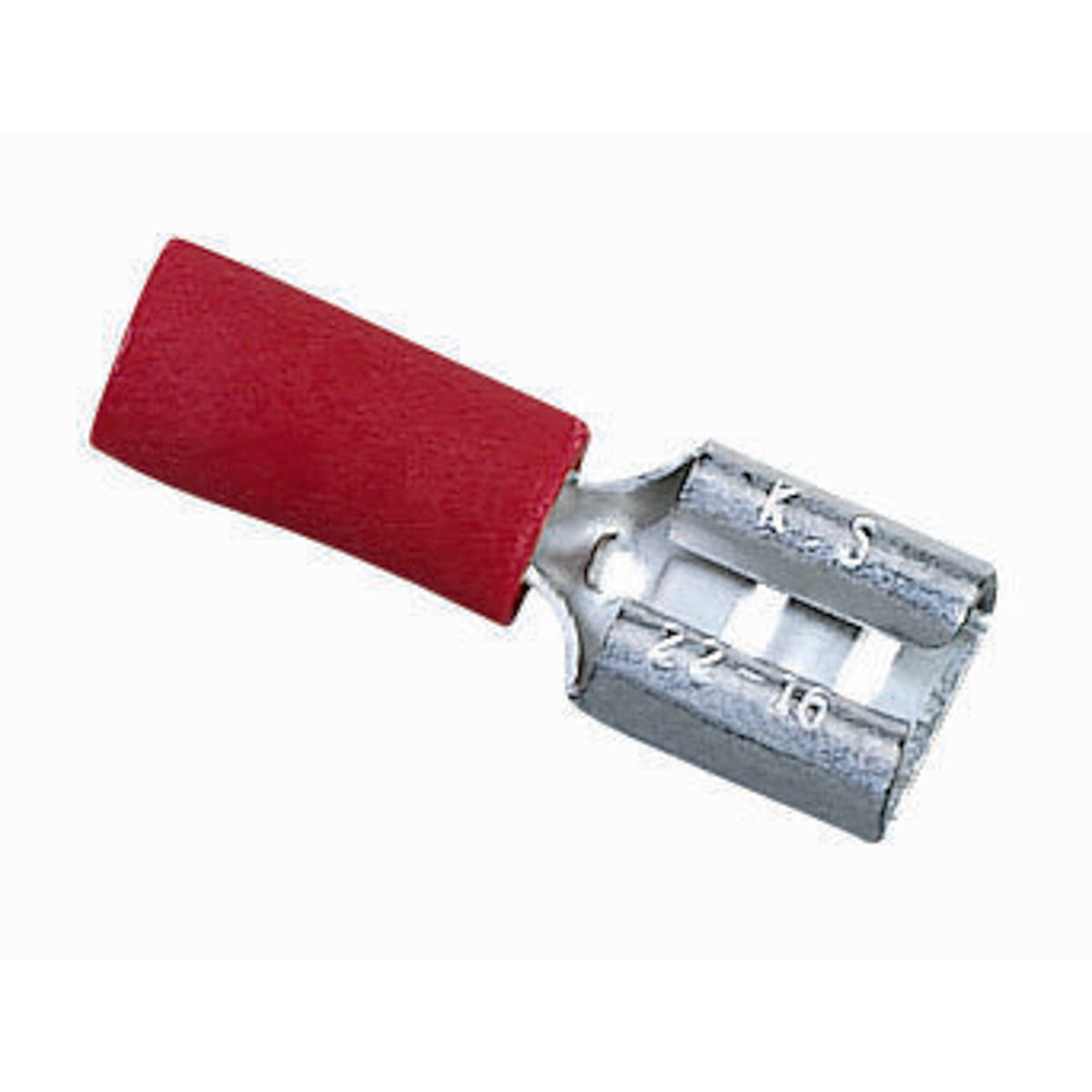

Ideal 83-9571 Disconnect Terminal Vinyl Insulated 22 - 18 AWG

Product Description

The IDEAL 83-9571 disconnect terminal is a vinyl insulated terminal designed for electrical systems. It accommodates wire sizes from 22 to 18 AWG and features butted seam construction to prevent splitting under pressure. Internal barrel serrations enhance wire grip and reduce electrical resistance. The shouldered barrel insulation ensures proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL disconnect terminal ensures secure and reliable connections in various electrical applications with its robust design and corrosion-resistant materials.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9571
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9571
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.150 IN Diameter
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 V
• Wire Size: 22 - 18 AWG
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Temperature Rating: 75 Deg C
• Approval: UL 774A, CUL
• Barrel Type: Brazed/Butted Seam
• Wire Insulation Diameter: 0.15 Inch
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 75°C
• Number of Poles: 1
• Stud Size: 1/4"
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Insulated: Yes
• Packaged Quantity: 25
• Product Line: Wire Termination
• Product Name: Vinyl Insulated Female Disconnect, 22-18 AWG, .250" X .032" Tab, Box OF 25
• Product Series: Electrical Crimp Terminals
• Product Type: Terminal Connector
• Connector Type: Quick Disconnect
• Package Type: Box
• Width: 0.3"
• Length: 0.8"
• Environmental Certification: RoHS
• Features: Brazed Seam, Butted Seam
