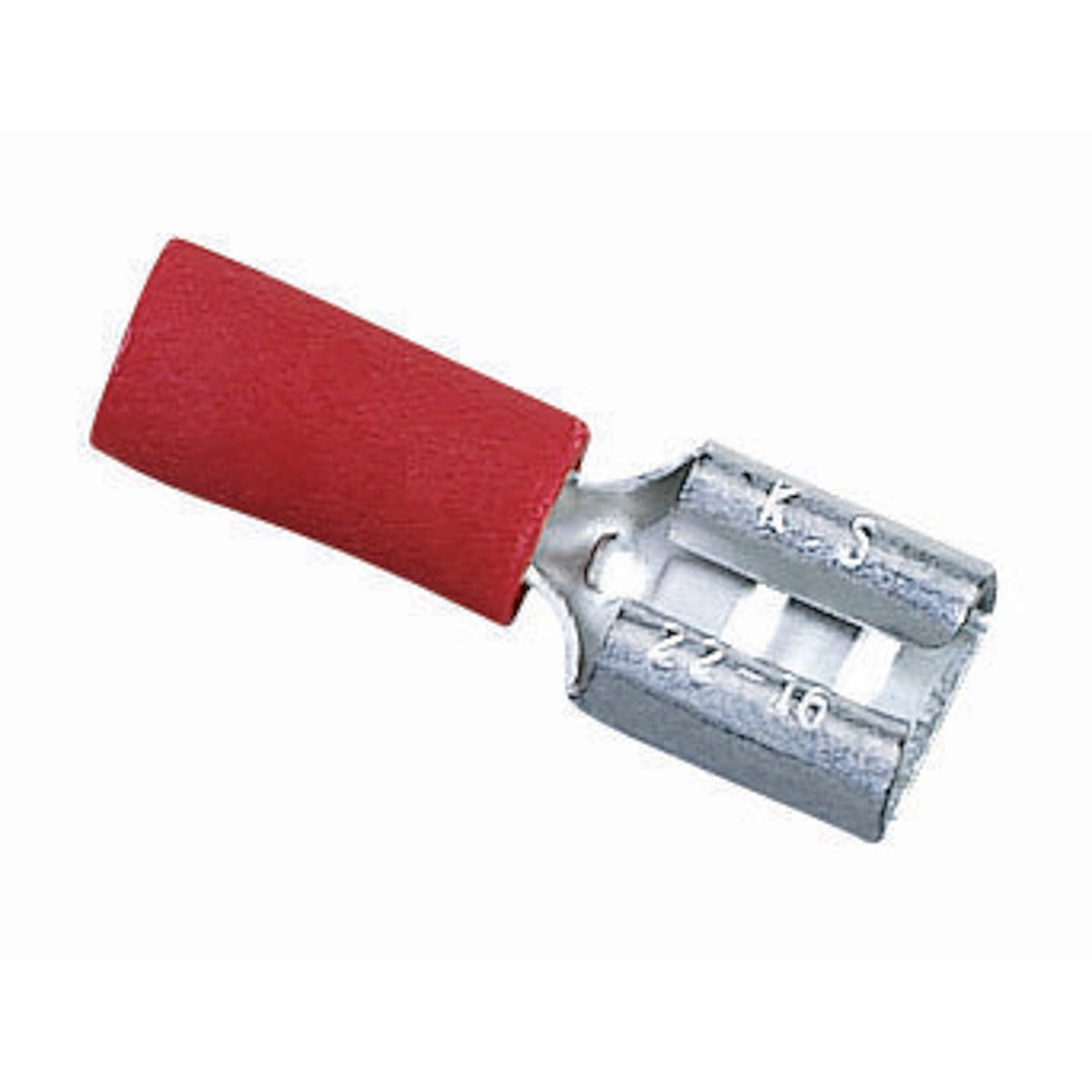

Ideal 83-9571 Disconnect Terminal Vinyl Insulated 22 - 18 AWG

Product Description

The IDEAL 83-9571 disconnect terminal is a vinyl insulated terminal designed for electrical systems. It accommodates wire sizes from 22 to 18 AWG and features butted seam-construction to prevent splitting under maximum pressure. Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance. The shouldered barrel insulation quickly positions the terminal for proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl insulated disconnect terminal ensures secure wire connections with corrosion resistance and easy crimping.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9571
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9571
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.150 IN Diameter
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.250 IN X 032 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 V
• Wire Size: 22 - 18 AWG
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Temperature Rating: 75 Deg C
• Approval: UL 774A, CUL
• Barrel Type: Brazed/Butted Seam
• Wire Insulation Diameter: 0.15 Inch
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 75°C
• Number of Poles: 1
• Stud Size: 1/4 in
• Terminal Type: Tab
• Wire Type: Solid, Stranded
• Insulated: Yes
• ADI Part Number: IL-839571
• Brand Name: IDEAL Industries
• Manufacturer Part Number: 83-9571
• Packaged Quantity: 25
• Product Line: Wire Termination
• Product Name: Vinyl Insulated Female Disconnect, 22-18 AWG, .250" X .032" Tab, Box OF 25
• Product Series: Electrical Crimp Terminals
• Product Type: Terminal Connector
• Connector Type: Quick Disconnect
• Package Type: Box
• Environmental Certification: RoHS
