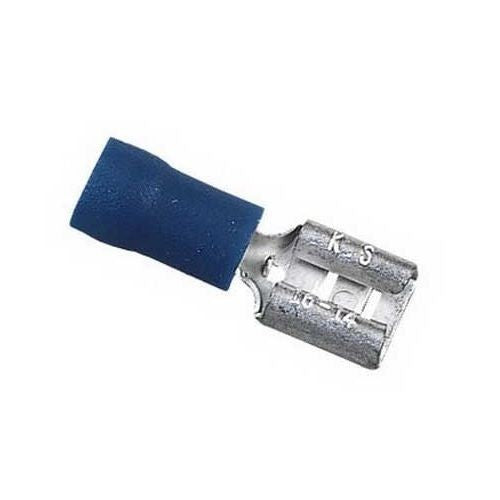

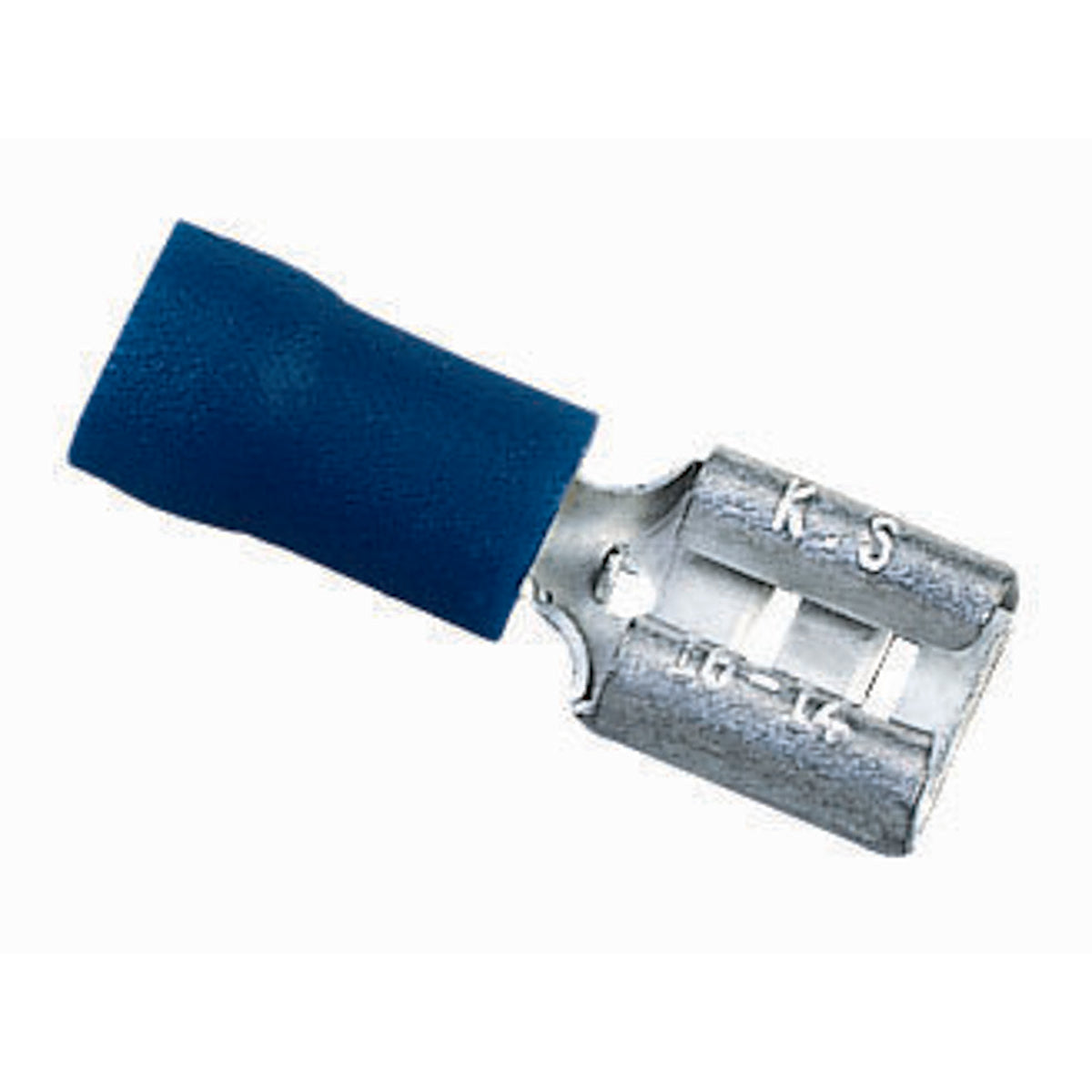

Ideal 83-9551 disconnect terminal vinyl insulated 16 - 14 AWG

Product Description

The IDEAL 83-9551 disconnect terminal is a vinyl insulated terminal designed for electrical systems. It accommodates wire sizes from 16 to 14 AWG and has a voltage rating of 300V. The tin-plated brass construction offers corrosion resistance, while the butted seam prevents splitting under maximum pressure. Internal barrel serrations grip wires tightly.

• Tin-plated brass construction for corrosion resistance
• Brazed or butted seams prevent splitting
• Funnel entry insulators
• Beveled barrel openings provide easy wire entry

Product Highlights

This IDEAL disconnect terminal ensures secure and reliable connections in various electrical applications. Color-coded insulation allows for easy identification.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9551
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9551
• Manufacturer: Ideal Industries
• Brand: IDEAL
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Insulation: 0.185 IN Diameter
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.187 IN X 020 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 V
• Wire Size: 16 - 14 AWG
• Pkg Quantity: 500.0
• Temperature Rating: 75 deg C
• Terminal Type: Crimp
• Type: Insulated
• Barrel Type: Butted/Brazed
• Tab Size: 0.187 in W x 0.02 in T
• Specifications: 0.185 in Maximum Insulation Dia
• Gender: Female
• Insulation Material: Vinyl
• Compatible Wire Size (AWG): 16-14
• Standards: UL Listed; RoHS Compliant; cUL Listed
• UNSPSC Code: 39121409
• Termination Method: Crimp
• Quantity: Pack of 25
• Maximum Rated Voltage: 600V
• Maximum Temperature: 167�F (75�C)
• Stud Size: 3/16" (0.48 cm)
• Wire Type: Solid, Stranded
• Insulated: Yes
