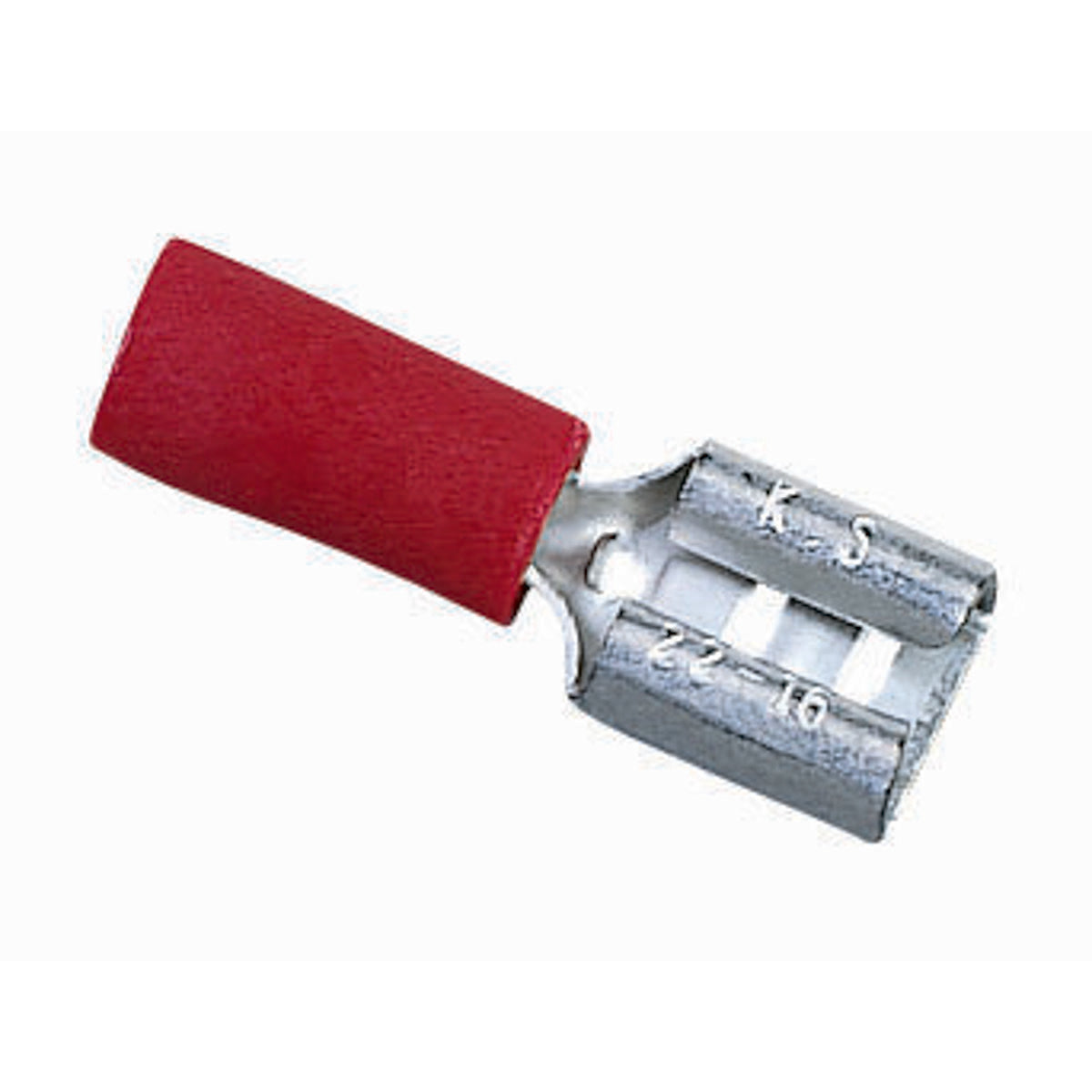

Ideal 83-9541 Disconnect Terminal Vinyl Insulated Wire Size 22 - 18 AWG Voltage Rating 300 V

Product Description

The Ideal 83-9541 is a vinyl insulated disconnect terminal designed for wire sizes ranging from twenty-two to eighteen American Wire Gauge (AWG). It has a voltage rating of three hundred volts. This terminal is made from brass material with a tin-plated finish, ensuring reliable performance and resistance to corrosion.

• Butted seam construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out
• Expanded insulation entry accommodates a wide variety of insulation diameters

Product Highlights

This product features a shouldered barrel design that helps in aligning the terminal correctly during crimping. The insulation has a diameter of zero point one five inches and a temperature rating of seventy-five degrees Celsius. The terminal has a female connection with dimensions of zero point one eight-seven inches by zero point two inches for the tab size.

Product Information

Standard Information

• Manufacturer: Ideal Industries
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9541
• Finish: Tin-Plated
• Material: Brass
• Connection: Female
• Voltage Rating: 300 VAC
• Wire Size: 22 - 18 AWG
• Insulation Diameter: 0.150 inches
• Temperature Rating: 75 degrees Celsius
