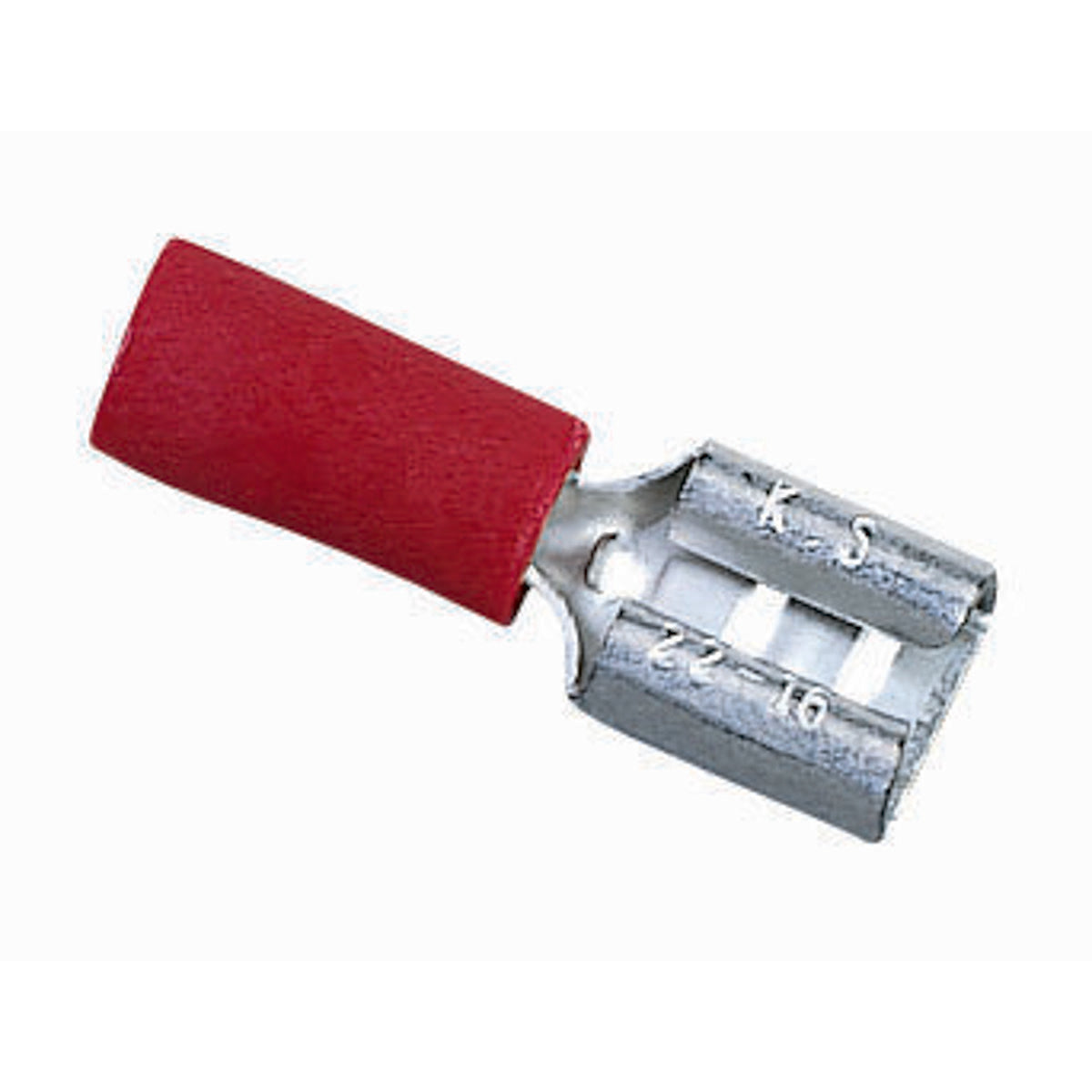

Ideal 83-9541 disconnect terminal vinyl insulated 22 - 18 AWG

Product Description

The IDEAL 83-9541 disconnect terminal is a vinyl insulated terminal designed for wire sizes 22 to 18 AWG. It features tin-plated brass construction for corrosion resistance and internal barrel serrations that grip wires tightly. The shouldered barrel insulation quickly positions the terminal for proper crimping. It is CUL Listed and RoHS compliant.

• Butted seam-construction prevents splitting under maximum pressure.
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance.
• Tin-plated brass construction for corrosion resistance.

Product Highlights

Vinyl insulated disconnect terminal with tin-plated brass construction, ideal for electrical systems requiring secure and corrosion-resistant connections.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9541
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9541
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Finish: Tin-Plated
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation; Tab Size: 0.187 IN X 020 IN; Temperature Rating: 75 DEG C
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Insulated
• Voltage Rating: 300 VAC
• Wire Size: 22 - 18 AWG
• MPN: 83-9541
• Barrel Type: Shouldered
• Tab Size: 0.187 x 0.02 in
• Temperature Rating: 75 deg C
• Terminal Type: Crimp
• Conductor Size: 22 to 18 AWG
