Ideal 83-9471 Disconnect Terminal Non-Insulated 22 - 18 AWG

Product Description

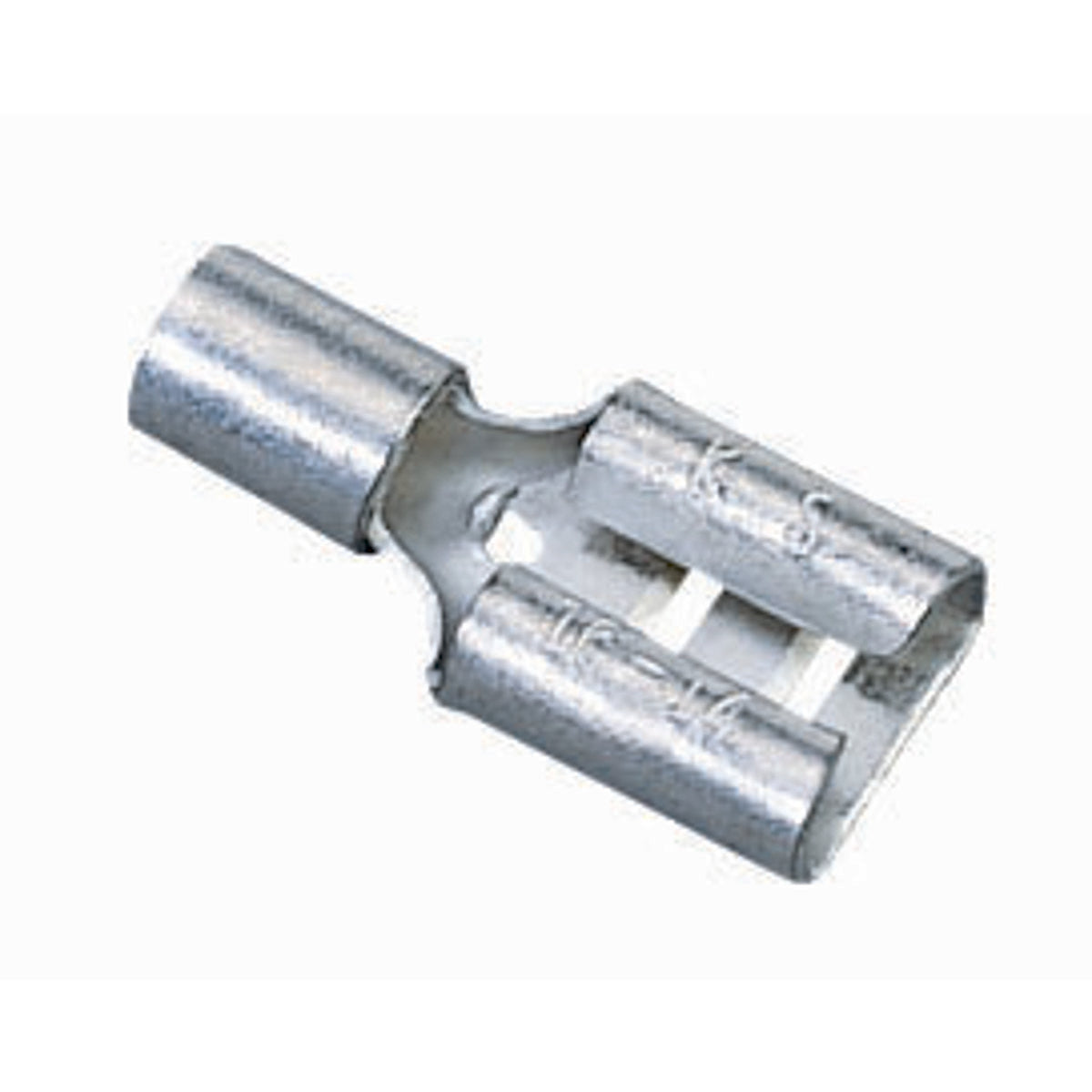

The IDEAL 83-9471 disconnect terminal is a non-insulated female connector designed for electrical connections. Constructed from tin-plated brass for corrosion resistance, it features internal barrel serrations to enhance wire grip and reduce electrical resistance. The butted seam construction prevents splitting under maximum pressure. Accommodates wire sizes from 22 to 18 AWG and has a voltage rating of 300V.

• Butted seam construction prevents splitting under maximum pressure.
• Internal barrel serrations grip wires tightly.
• Tin-plated brass construction for corrosion resistance.

Product Highlights

This non-insulated disconnect terminal ensures secure and reliable electrical connections for a variety of applications.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9471
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9471
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Connection: Female
• Material: Brass
• Special Features: Stud Size: 0.250 IN X 032 IN; Temperature Rating: 105 DEG C
• Standard: RoHS
• Item Type: Non-Insulated
• Voltage Rating: 300
• Wire Size: 22 - 18 AWG
• Temperature Rating: 105 DEG C
