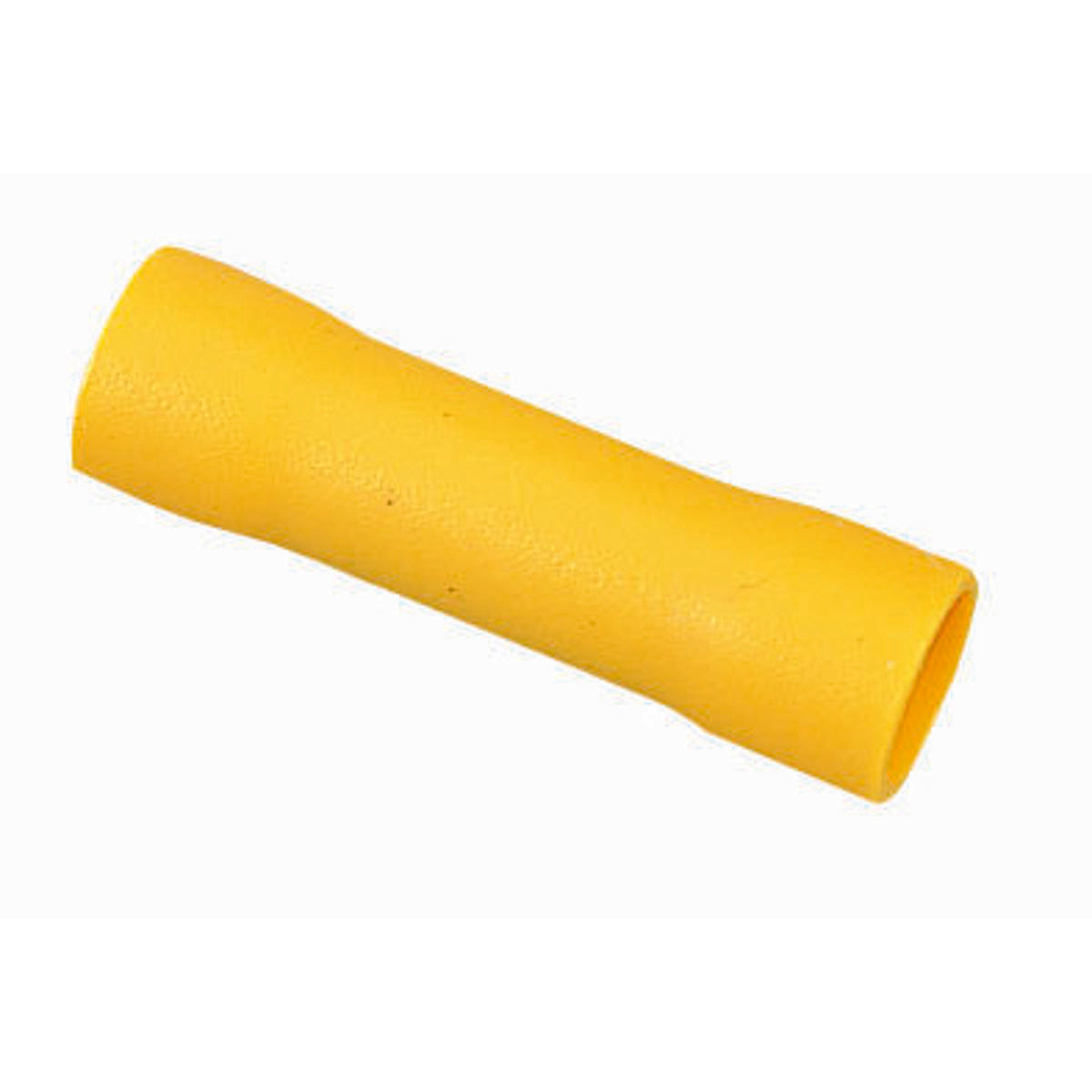

Ideal 83-9301 splice terminal vinyl butt 12 to 10 AWG

Product Description

The IDEAL 83-9301 splice terminal is a vinyl butt connector designed for 12 to 10 AWG wires. It features tin-plated brass construction for corrosion resistance and internal barrel serrations that grip wires tightly. Butted seam construction prevents splitting under maximum pressure. The shouldered barrel insulation helps with proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This vinyl butt splice terminal ensures secure and corrosion-resistant connections for electrical systems.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9301
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9301
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Finish: Tin Plated
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Butt
• Size: 12 To 10
• Temperature Rating: 75 DEG C
• Voltage Rating: 600 V Max
• Length: 1.043 Inch
• Maximum Insulation Diameter: 0.248 Inch
• Conductor Size: 12 to 10 AWG
• Insulation Type: Vinyl Insulated
• Type: Vinyl Butt
• Brand Name: Ideal
• AWG Min: 12 AWG
• Conductor Max: 10 AWG
