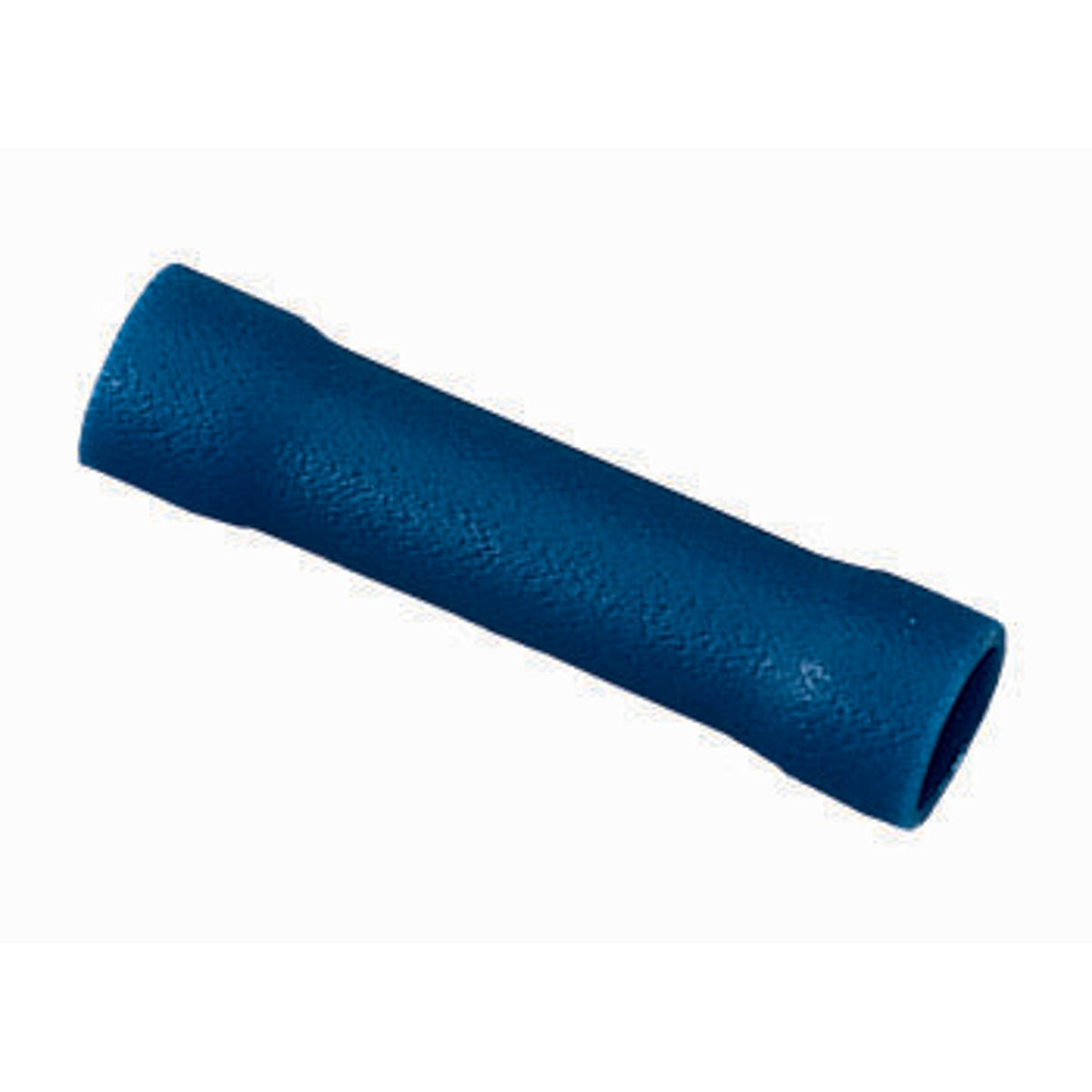

Ideal 83-9291 Splice Terminal Vinyl Butt 16 To 14 AWG

Product Description

The IDEAL 83-9291 splice terminal is a vinyl butt connector designed for 16 to 14 AWG wires. It features butted seam construction to prevent splitting under maximum pressure and internal barrel serrations that grip wires tightly. Tin-plated brass construction provides corrosion resistance. Shouldered barrel insulation allows for proper crimping.

• Butted seam-construction prevents splitting under maximum pressure
• Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
• Tin-plated brass construction for corrosion resistance

Product Highlights

This IDEAL vinyl butt splice terminal ensures secure and corrosion-resistant connections for electrical systems.

Product Information

Standard Information

• Brand: IDEAL
• Manufacturer Part Number: 83-9291
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: 83-9291
• Manufacturer: Ideal Industries
• Brand: Ideal
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Finish: Tin-plated
• Material: Brass
• Special Features: Features: Tin-Plated Brass Construction For Corrosion Resistance; Brazed Or Butted Seams Prevent Splitting; Funnel Entry Insulators; Beveled Barrel Openings Provide Easy Wire Entry; Clearly Marked Wire And Stud Ranges; Color-Coded Insulation
• Standard: CUL Listed, RoHS
• Item Type: Vinyl Butt
• Size: 16 To 14 AWG
• Temperature Rating: 75 DEG C
• Voltage Rating: 600 V Max
• Conductor Size: 16 to 14 AWG
• Length: 0.986 in
• Barrel Type: Shouldered Barrel
• Voltage: 600 Vac
• Plating: Tin Plated
• Type: Vinyl Butt
• Termination Method: Crimp
• Number of Ports: 2
• Maximum Rated Voltage: 600V
• Maximum Temperature (C): 75°C
• Maximum Wire Gauge: 16 AWG
• Minimum Wire Gauge: 14 AWG
• Stud Size: N/A
• Terminal Type: Butt
• Wire Type: Solid, Stranded
• Insulated: Yes
